Front Stabilizer Bar: Components

Fig 1: Front Suspension Member Replacement Components With Torque Specifications (1 Of 4)
G05400874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Front Shock Absorber With Coil Spring Replacement Components With Torque Specifications (1 Of 3)
G05400875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

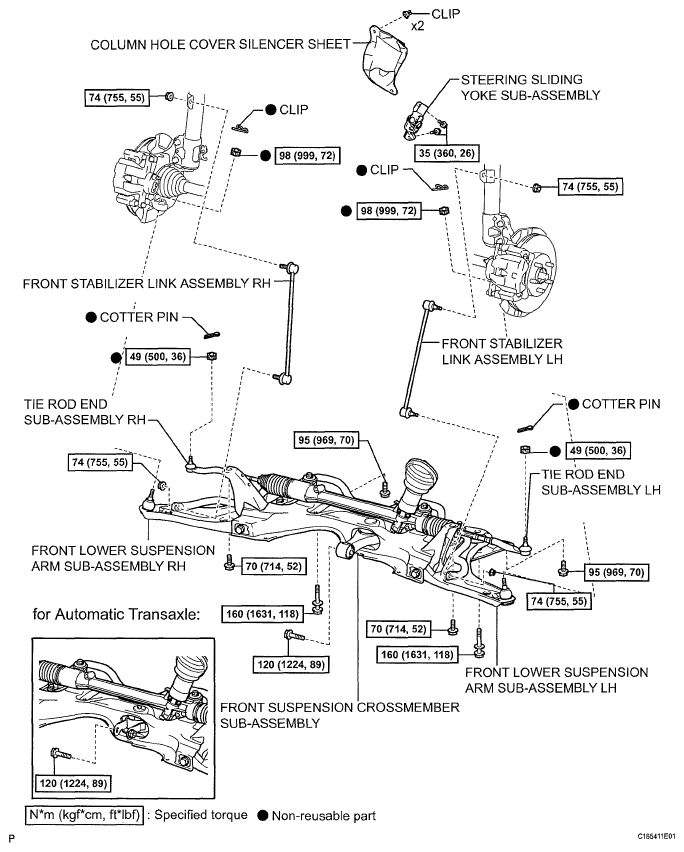

Fig 3: Front Stabilizer Bar Replacement Components With Torque Specifications (3 Of 4)
G05400938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

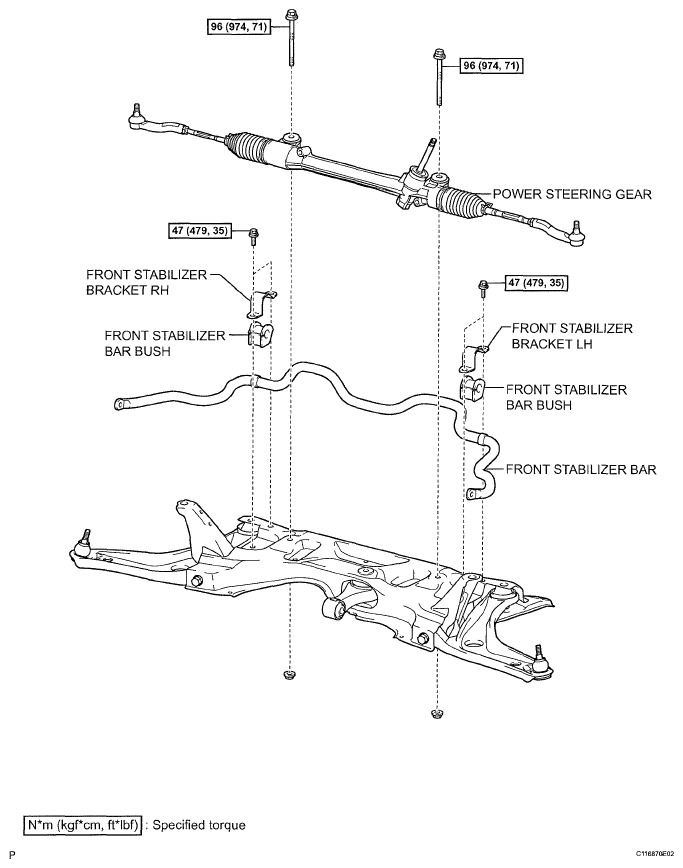

Fig 4: Front Stabilizer Bar Replacement Components With Torque Specifications (4 Of 4)
G05400939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
