Power Mirror Control System: Inspection: Inspection

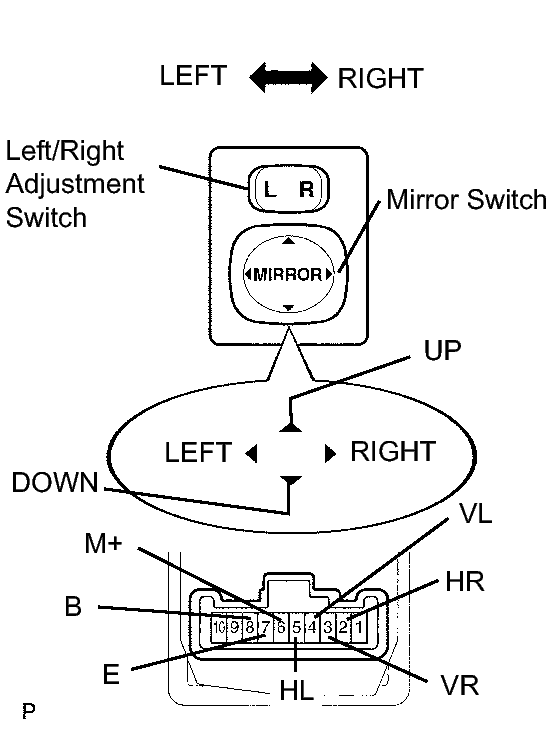

- INSPECT OUTER MIRROR SWITCH ASSEMBLY
- Select L on the left/right adjustment switch:
Measure the resistance of the switch.
Standard resistance
Tester Connection Switch Condition Specified Condition 4 (VL) - 8 (B)
6 (M+) - 7 (E)UP Below 1 Ω 4 (VL) - 7 (E)
6 (M+) - 8 (B)DOWN Below 1 Ω 5 (HL) - 8 (B)
6 (M+) - 7 (E)LEFT Below 1 Ω 5 (HL) - 7 (E)
6 (M+) - 8 (B)RIGHT Below 1 Ω If the result is not as specified, replace the switch assembly.
- Select R on the left/right adjustment switch: Measure the resistance of the switch.
Standard resistance
Tester Connection Switch Condition Specified Condition 3 (VR) - 8 (B)
6 (M+) - 7 (E)UP Below 1 Ω 3 (VR) - 7 (E)
6 (M+) - 8 (B)DOWN Below 1 Ω 2 (HR) - 8 (B)
6 (M+) - 7 (E)LEFT Below 1 Ω 2 (HR) - 7 (E)
6 (M+) - 8 (B)RIGHT Below 1 Ω If the result is not as specified, replace the switch assembly.
- Select L on the left/right adjustment switch:
- INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the mirror connector.
- Apply battery voltage to the mirror and check the operation of the mirror.
OK
Measurement Condition Mirror Condition Battery positive (+) → 3 (MV)
Battery negative (-) → 4 (COM)Turns upward (A) Battery positive (+) → 4 (COM)
Battery negative (-) → 3 (MV)Turns downward (B) Battery positive (+) → 5 (MH)
Battery negative (-) → 4 (COM)Turns left (C) Battery positive (+) → 4 (COM)
Battery negative (-) → 5 (MH)Turns right (D) If the result is not as specified, replace the mirror assembly.
- INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the mirror connector.
- Apply battery voltage to the mirror and check the operation of the mirror.
OK
Measurement Condition Mirror Condition Battery positive (+) → 3 (MV)
Battery negative (-) → 4 (COM)Turns upward (A) Battery positive (+) → 4 (COM)
Battery negative (-) → 3 (MV)Turns downward (B) Battery positive (+) → 5 (MH)
Battery negative (-) → 4 (COM)Turns left (C) Battery positive (+) → 4 (COM)
Battery negative (-) → 5 (MH)Turns right (D) If the result is not as specified, replace the mirror assembly.
