Back Door Opener: Notes

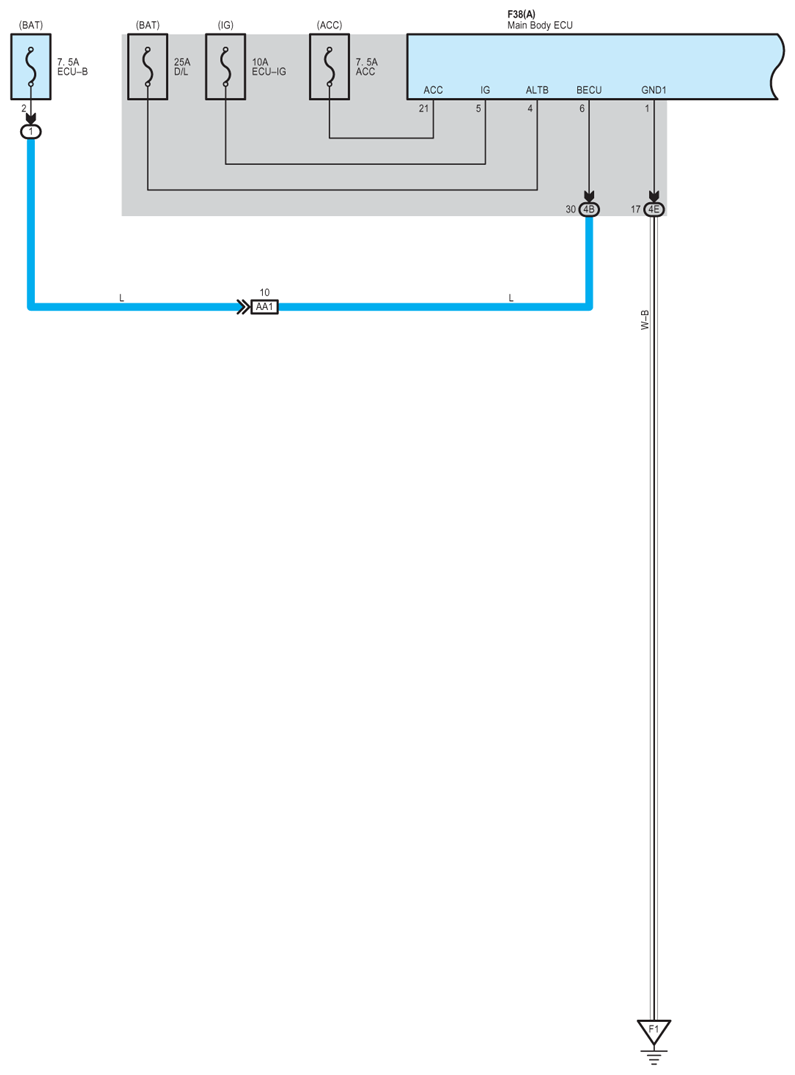

Fig 1: Back Door Opener - Circuit Diagram (1 Of 4)
G07571183Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

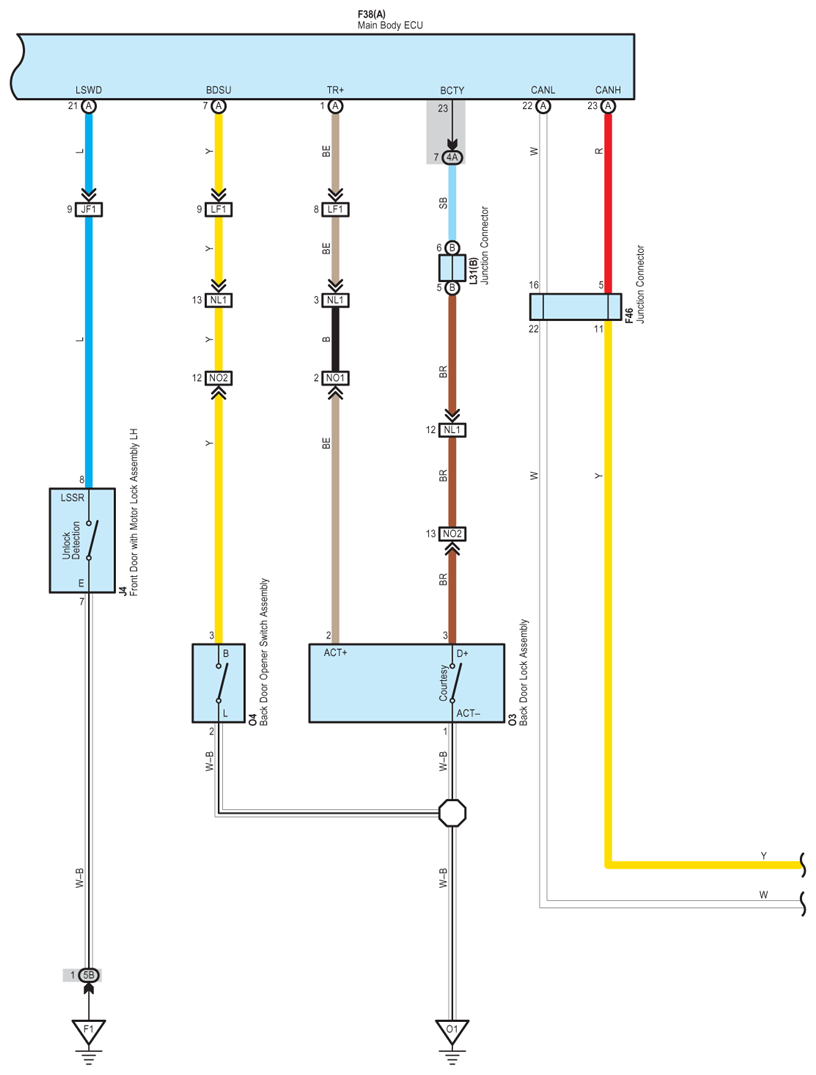

Fig 2: Back Door Opener - Circuit Diagram (2 Of 4)
G07571184Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

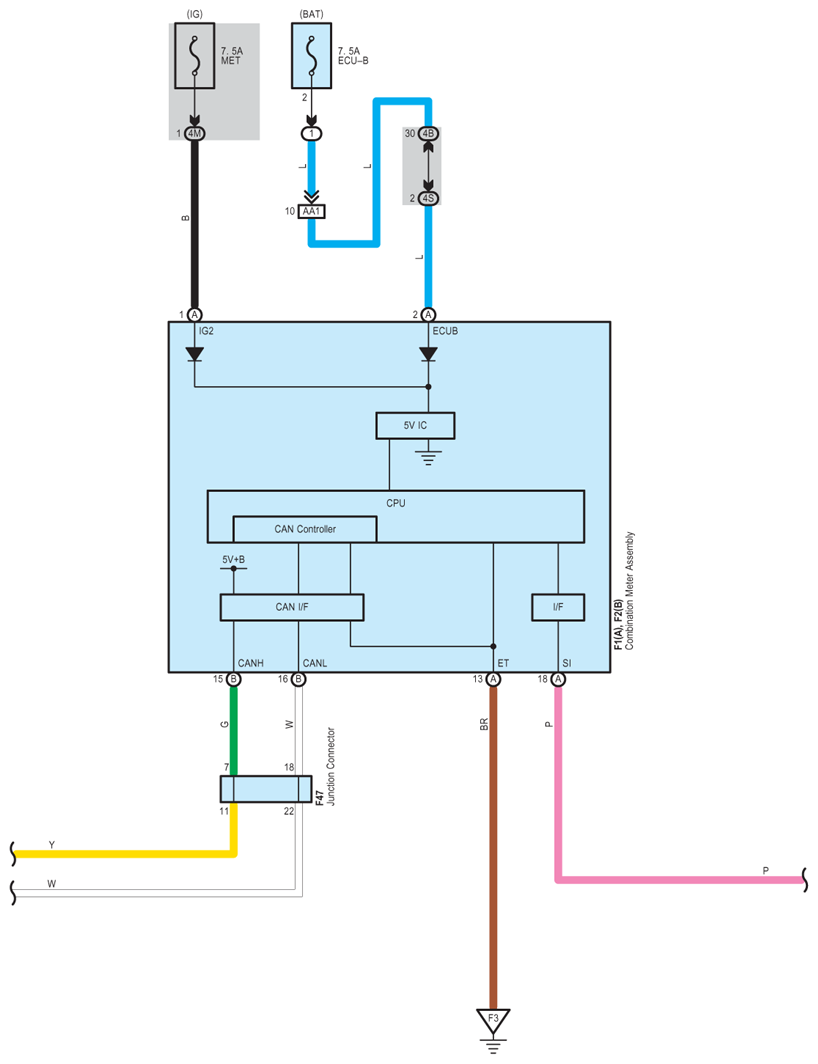

Fig 3: Back Door Opener - Circuit Diagram (3 Of 4)
G07571185Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

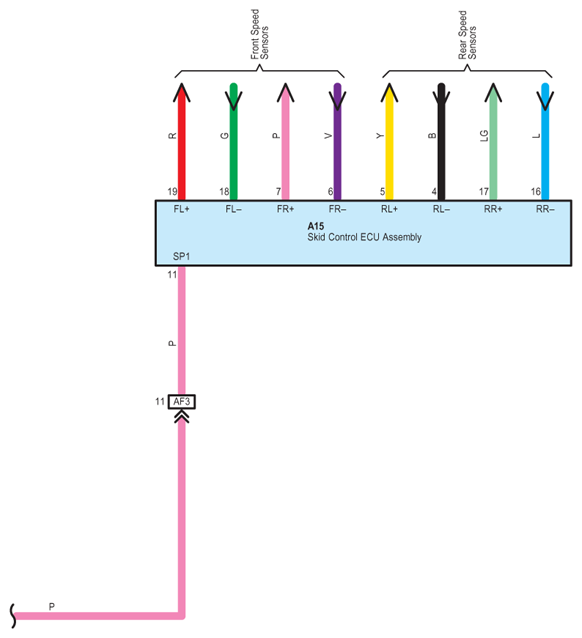

Fig 4: Back Door Opener - Circuit Diagram (4 Of 4)
G07571186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
