Passive Arming On/Off Selection. Entry Delay Time Selection

DISARM the Security system before proceeding below by using the remote control or key as described inDISARMING THE SECURITY (except PASSIVE DISARMING)  .

Fig 1: Passive Arming ON/OFF Selection, Entry Delay Time Selection Procedure (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

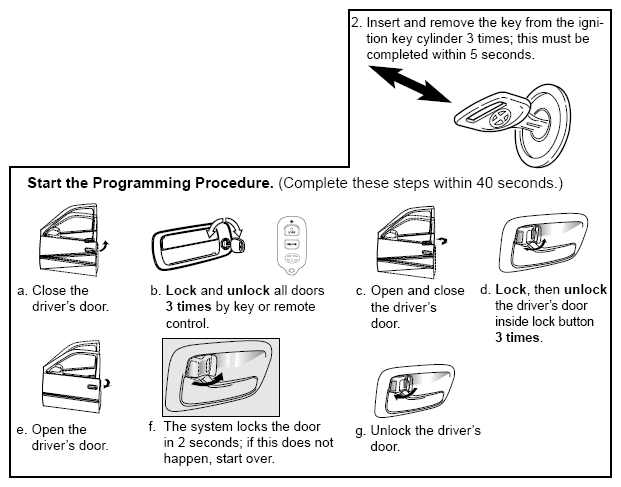

Fig 2: Passive Arming ON/OFF Selection, Entry Delay Time Selection Procedure (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

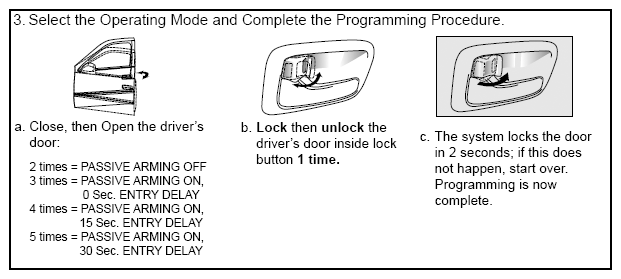

Fig 3: Passive Arming ON/OFF Selection, Entry Delay Time Selection Procedure (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
