Back Door Opener: Notes
WARNING:
This page is about a different car, the 2010 Scion xB. However, it is still accessible from the selected car via links, so may be relevant.

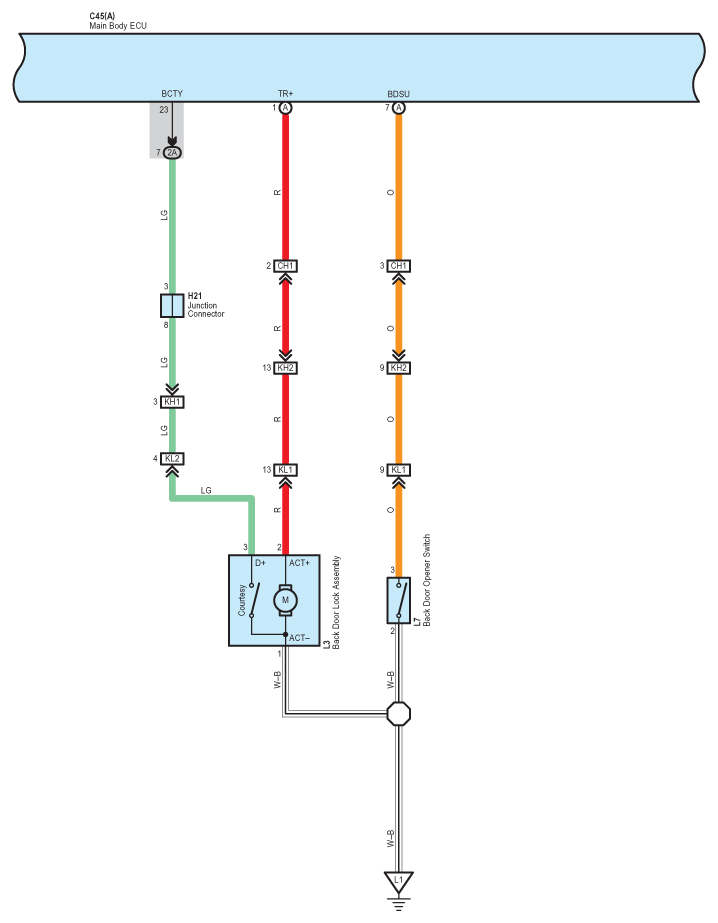

Fig 1: Back Door Opener - Circuit Diagram (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

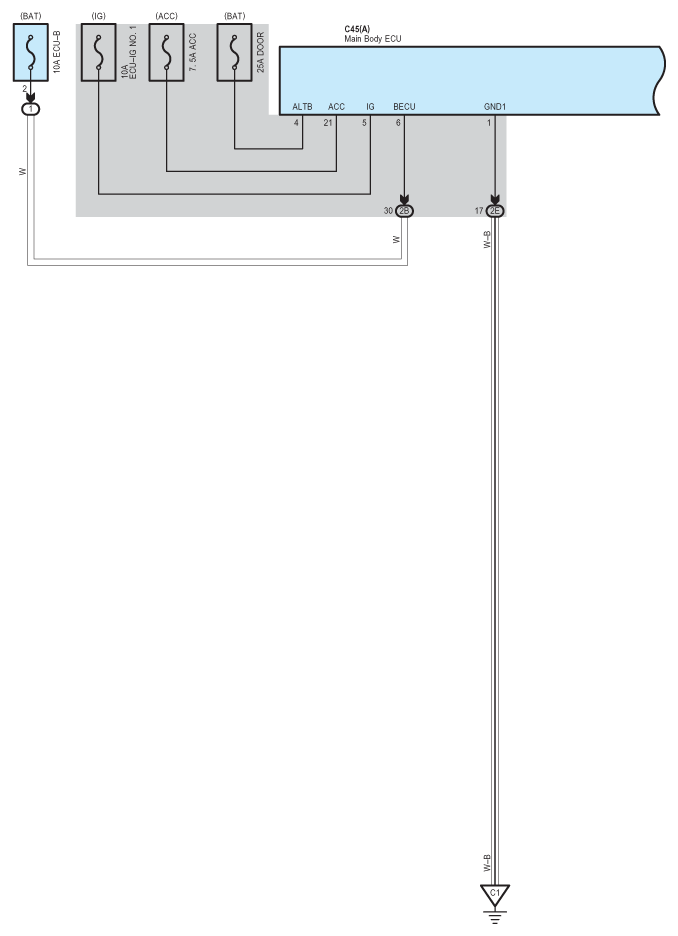

Fig 2: Back Door Opener - Circuit Diagram (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

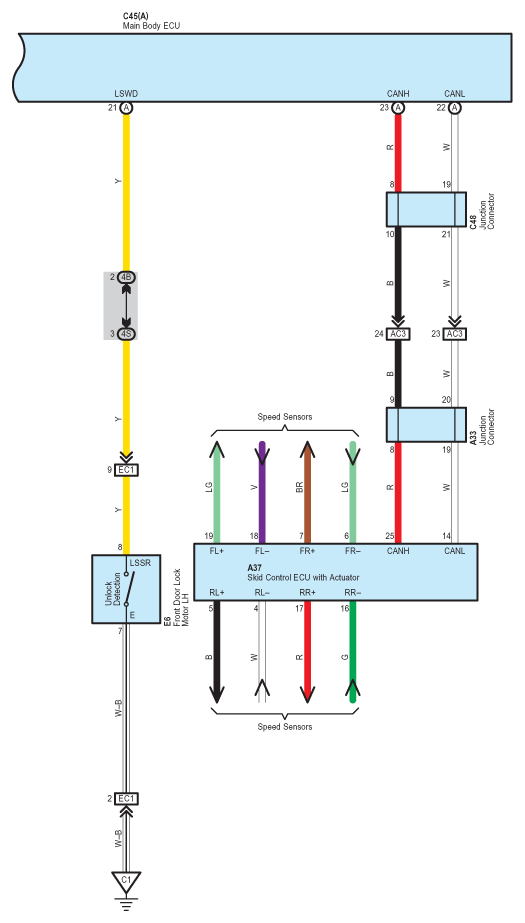

Fig 3: Back Door Opener - Circuit Diagram (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
