Installation (from 10/2010)

DOOR LOCK: DOOR CONTROL RECEIVER: INSTALLATION

1. INSTALL DOOR CONTROL RECEIVER

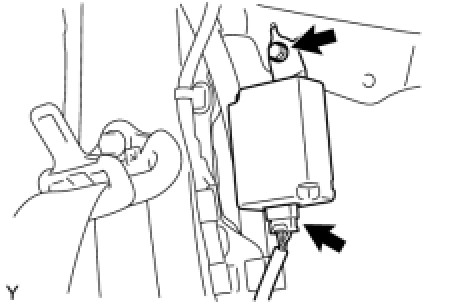

(a) Install the door control receiver with the bolt.





(b) Connect the connector.

2. INSTALL ROOF SIDE GARNISH INNER ASSEMBLY RH Installation (from 10/2010)

3. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH Installation (from 10/2010)

4. INSTALL LUGGAGE HOLD BELT STRIKER ASSEMBLY Installation (from 10/2010)

5. INSTALL REAR NO. 1 SEAT BELT OUTER ASSEMBLY RH Installation (from 10/2010)

6. INSTALL REAR DECK TRIM COVER Installation (from 10/2010)

7. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH Installation (from 10/2010)

8. INSTALL REAR DOOR SCUFF PLATE RH Installation (from 10/2010)

9. INSTALL REAR SEATBACK ASSEMBLY RH Installation

10. INSTALL REAR SEAT CUSHION ASSEMBLY Installation

11. INSTALL REAR DECK FLOOR BOX Installation (from 10/2010)

12. INSTALL DECK FLOOR BOX RH Installation (from 10/2010)

13. INSTALL REAR FLOOR CARPET ASSEMBLY Installation (from 10/2010)
