Torque Specifications

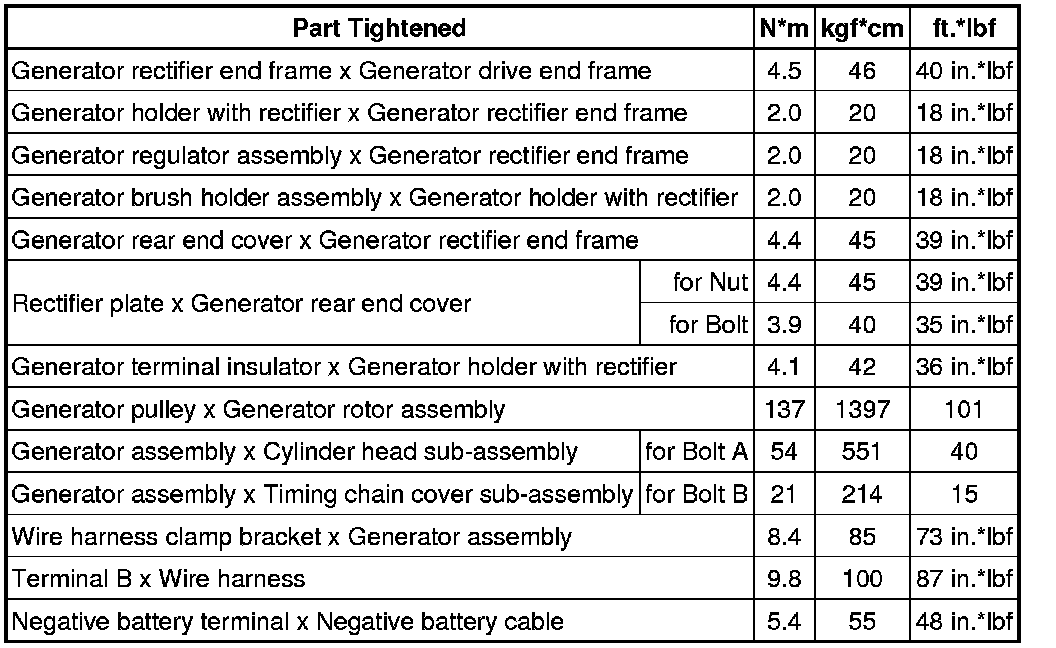

SPECIFICATIONS: 1NR-FE BATTERY / CHARGING: TORQUE SPECIFICATIONS
for 80A Type
for 100A Type
