Service Data

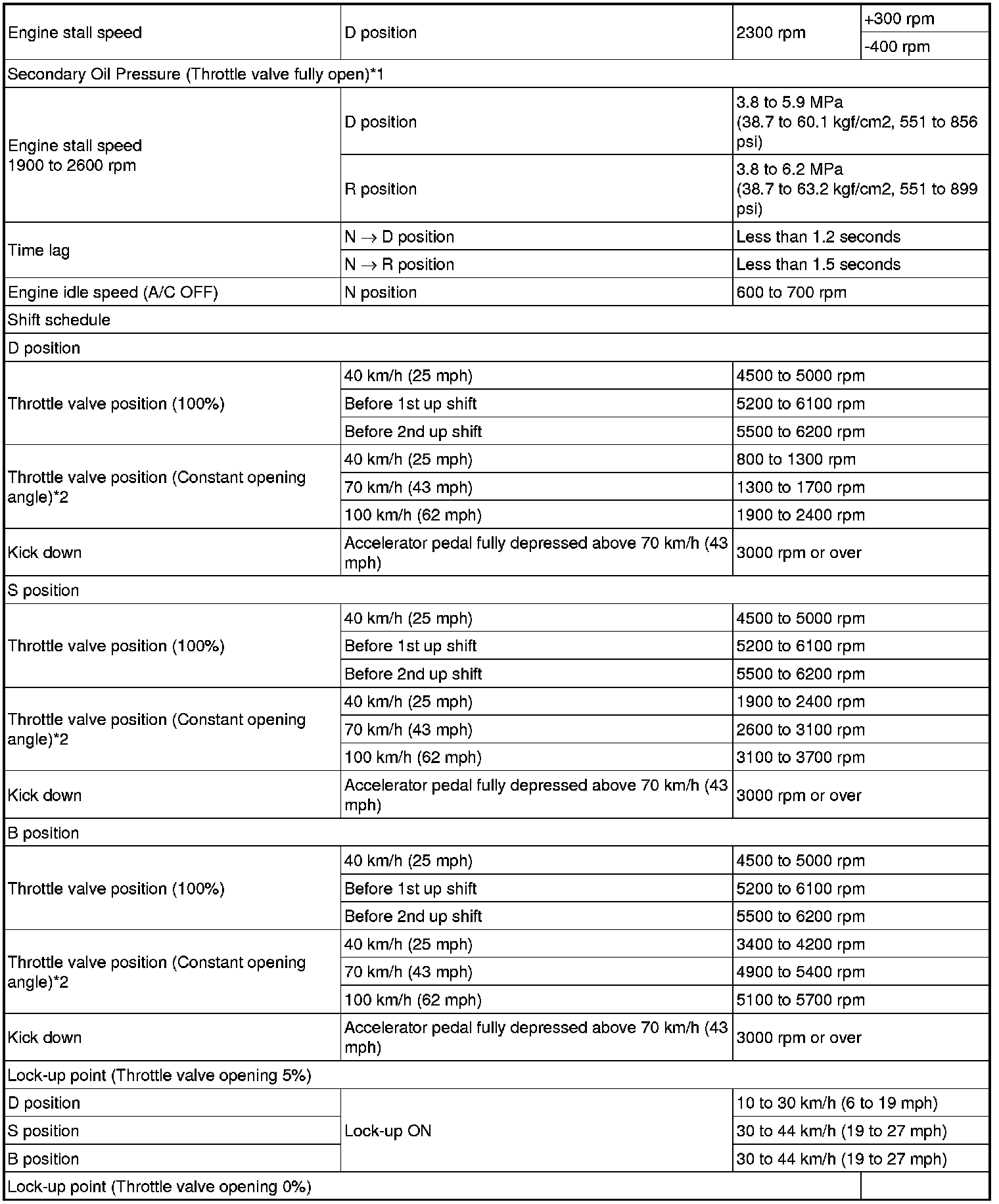

SPECIFICATIONS: K41B CVT: SERVICE DATA









*1: Connect terminals 13 (TC) and 4 (GC) of the DLC3 when measuring the fluid pressure.

*2: Depress the accelerator pedal at a consistent angle to maintain the specified vehicle speed.
