Power Window Regulator Motor: Components: Illustration

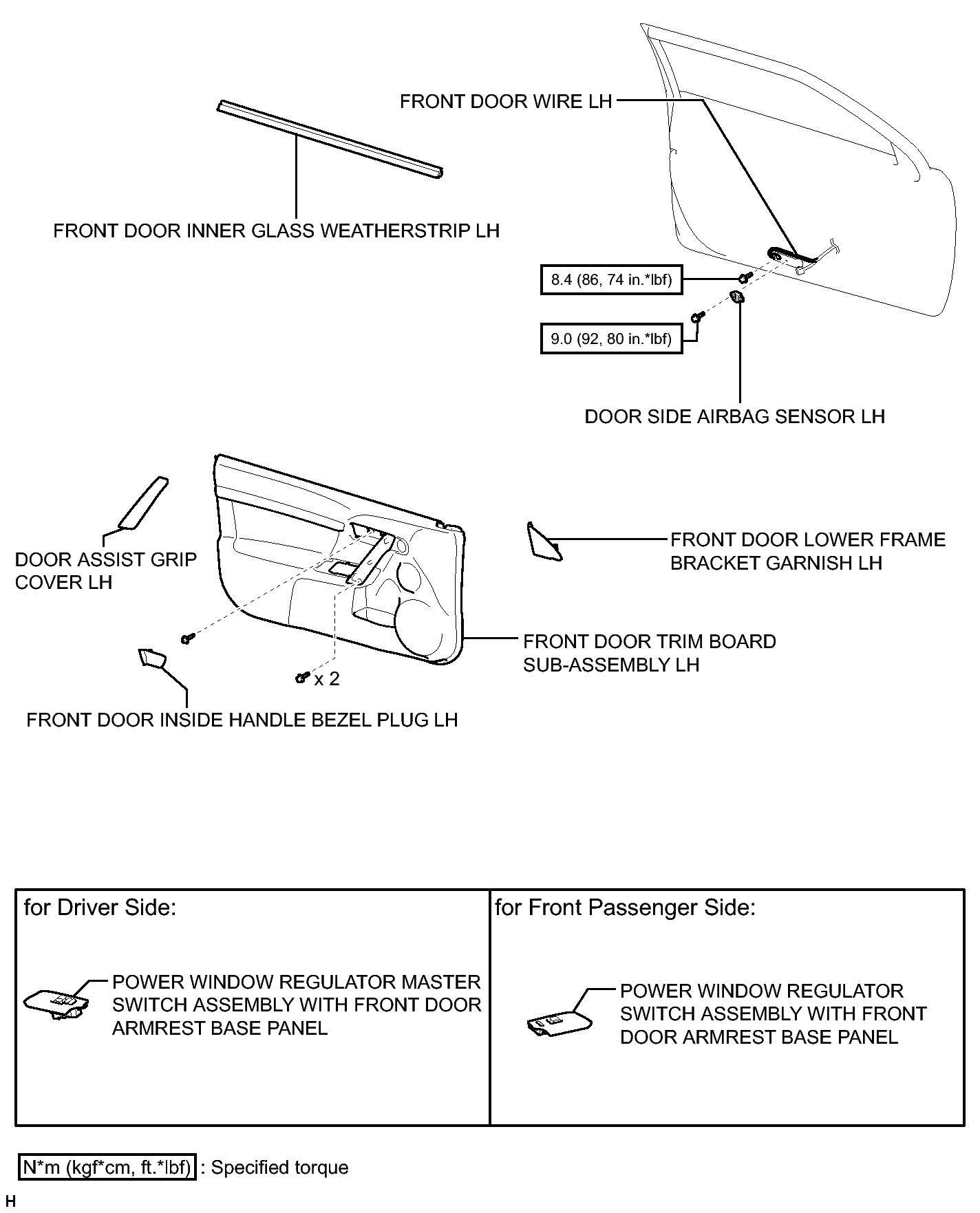

Fig 1: Identifying Power Window Regulator Motor Replacement Components With Torque Specifications (1 Of 2)
GTY311581Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

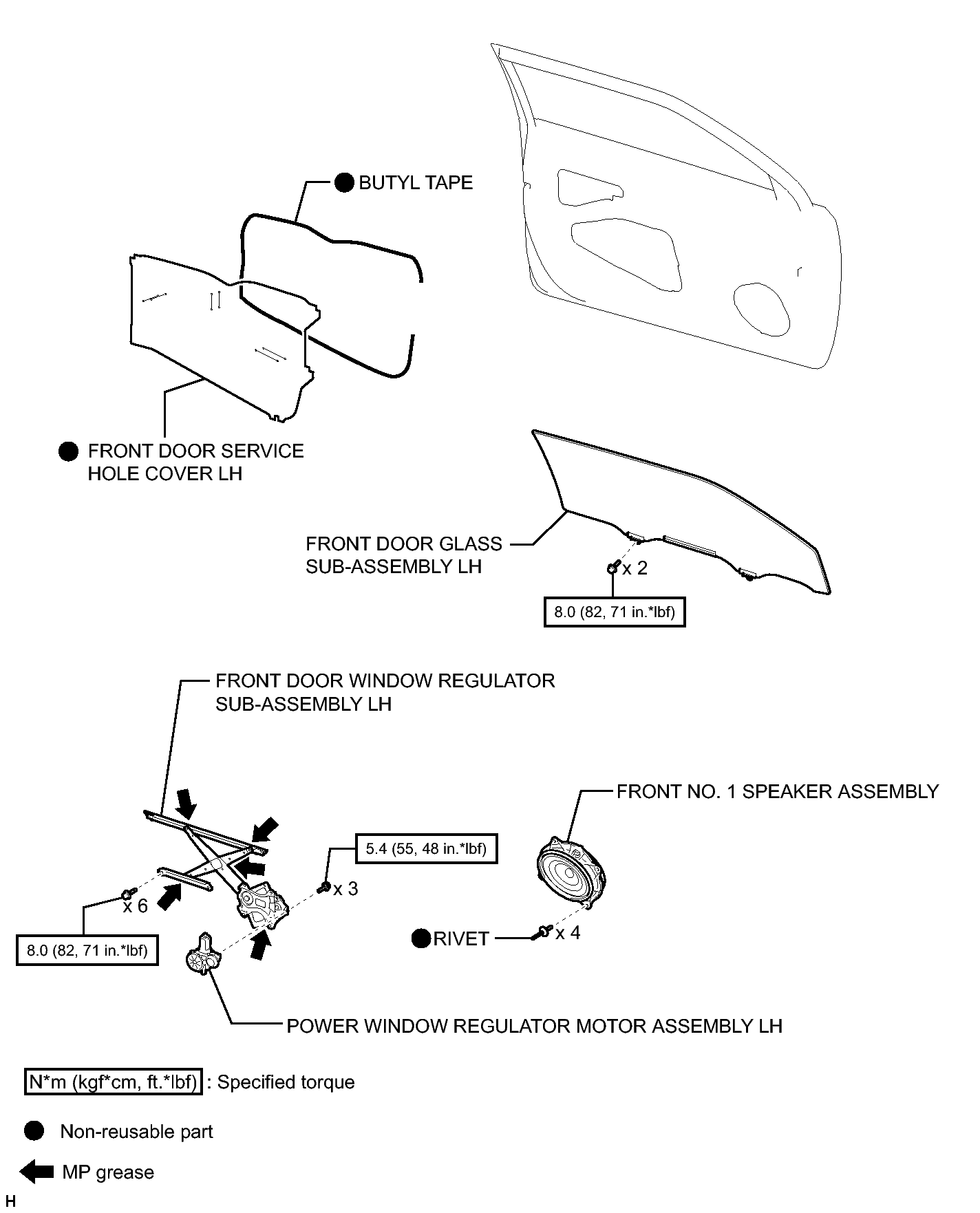

Fig 1: Identifying Power Window Regulator Motor Replacement Components With Torque Specifications (2 Of 2)
GTY310234Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
