Valve Body Assembly: Components: Illustration

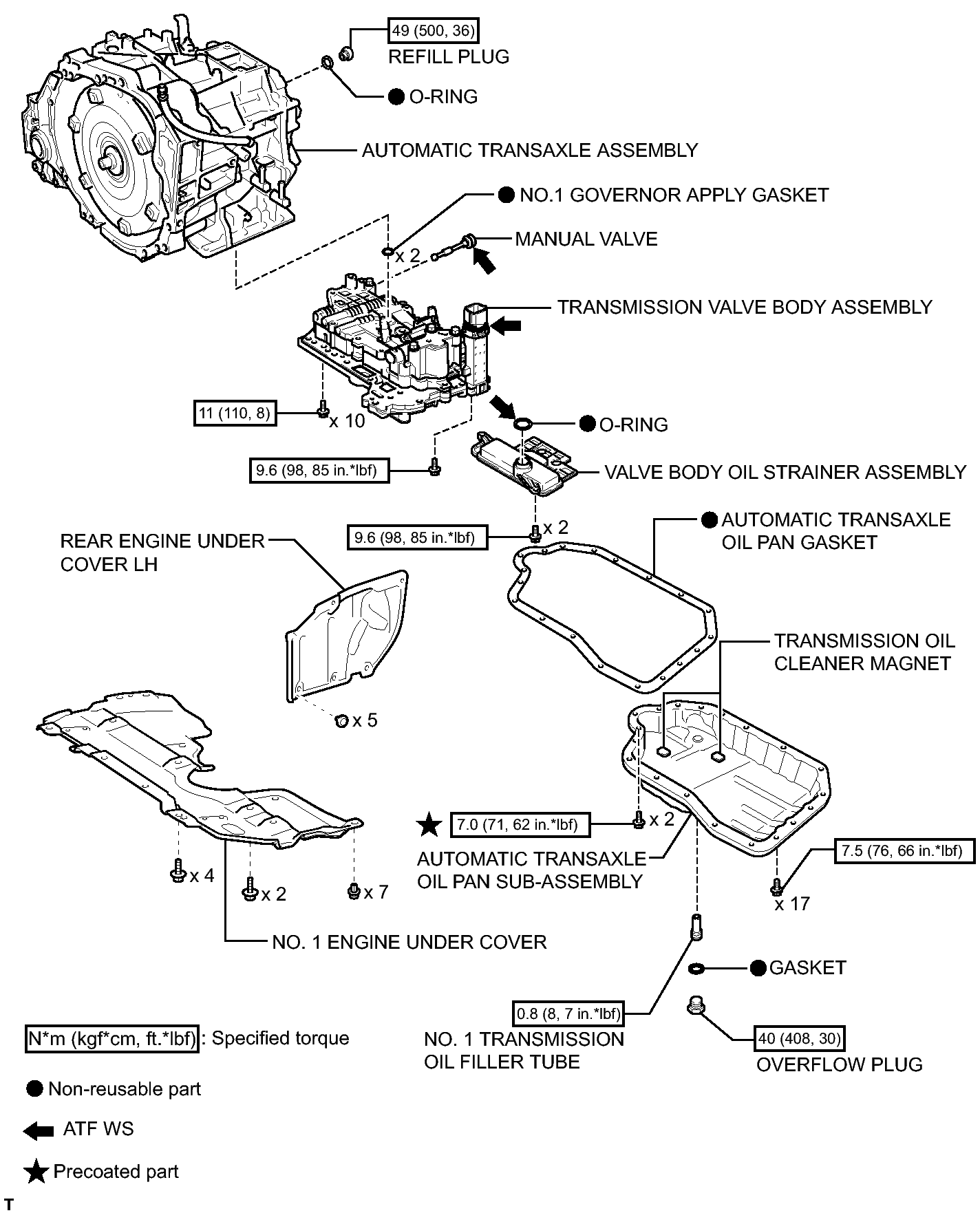

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications (1 Of 3)
GTY312272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

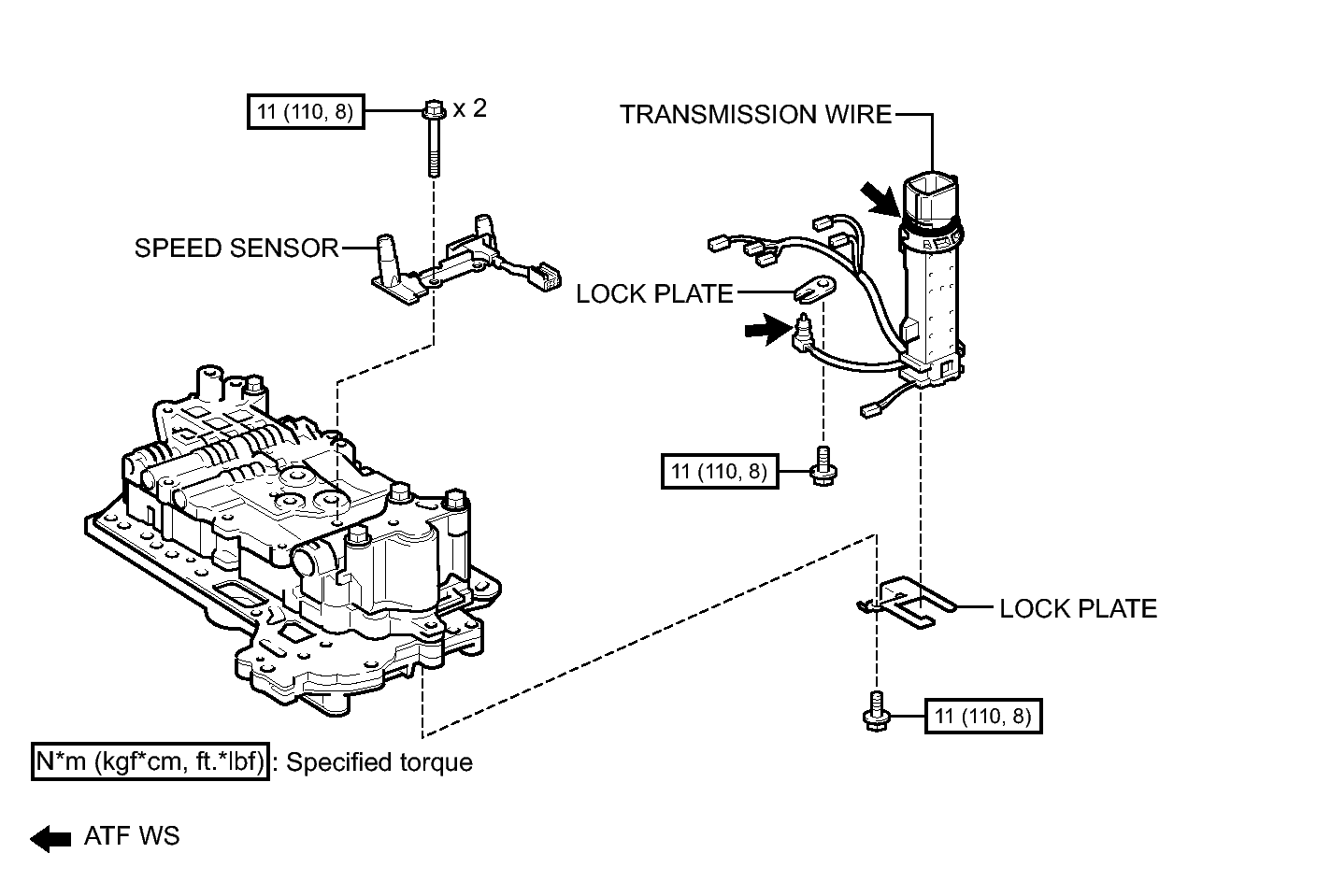

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications (2 Of 3)
GTY310296Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

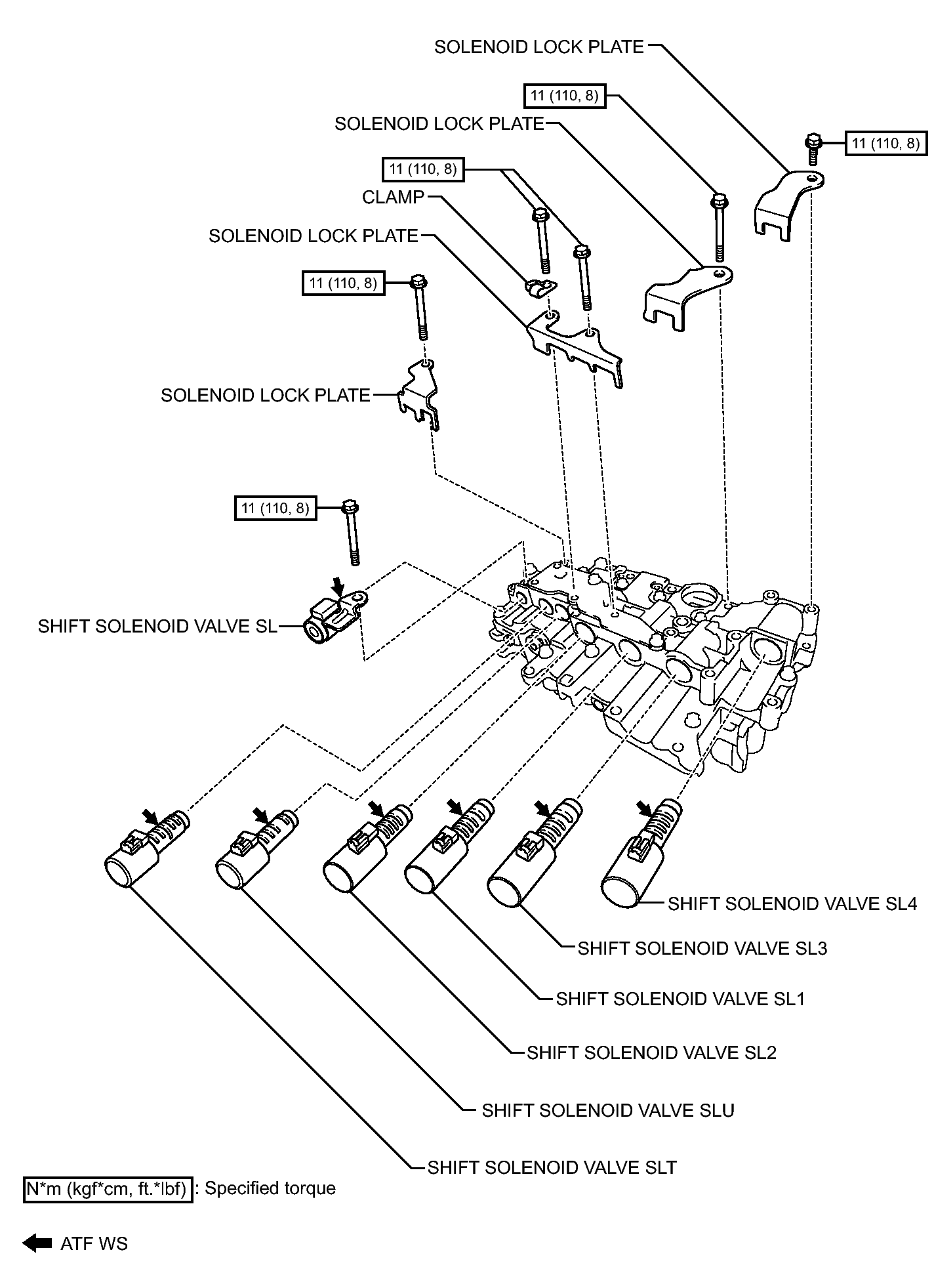

Fig 1: Valve Body Assembly Replacement Components With Torque Specifications (3 Of 3)
GTY310588Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
