Customize Parameters

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM (W/O Smart Key System): CUSTOMIZE PARAMETERS

1. CUSTOMIZE WIRELESS DOOR LOCK CONTROL SYSTEM

HINT

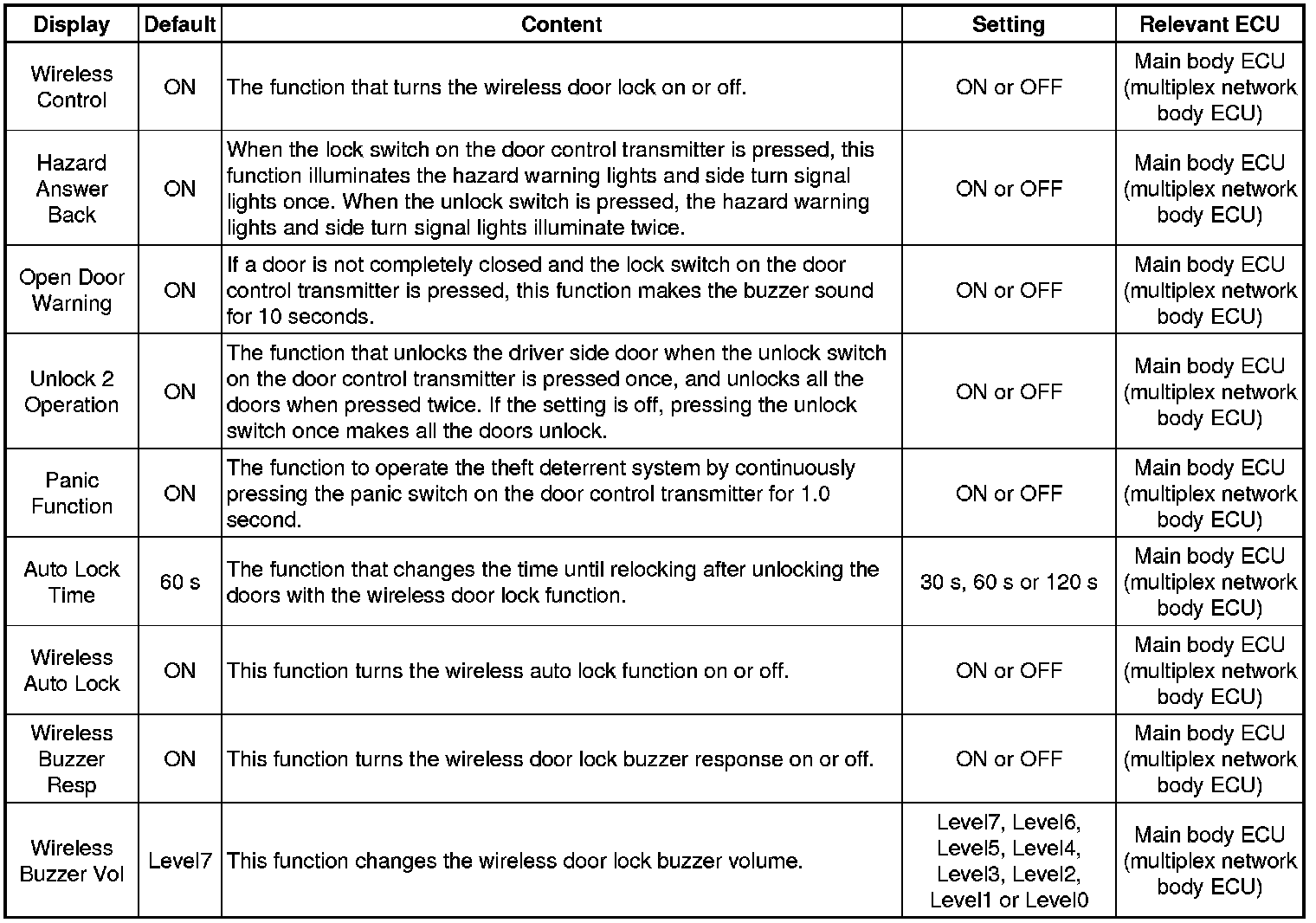

The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Record the current settings before customizing.

(a) Customizing with the Techstream

(1) Connect the Techstream to the DLC3.

(2) Turn the ignition switch to ON.

(3) Turn the Techstream on.

(4) Enter the following menus: Customize Setting / Wireless Door Lock.
