Interior Lighting System

LIGHTING (INT): LIGHTING SYSTEM: CUSTOMIZE PARAMETERS

1. CUSTOMIZE LIGHTING SYSTEM (INT)

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Record the current settings before customizing.

(a) Customizing with the Techstream.

(1) Connect the Techstream to the DLC3.

(2) Turn the ignition switch to ON.

(3) Turn the Techstream on.

(4) Enter the following menus: Customize Setting / Illuminated Entry.

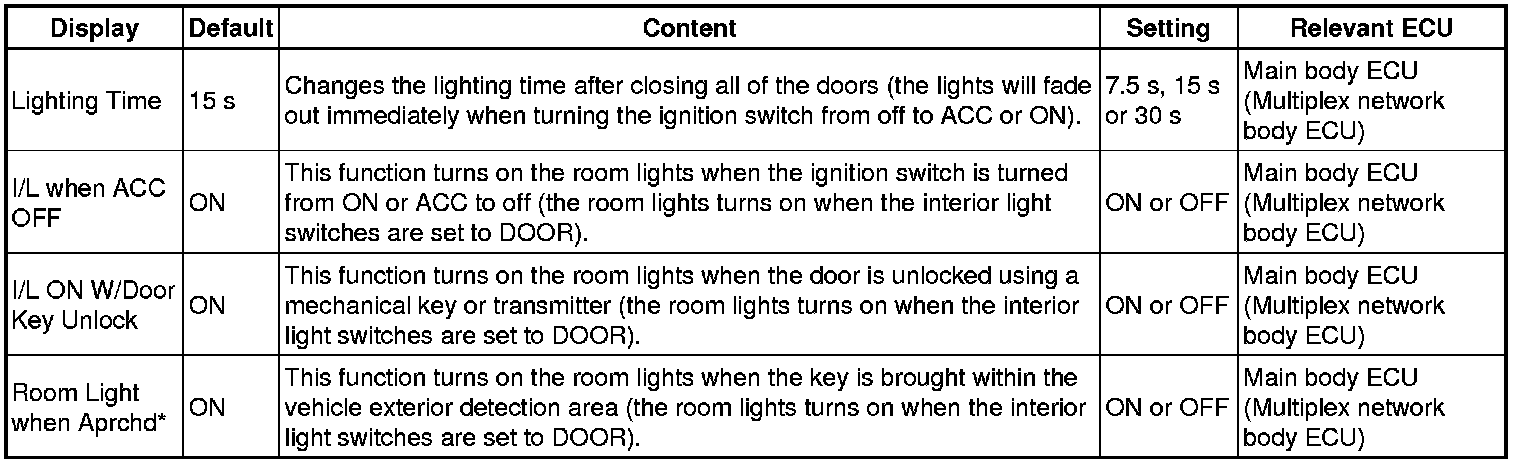

(5) Select the setting by referring to the table below.





* *: W/ Smart Key System
