Engine Temperature Sensor: Testing and Inspection

2AR-FE ENGINE CONTROL: ENGINE COOLANT TEMPERATURE SENSOR: INSPECTION

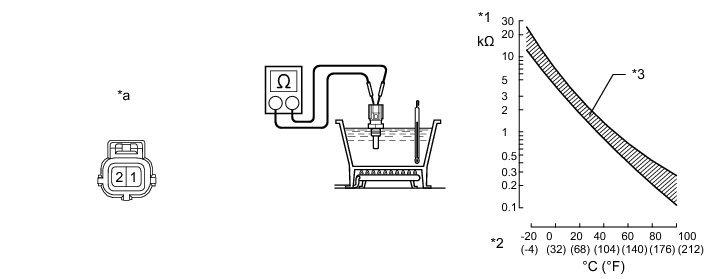

1. INSPECT ENGINE COOLANT TEMPERATURE SENSOR





Text in Illustration





(a) Partially immerse the sensor in water and warm up the water.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NOTICE:
When checking the sensor in water, keep the terminals dry. After the check, wipe the sensor dry.

If the result is not as specified, replace the engine coolant temperature sensor.
