Canada - Keyless - Smart Key System Check

S-TCI-3638

October 31, 2011

SMART KEY SYSTEM CHECK DURING PDS

Service Category
General

Section
Pre-Delivery Service

Market
Canada





APPLICABLE VEHICLE$:

INTRODUCTION:

Some 2012 model year vehicles are equipped with a Smart Key system which allows the customer to enter and start the vehicle without using a mechanical key. To ensure the system is operating properly the Smart Key functions (Smart Entry and Smart Start) should be inspected during Pre-Delivery Service (PDS).

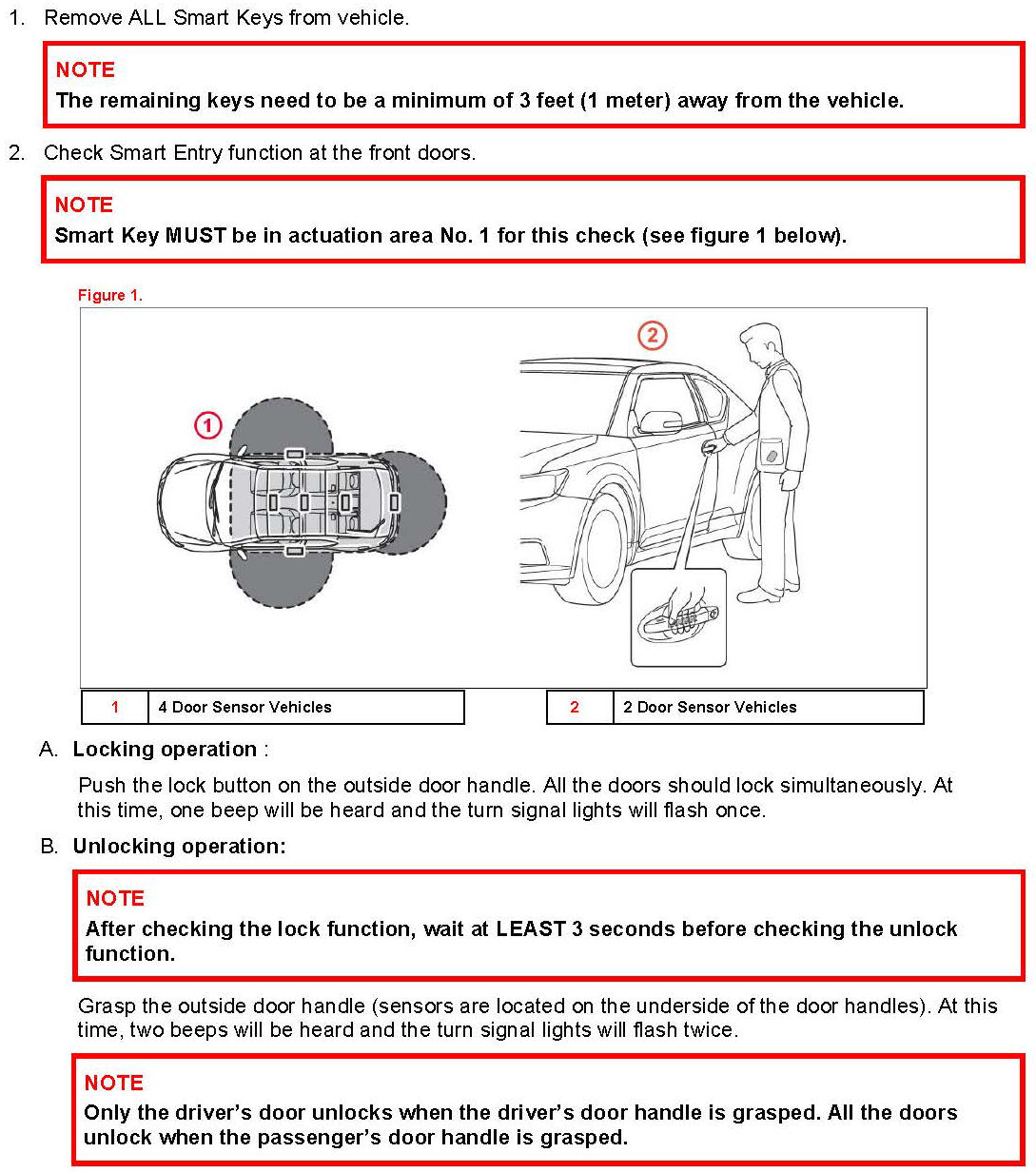

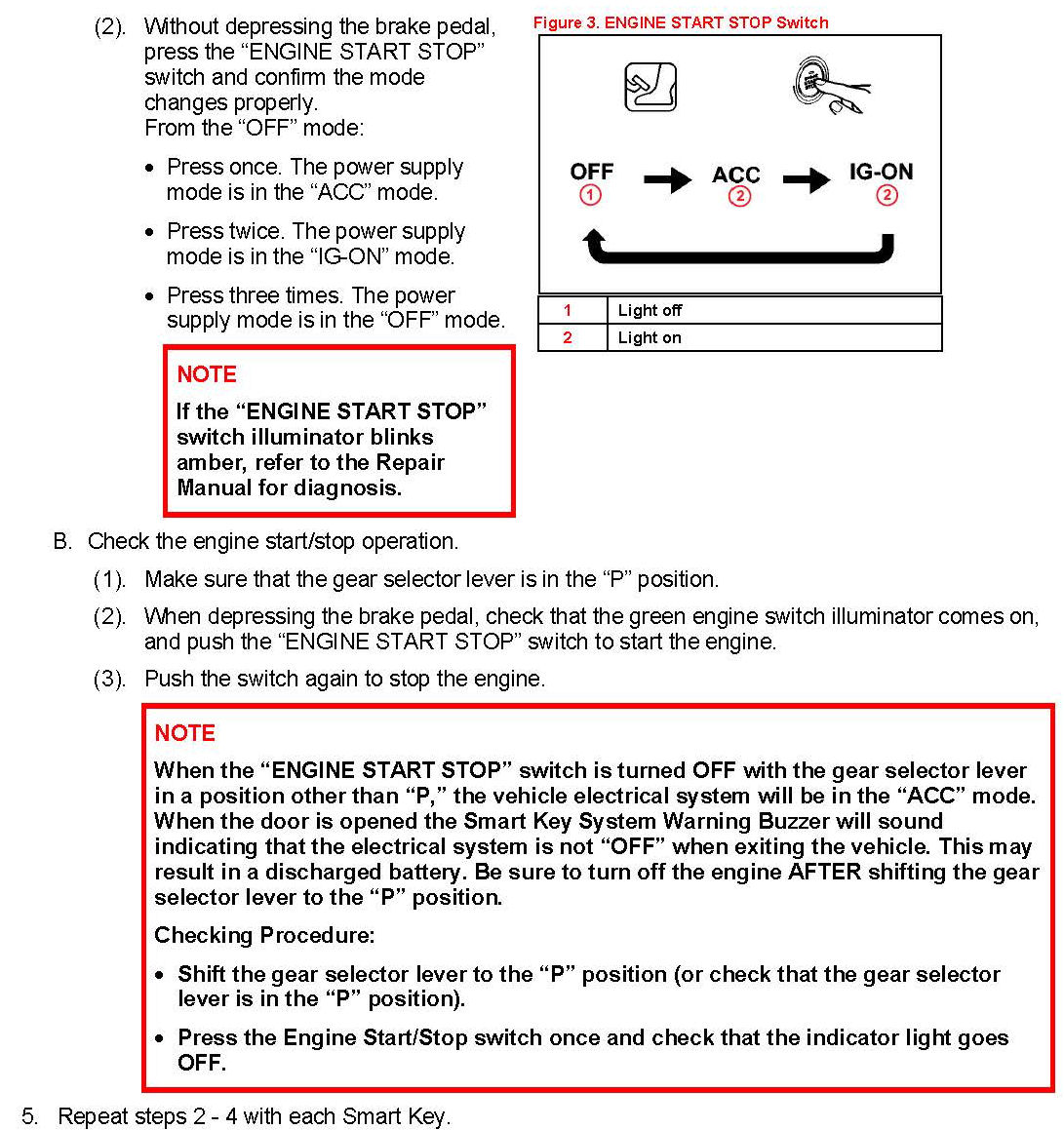

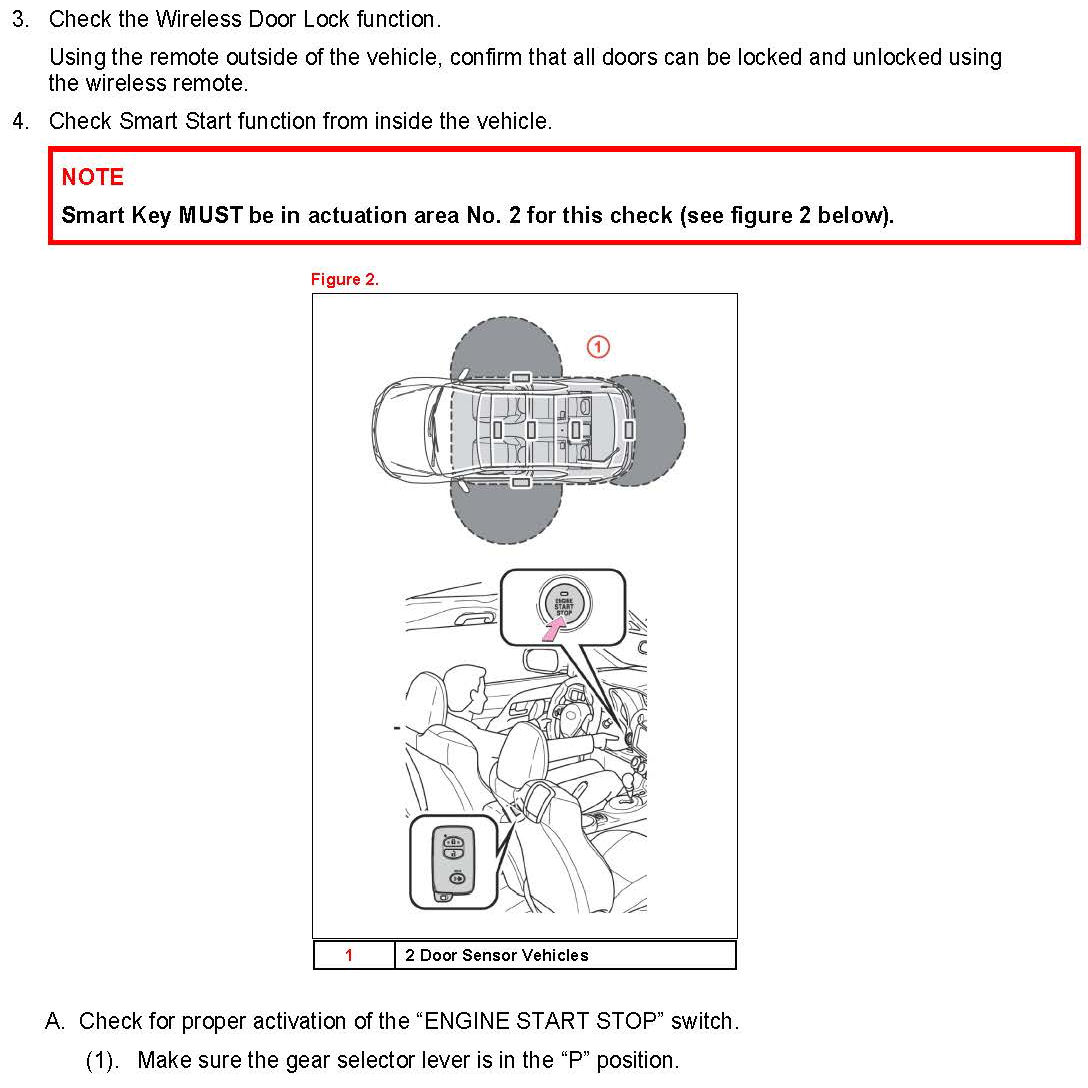

Check all of the Smart Keys using this procedure

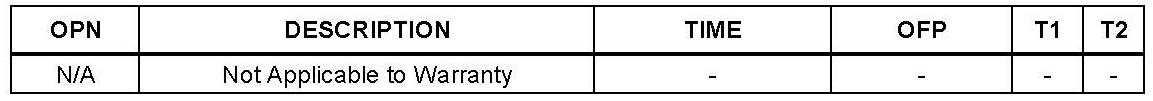

WARRANTY INFORMATION:











INSPECTION PROCEDURE:

© 2011 Toyota Motor Sales, Canada
