Torque Specifications





SPECIFICATIONS: EB60 MANUAL TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS

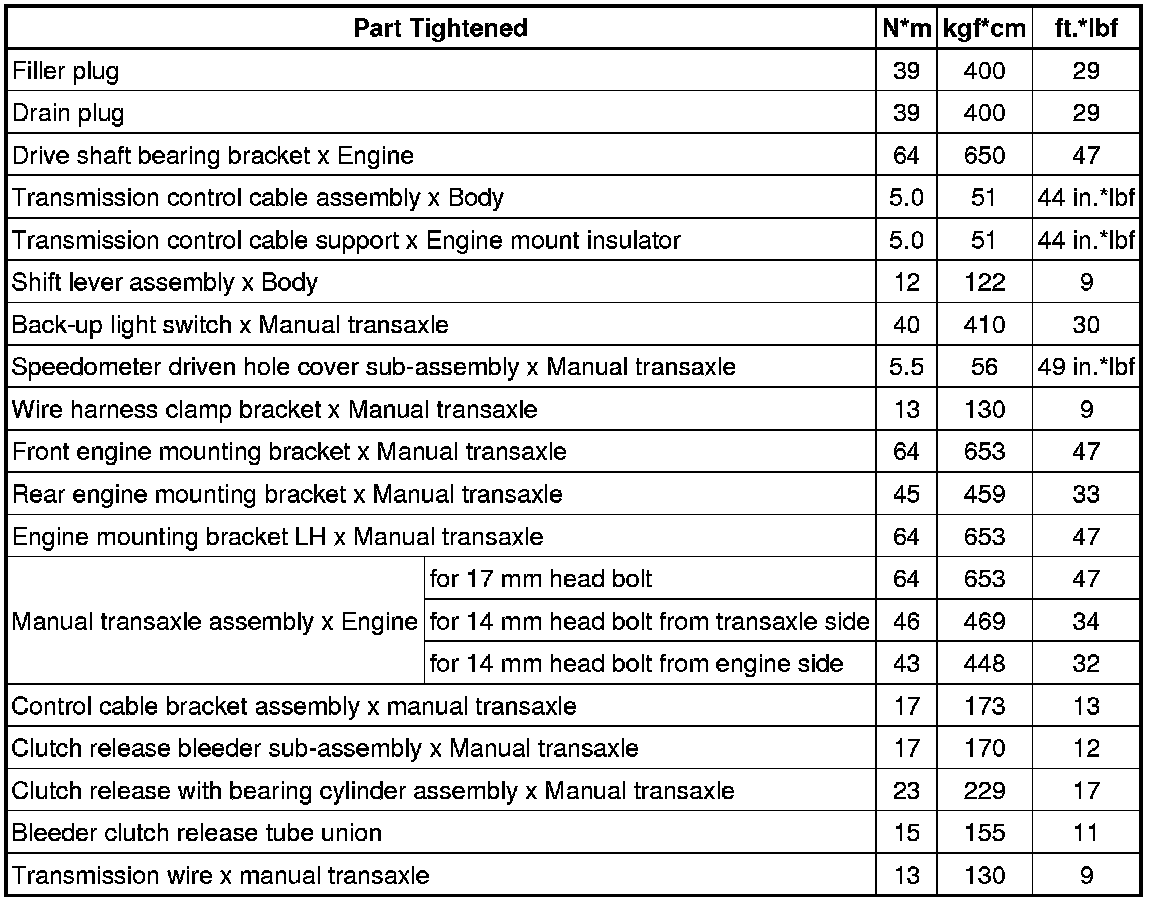

Manual Transaxle Assembly





Manual Transaxle Unit





Differential Case
