Service Data

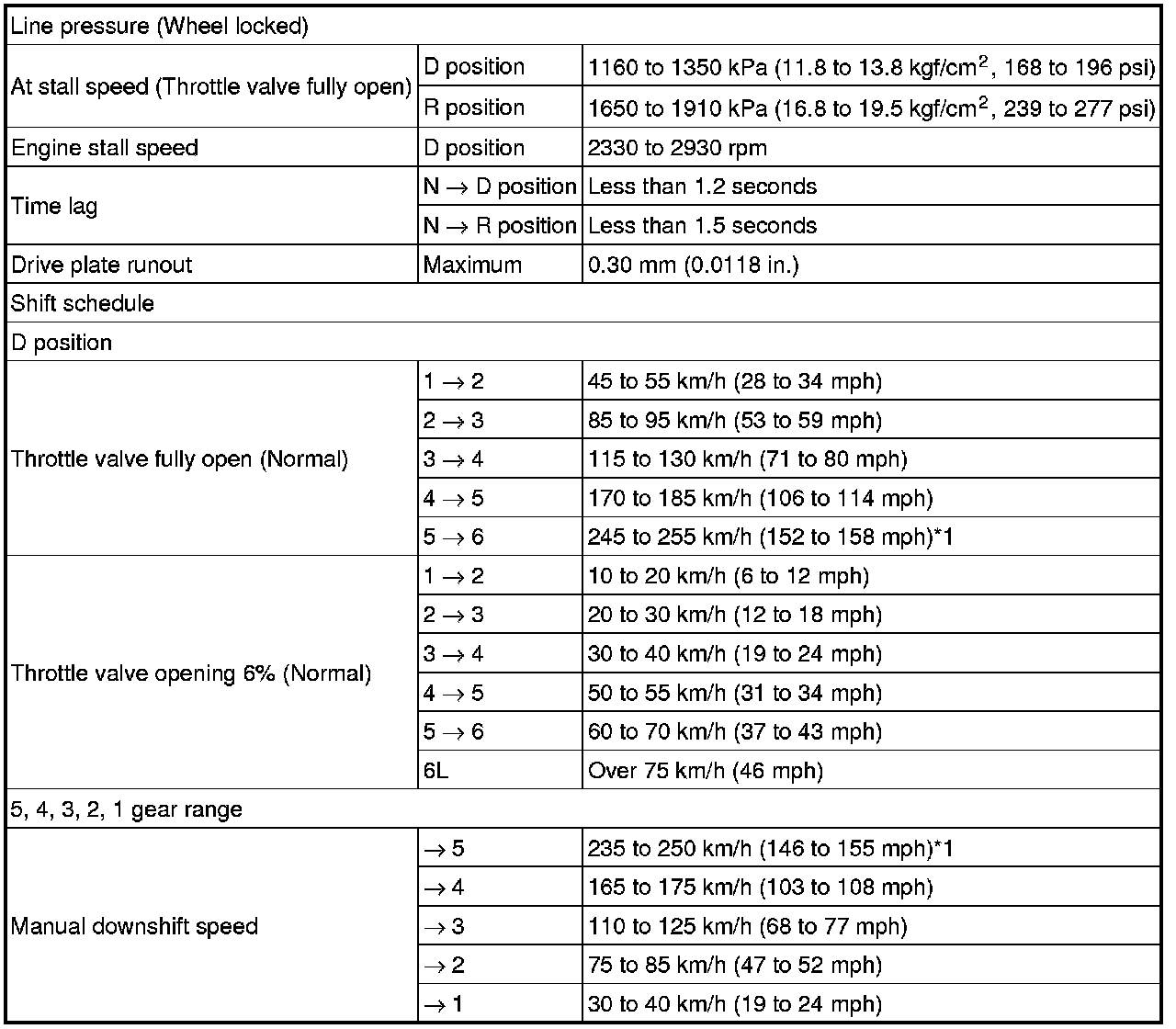

SPECIFICATIONS: U760E AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA





*1: Speed limiter active

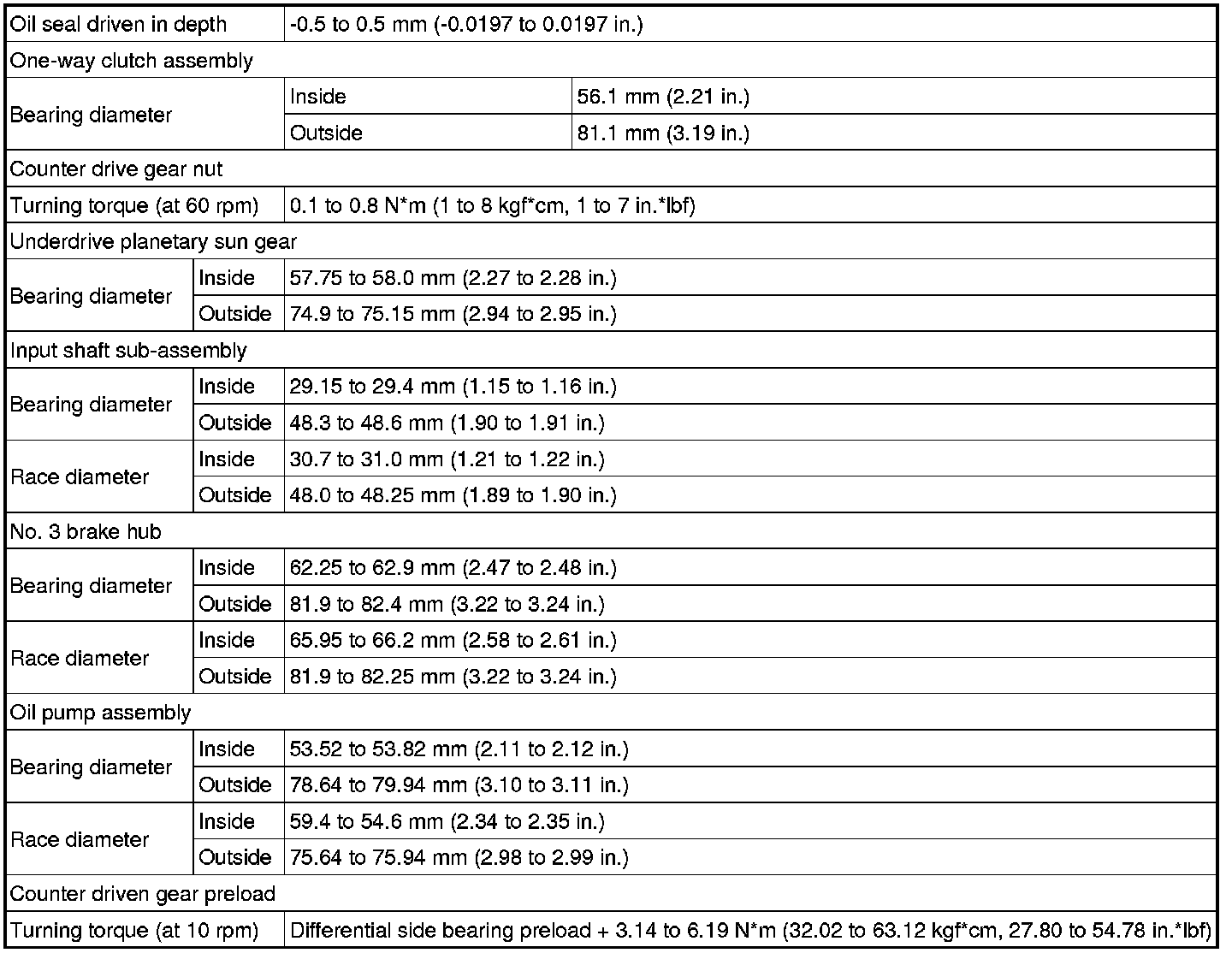

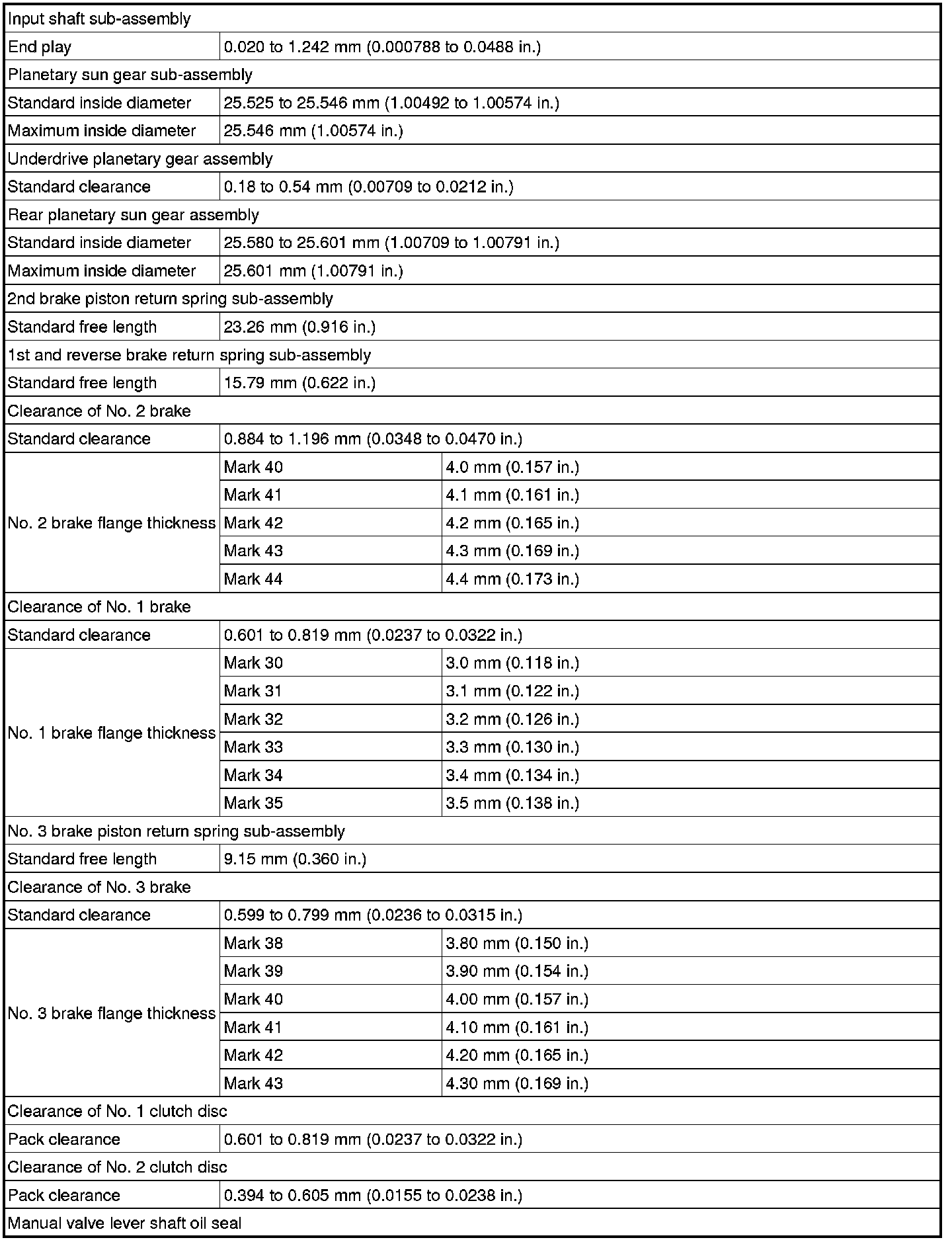

Automatic Transaxle Unit

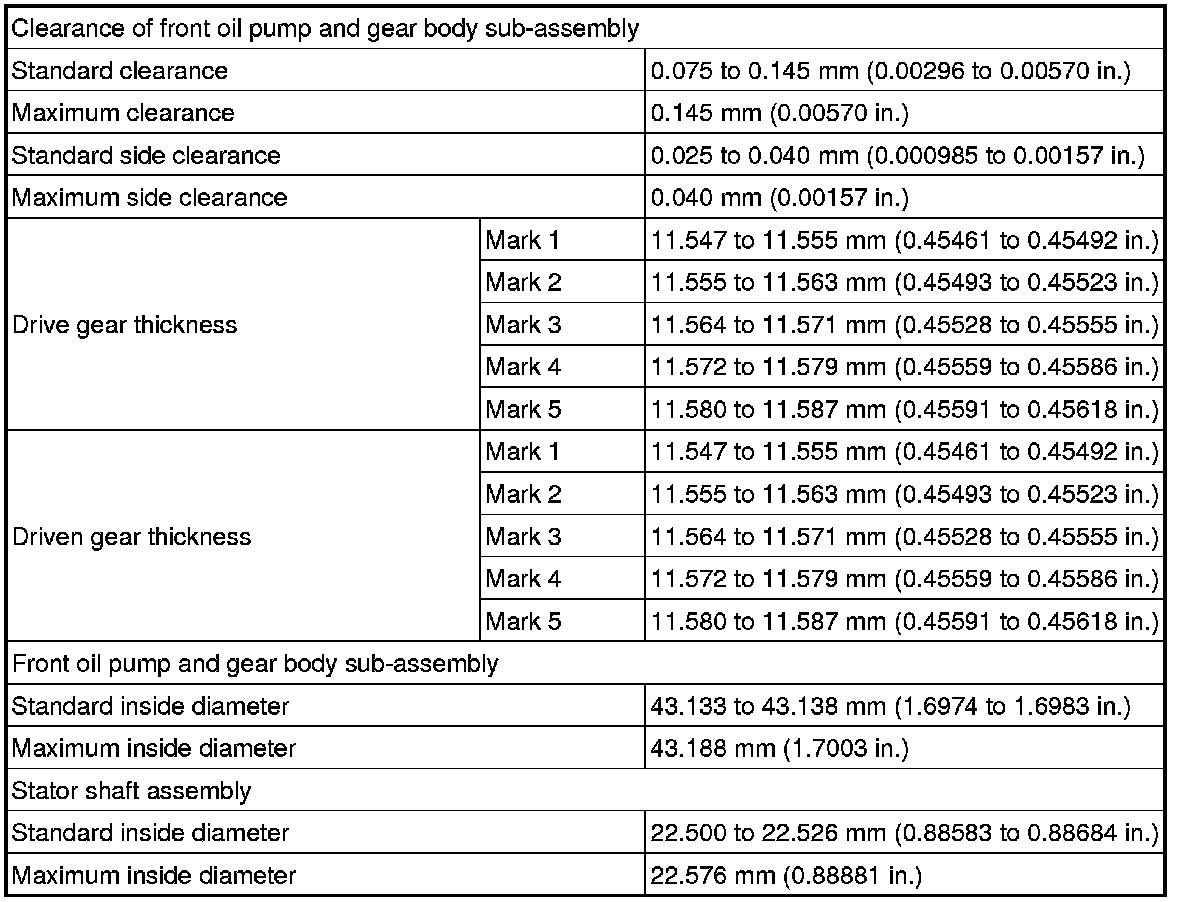

Oil Pump

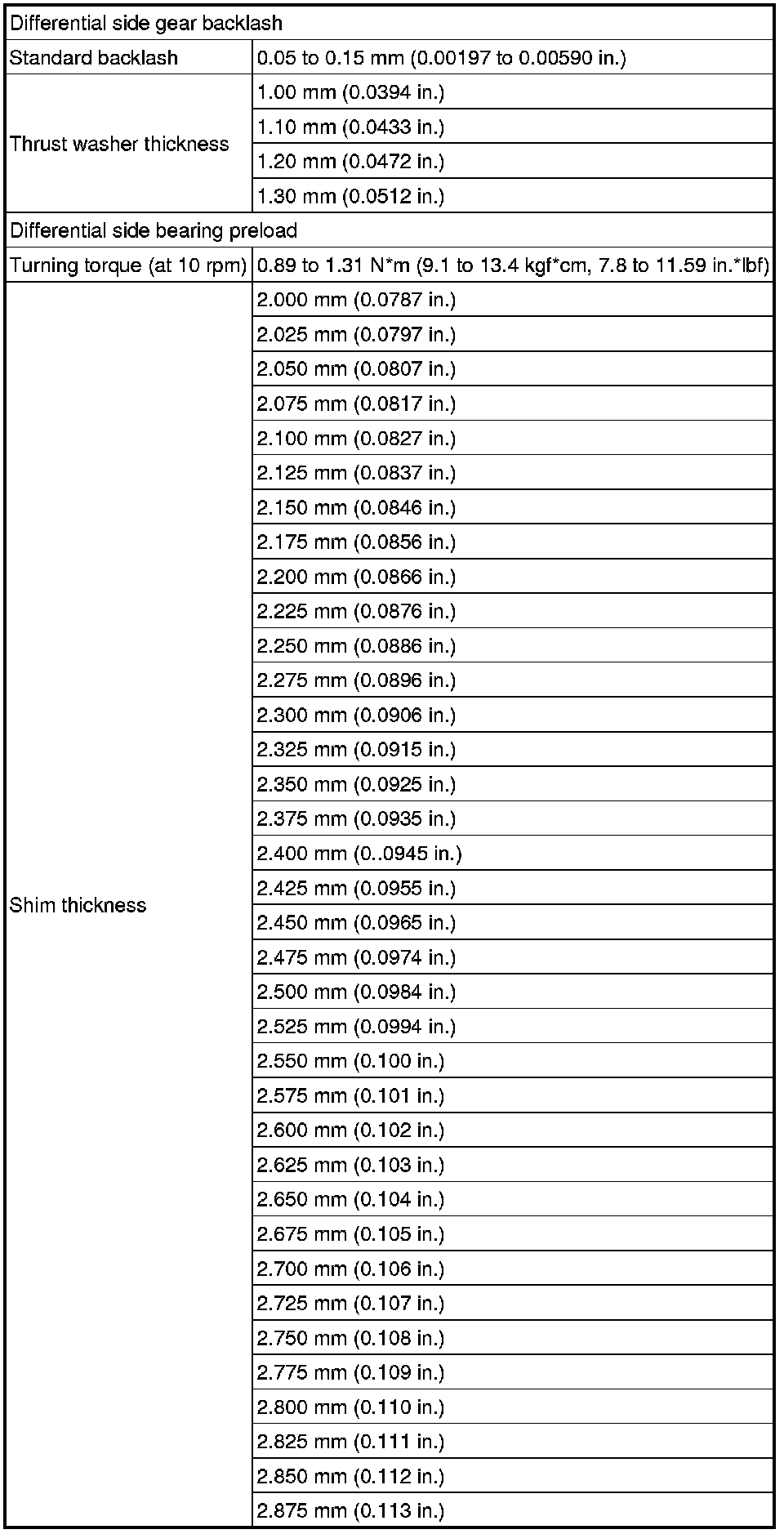

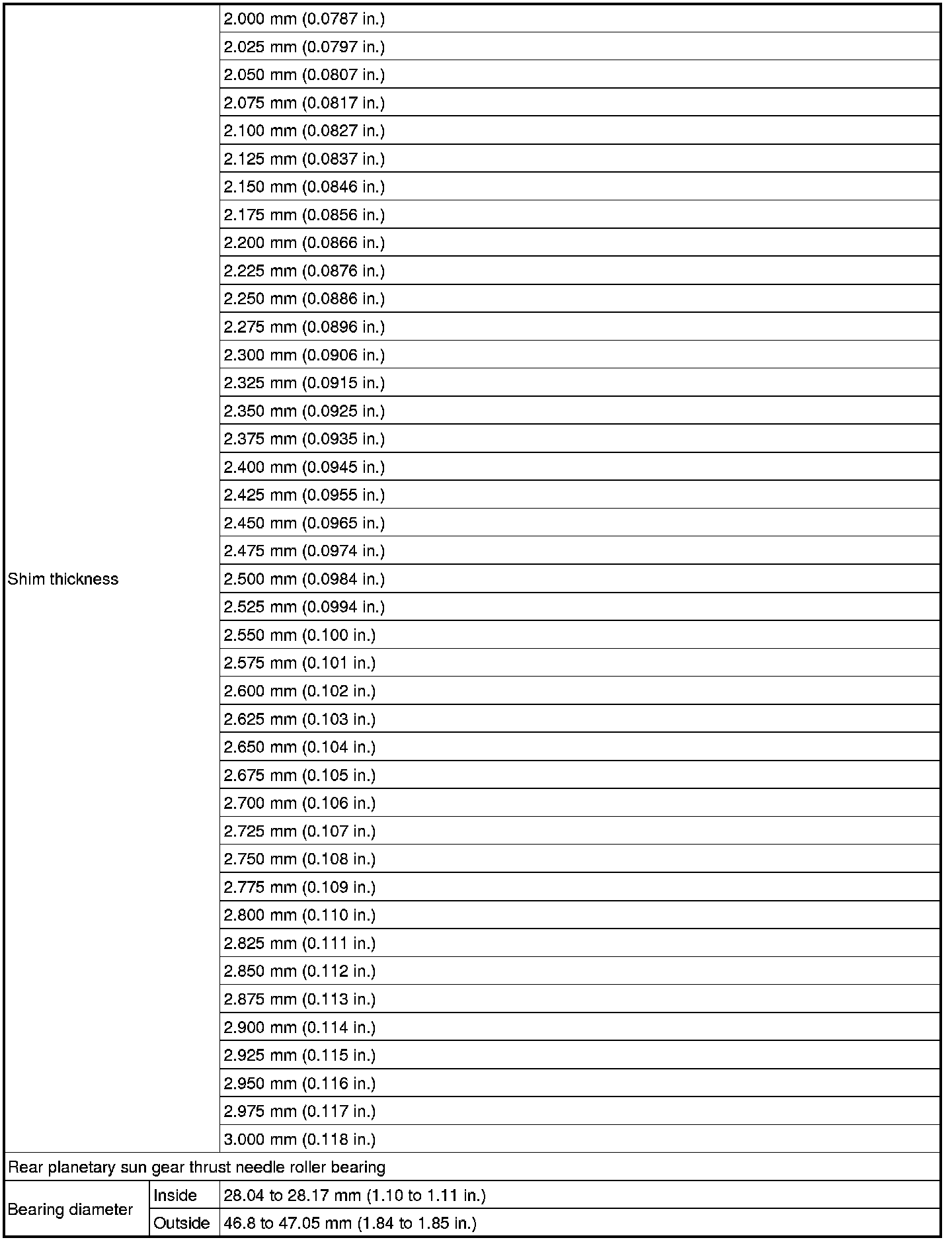

Differential Case
