Torque Specifications





SPECIFICATIONS: 2AR-FE ENGINE MECHANICAL: TORQUE SPECIFICATIONS

Camshaft





Cylinder Head Gasket





Engine Rear Oil Seal

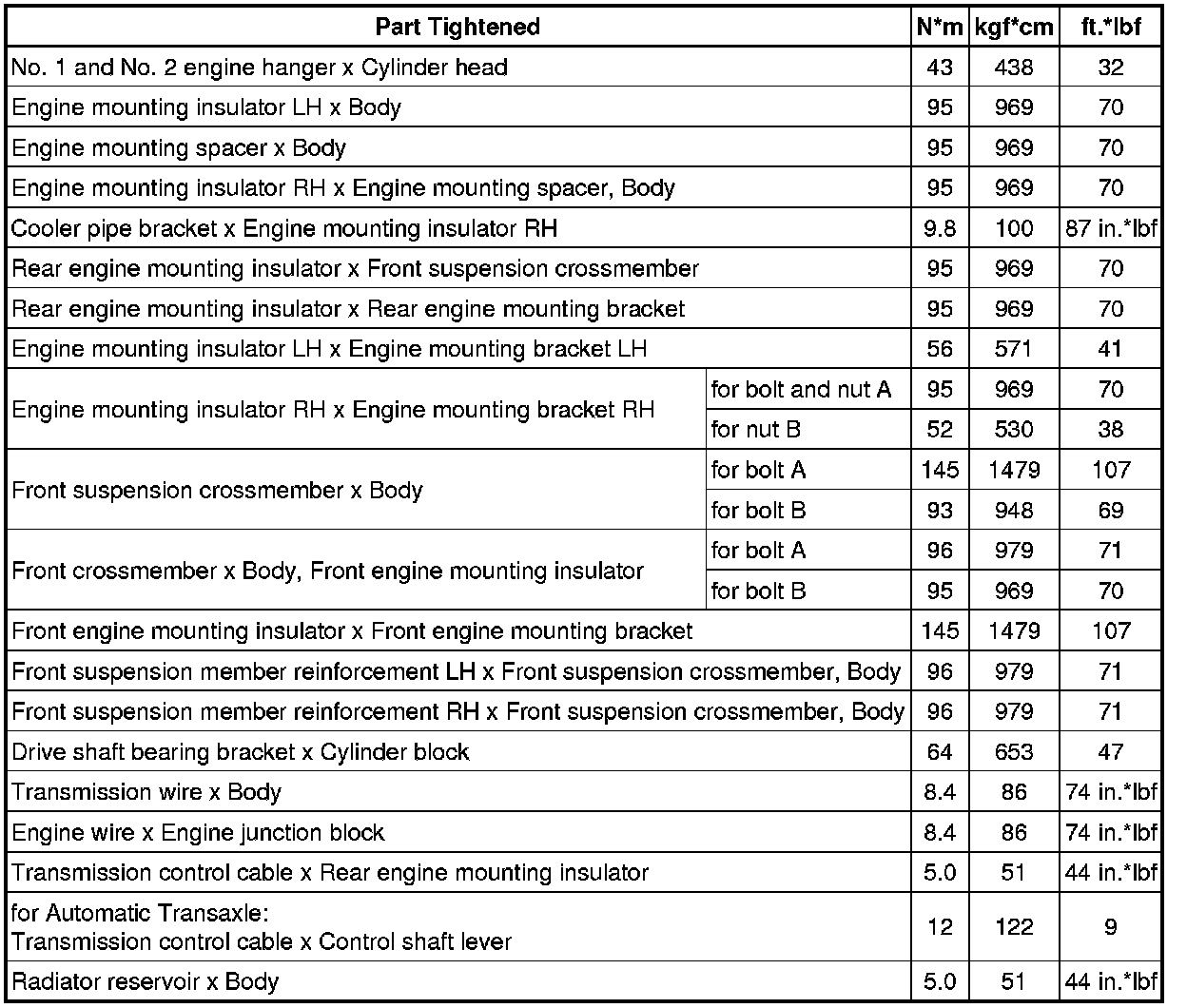

Engine Assembly

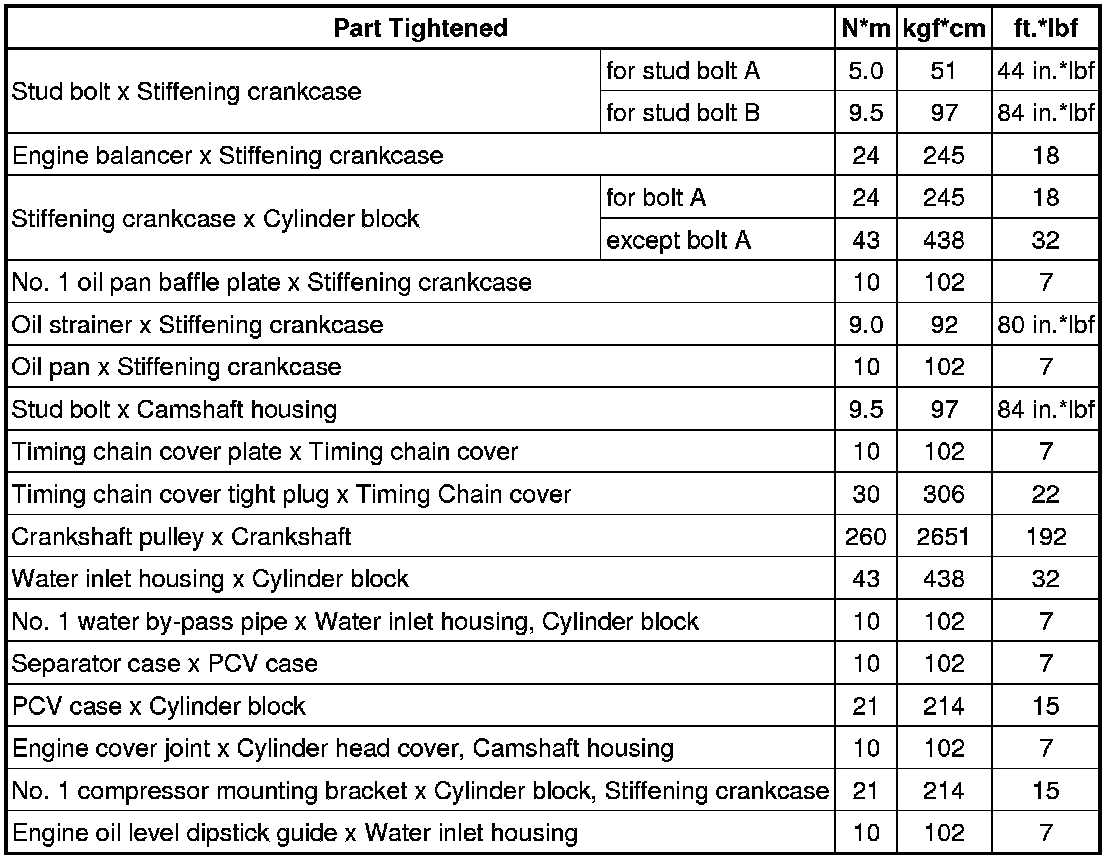

Engine Unit





Cylinder Head





Cylinder Block
