Engine Immobilizer System (W/ Smart Key System)

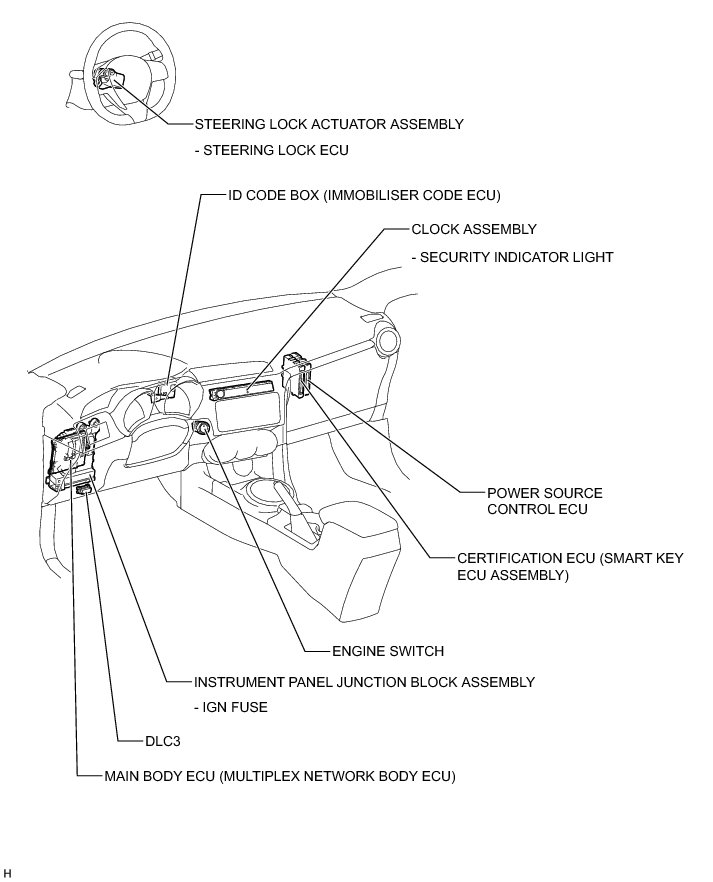

THEFT DETERRENT / KEYLESS ENTRY: ENGINE IMMOBILIZER SYSTEM (W/ Smart Key System): PARTS LOCATION
