Front Speed Sensor: Installation: Installation

HINT:

• Use the same procedure for the RH and LH sides.
• The following procedure is for the LH side.

1. INSTALL FRONT SPEED SENSOR LH
   1. Install the front speed sensor to the steering knuckle with the bolt.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

      NOTE:

      • Prevent foreign matter from adhering to the front speed sensor tip.
      • Firmly insert the front speed sensor body into the knuckle before tightening the bolt.
      • After installing the front speed sensor to the knuckle, make sure that there is no clearance between the front speed sensor stay and knuckle. Also make sure that no foreign matter is stuck between the parts.
   2. Install the clamp to the front shock absorber assembly.
   3. Temporarily install the front brake flexible hose.

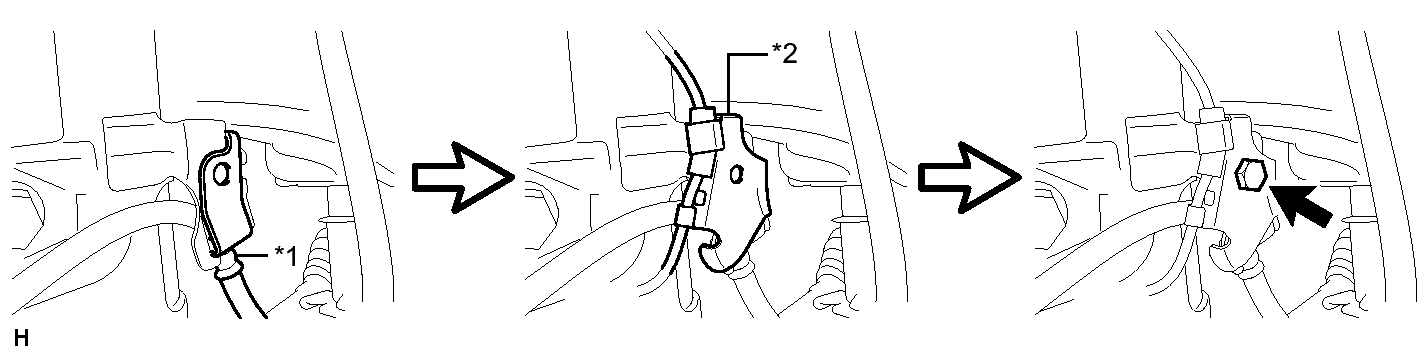

      Fig 1: Installing Front Speed Sensor To Steering Knuckle

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION



      *1

      Front Brake Flexible Hose

      *2

      No. 1 Sensor Clamp

   4. Install the front brake flexible hose and No. 1 sensor clamp together to the front shock absorber with the bolt.

      Torque: 19 N*m (192 kgf*cm, 14 ft.*lbf)

      NOTE:

      • Do not twist the wire harness for the front speed sensor when installing the front speed sensor.
      • A bolt holds the brake flexible hose and front speed sensor clamp together. Make sure that the front speed sensor clamp is positioned over the front brake flexible hose.
   5. Install the No. 2 sensor clamp to the body with the bolt.

      Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

   6. Connect the front speed sensor connector.
   7. Install the 2 front speed sensor wire harness clamps to the body.
2. INSTALL FRONT FENDER LINER LH
3. INSTALL FRONT WHEEL  . Refer to INSTALLATION - Step 7
4. CHECK FOR SPEED SENSOR SIGNAL

   Refer to TEST MODE PROCEDURE
