Section 2 (Automatic Transaxle (Service Information)): TCM: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL TCM
1. Install the TCM to the automatic transaxle.

  Fig 1: TCM Bolts Tightening Sequence
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install and tighten the 2 bolts in the order shown in the illustration.
  Torque: 11 N*m (115 kgf*cm, 8 ft.*lbf)
3. Connect the connector.

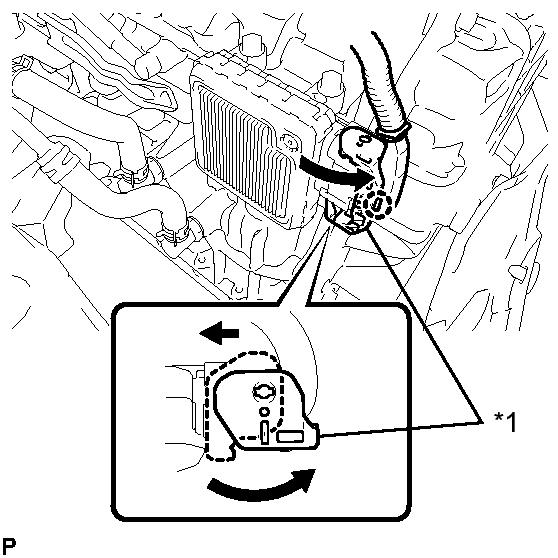

  Fig 2: Connecting TCM Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *1 Lock Lever
4. Turn the lock lever and attach the claw to secure the connector.
INSTALL BATTERY CARRIER ASSEMBLY . Refer to INSTALLATION - Step 2
INSTALL BATTERY TRAY
INSTALL BATTERY
INSTALL BATTERY INSULATOR
INSTALL BATTERY CLAMP SUB-ASSEMBLY . Refer to INSTALLATION - Step 6
INSTALL AIR CLEANER CASE SUB-ASSEMBLY . Refer to INSTALLATION - Step 3
INSTALL AIR CLEANER CAP SUB-ASSEMBLY . Refer to INSTALLATION - Step 4
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected. Refer to INITIALIZATION .
CHECK AUTOMATIC TRANSAXLE SYSTEM
NOTE:
If automatic transaxle parts are replaced, refer to Parts Replacement Compensation Table to determine if any additional operations are necessary. For additional information, refer to AUTOMATIC TRANSAXLE SYSTEM .
