Capacity Specifications

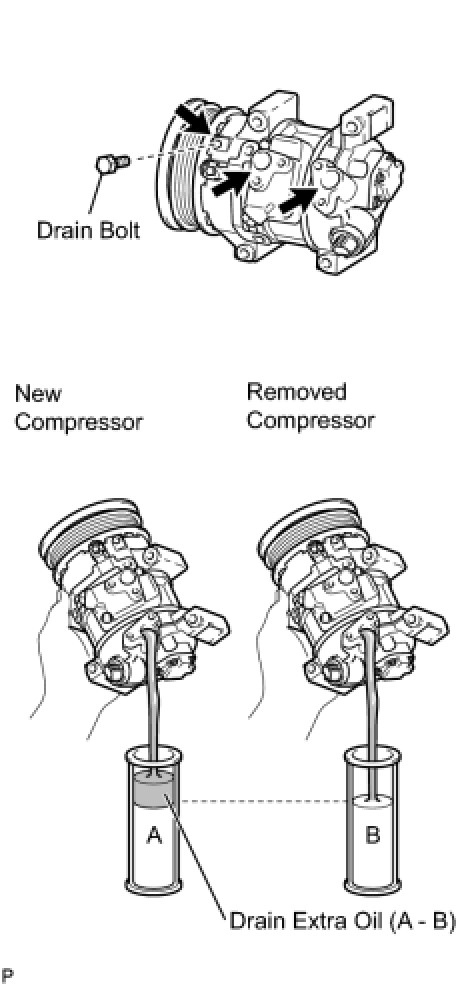

(The amount of oil inside a new compressor: 90 (+15) cc (3 (+0.51) fl.oz.)) - (The amount of oil remaining in the removed compressor) = The amount of oil to be removed when replacing the compressor











PREPARATION: AIR CONDITIONING: LUBRICANT
