Automatic Transaxle Unit: Components: Illustration

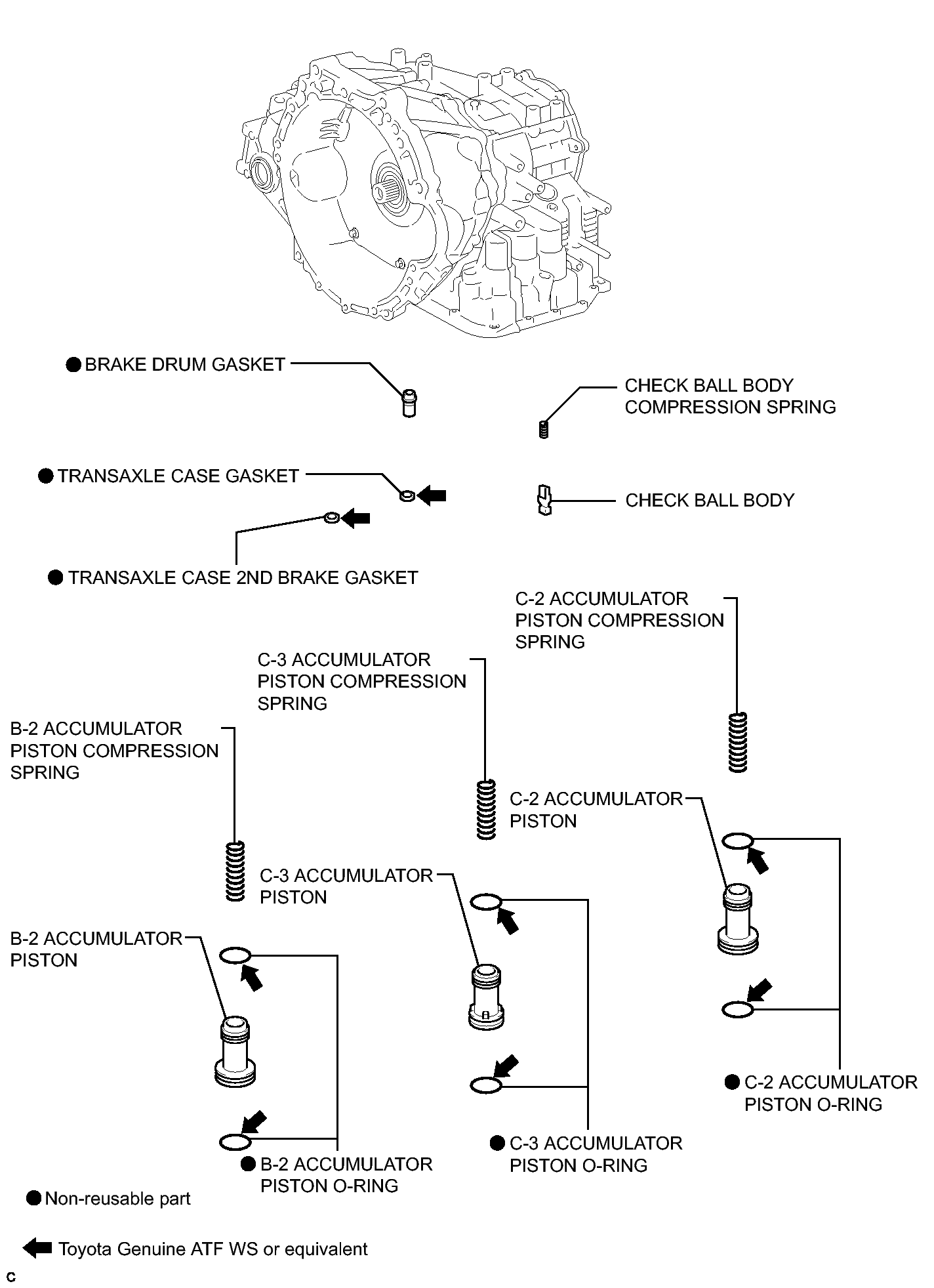

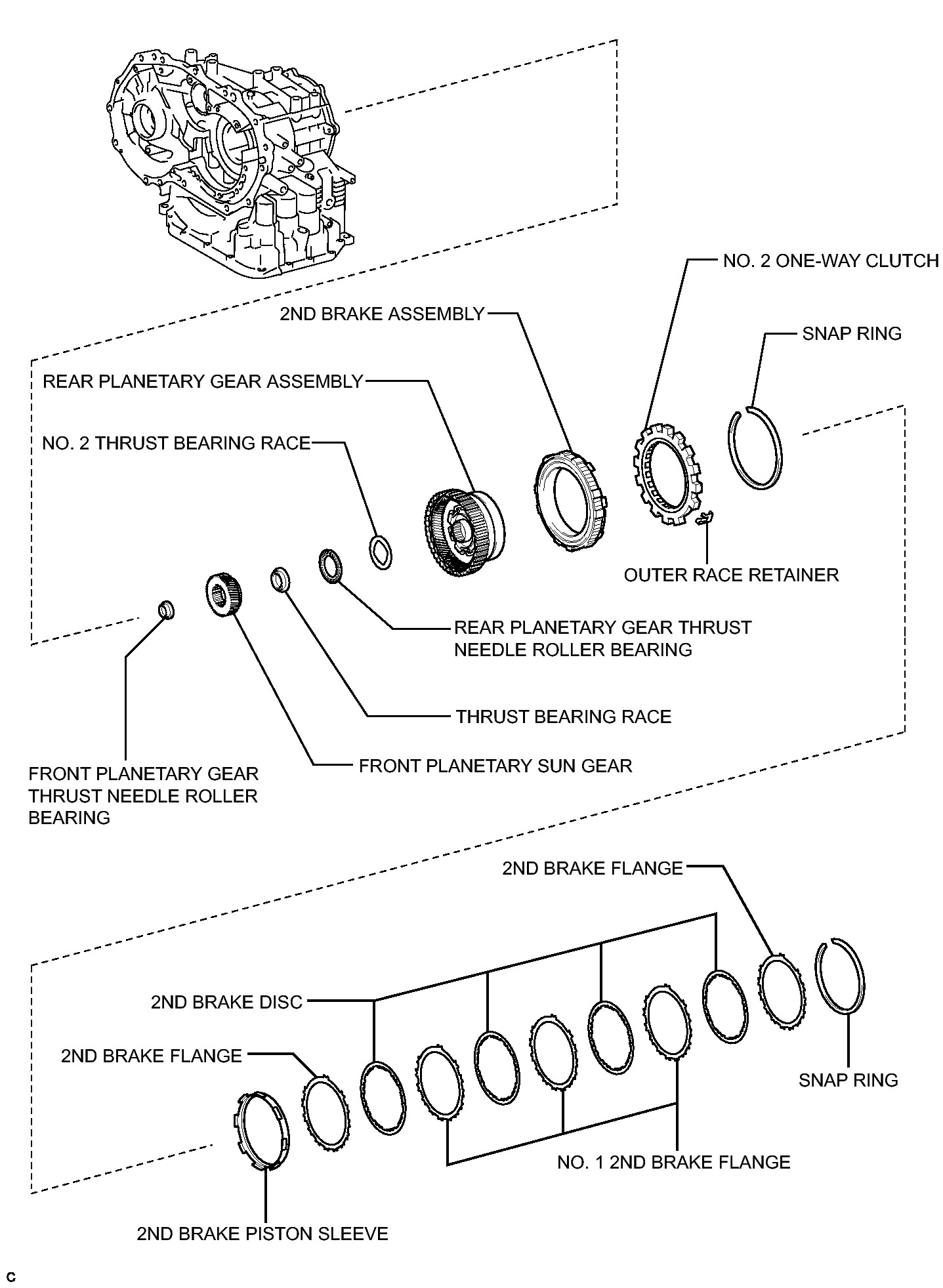

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

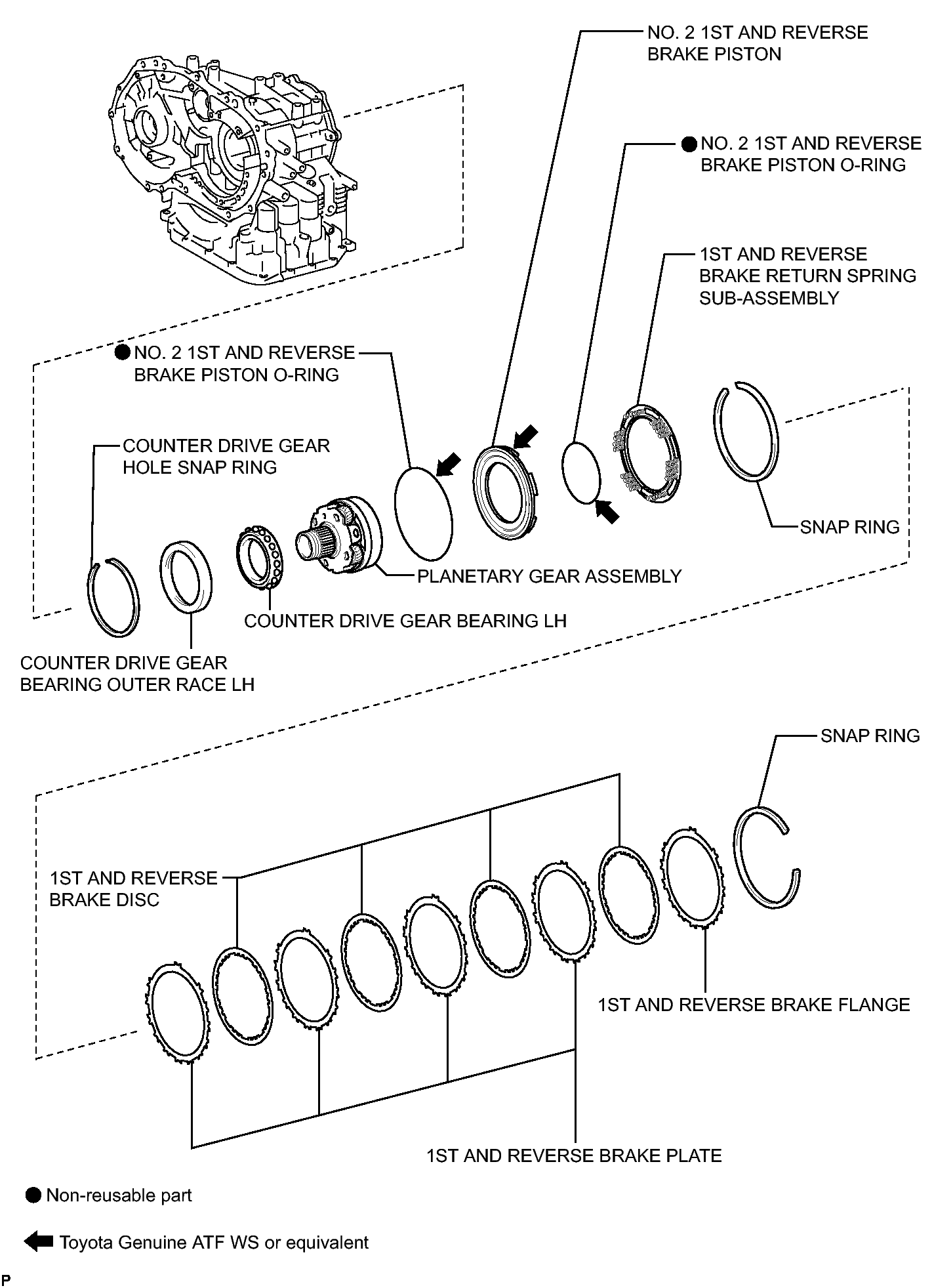

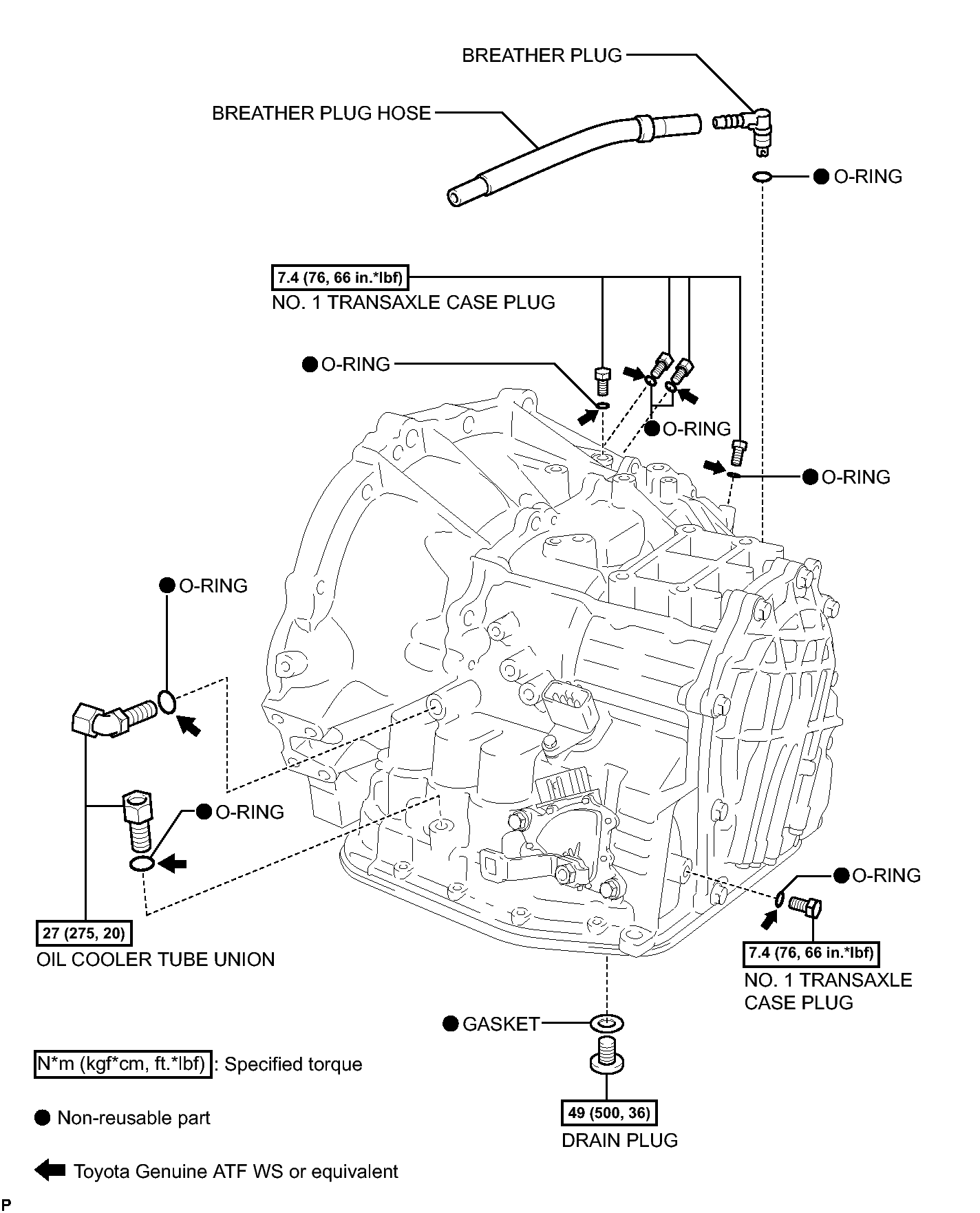

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

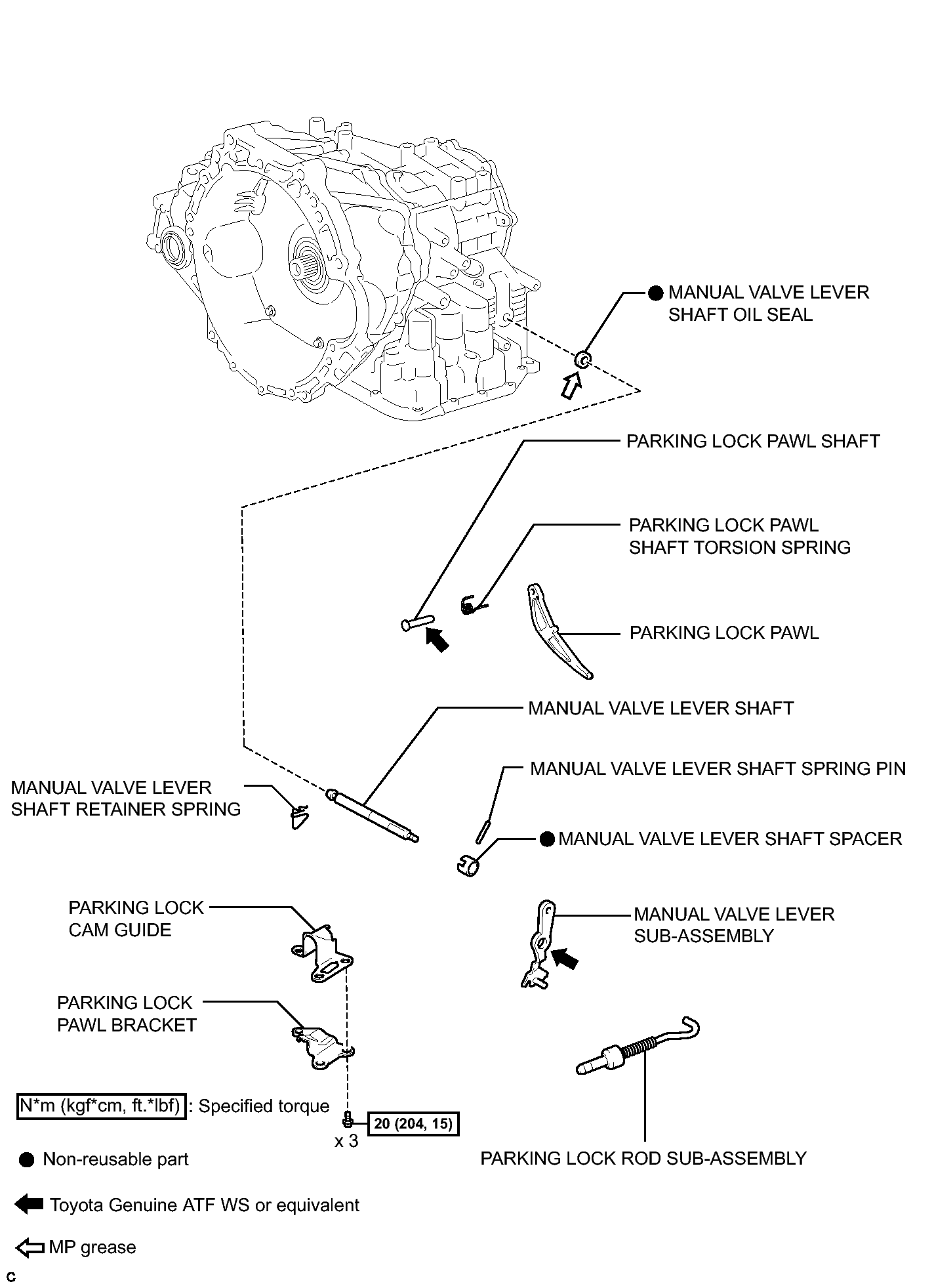

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

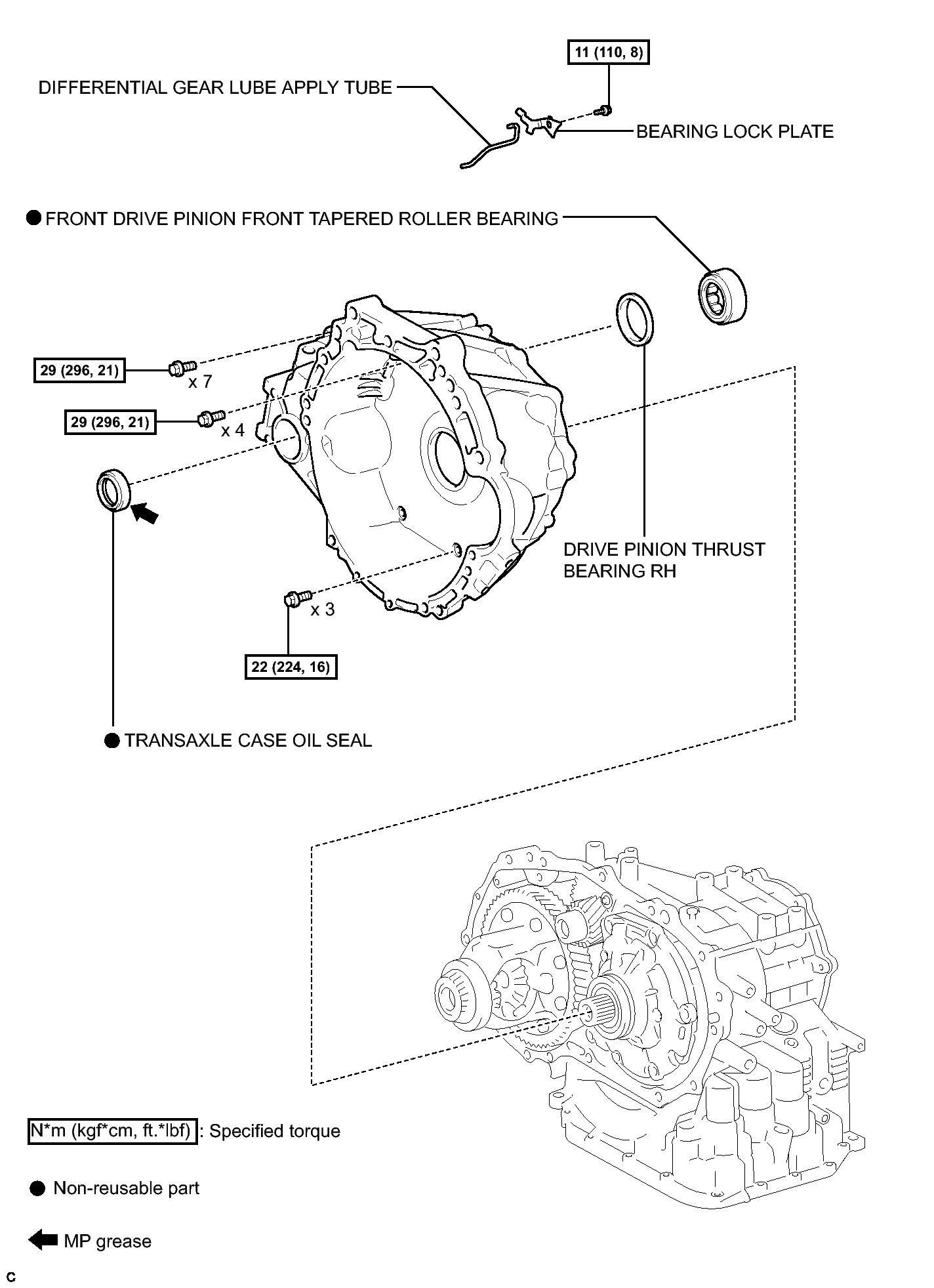

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

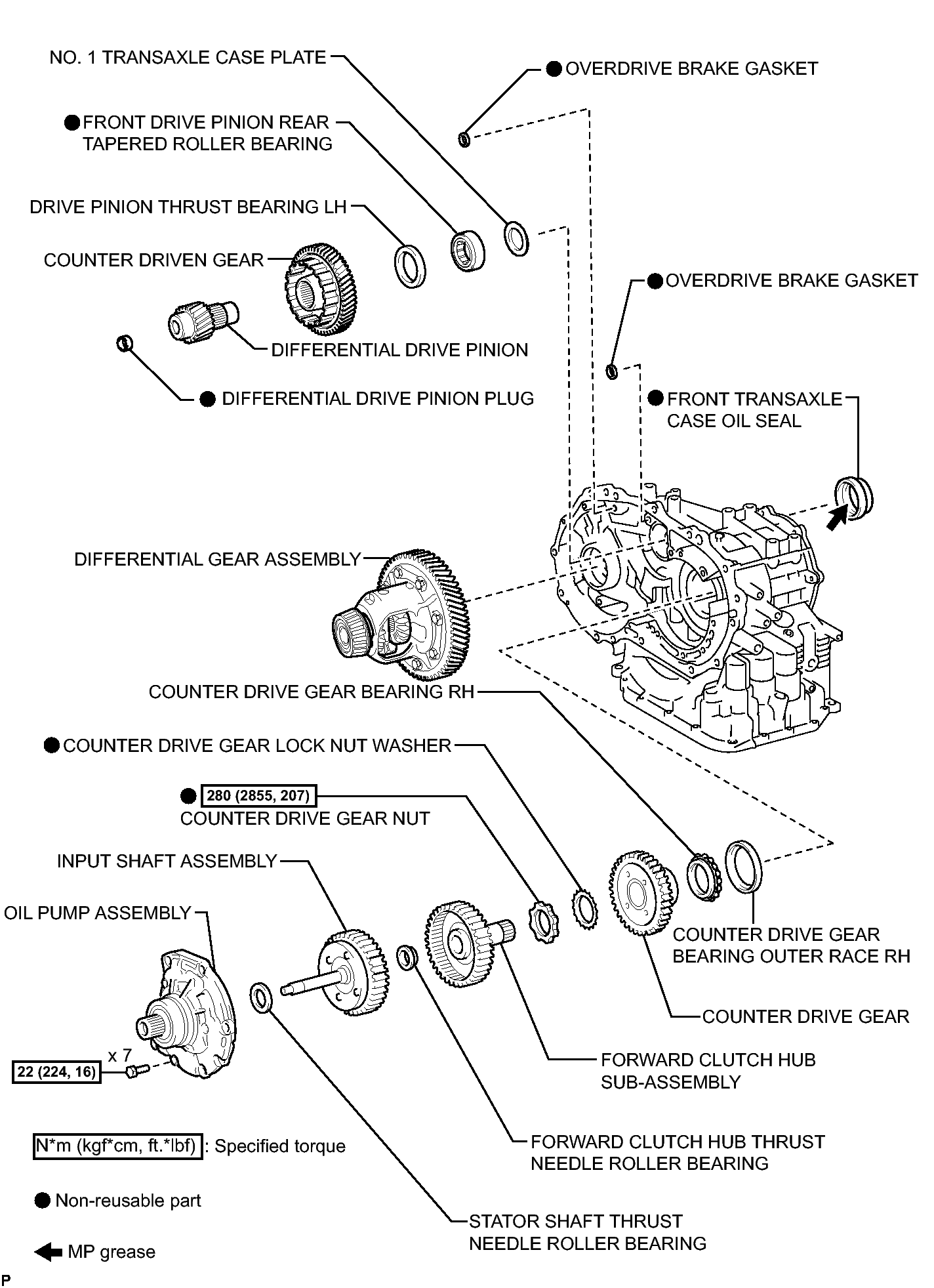

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

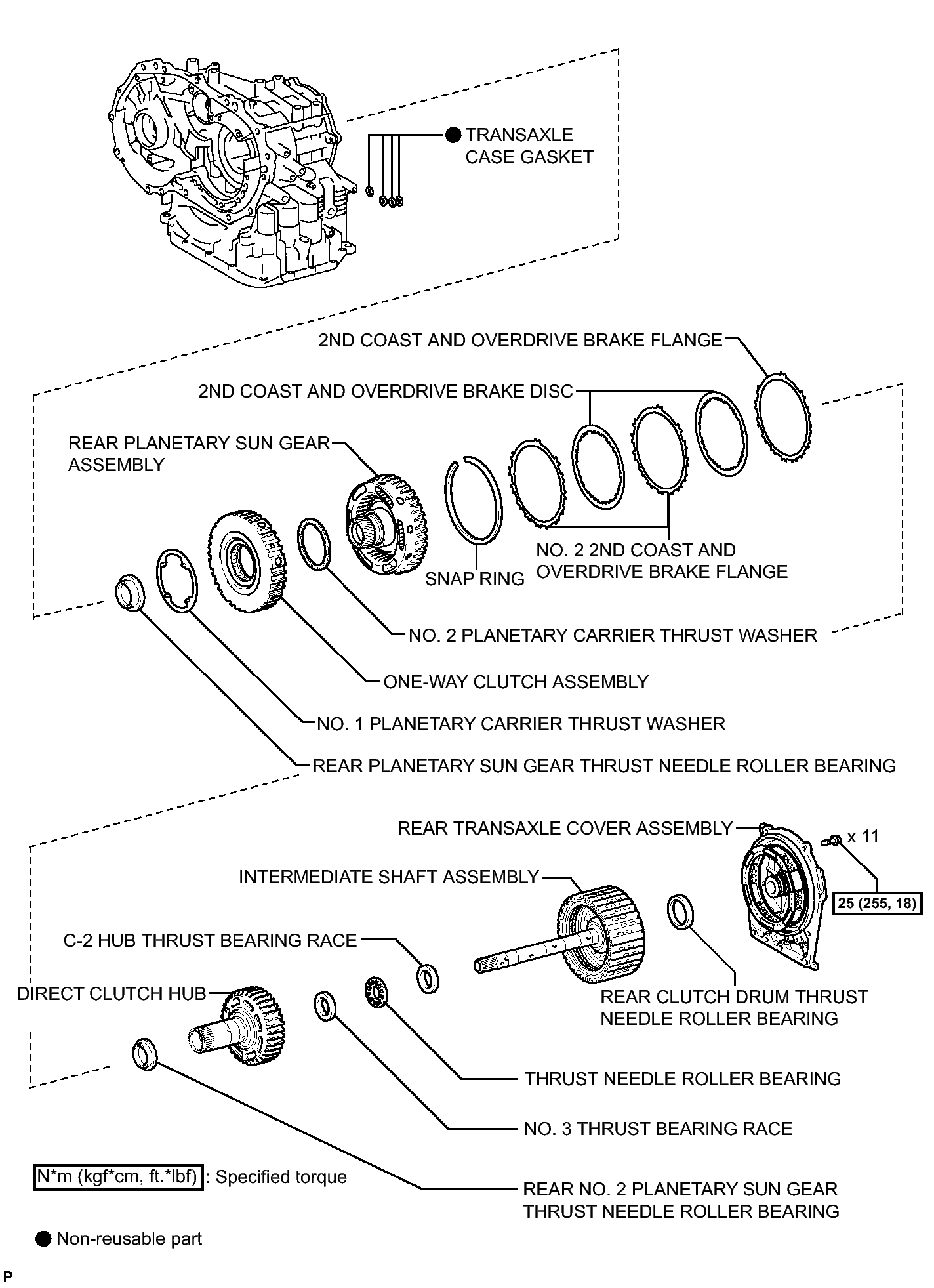

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

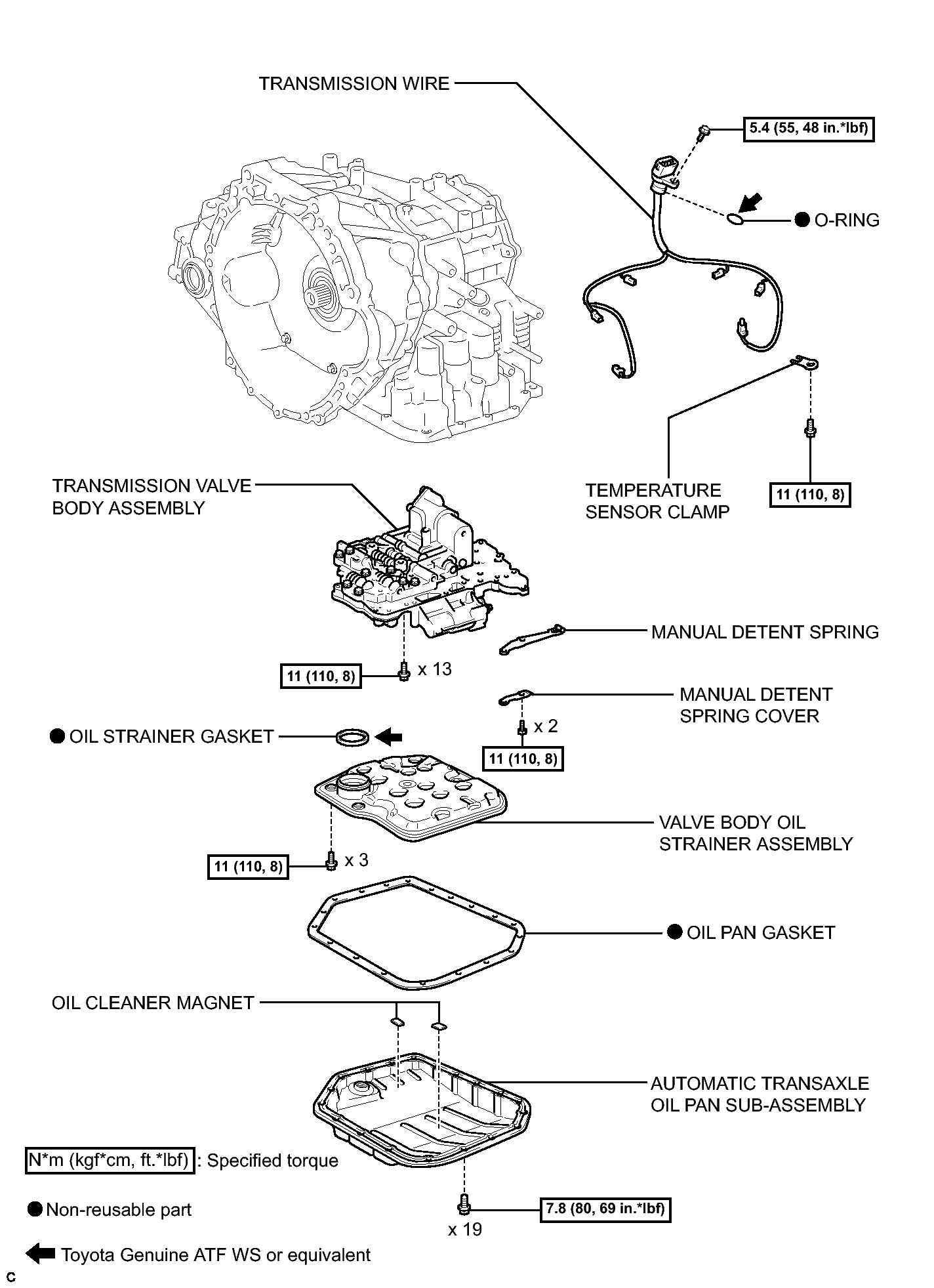

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (7 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

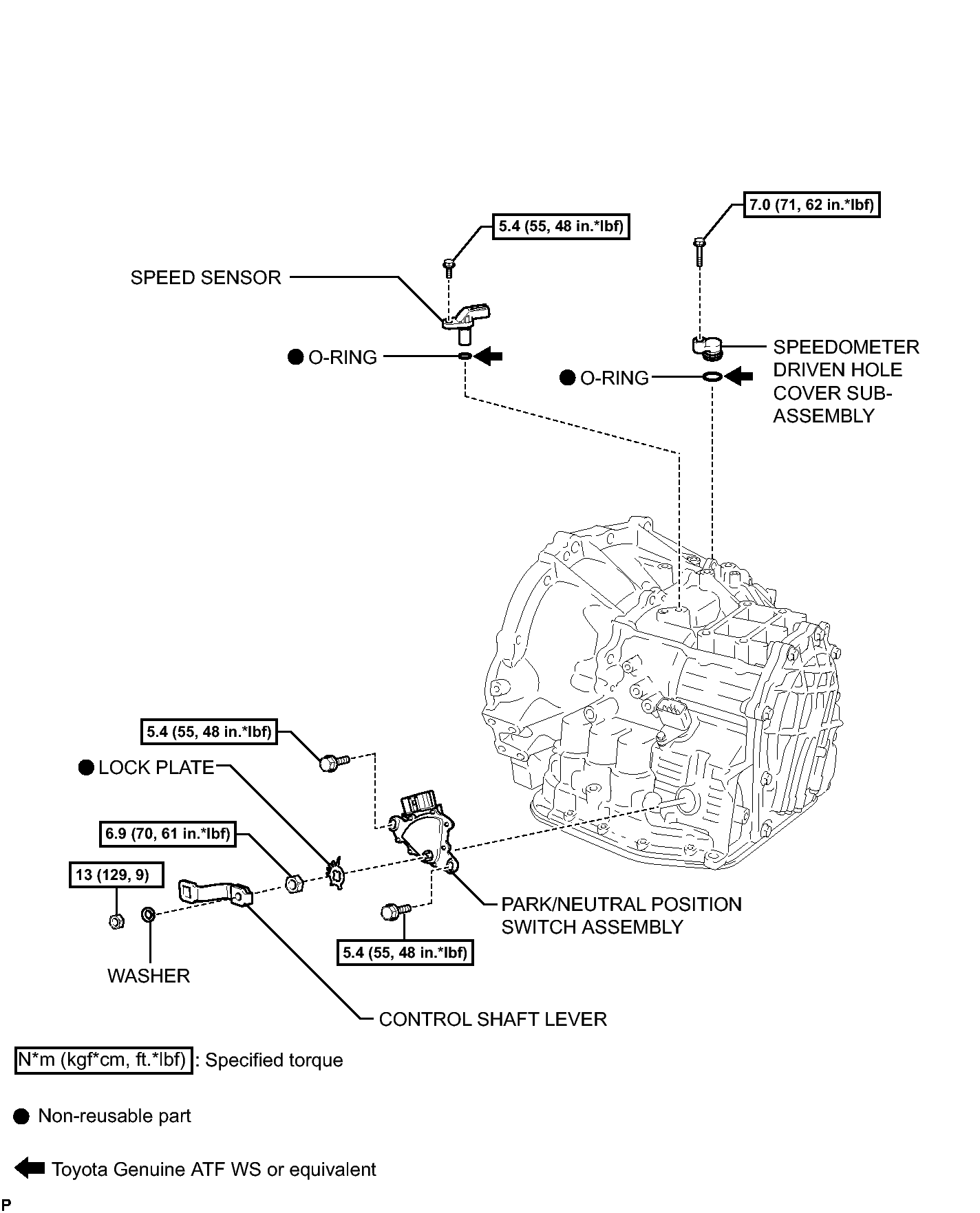

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components With Torque Specifications (8 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components (9 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 1: Exploded View Of Automatic Transaxle Unit Replacement Components (10 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
