Intermediate Shaft: Components: Illustration

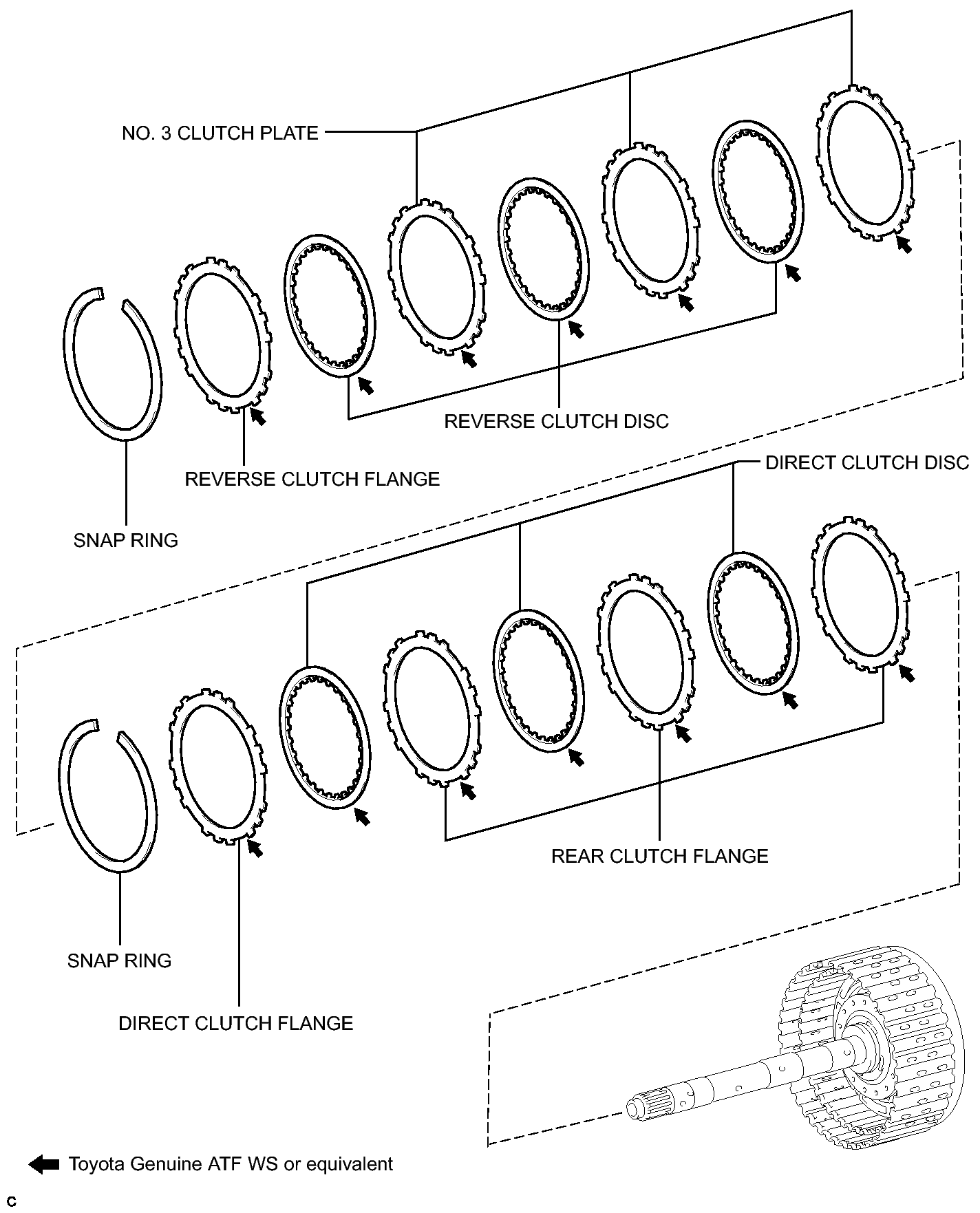

Fig 1: Exploded View Of Intermediate Shaft Replacement Components (1 Of 2)
GTY165322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

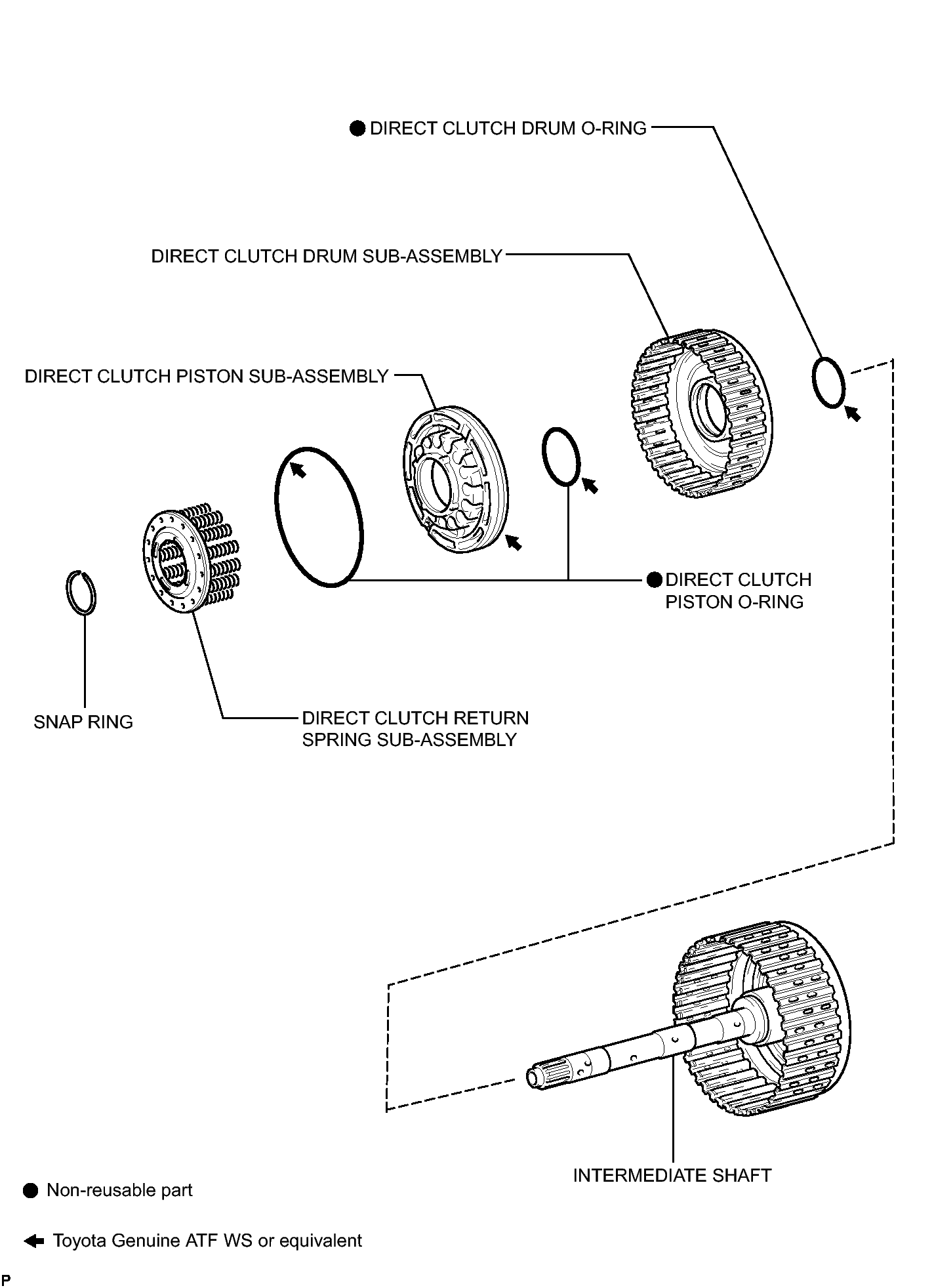

Fig 1: Exploded View Of Intermediate Shaft Replacement Components (2 Of 2)
GTY165382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
