Transmission Control Cable Assembly: Components: Illustration

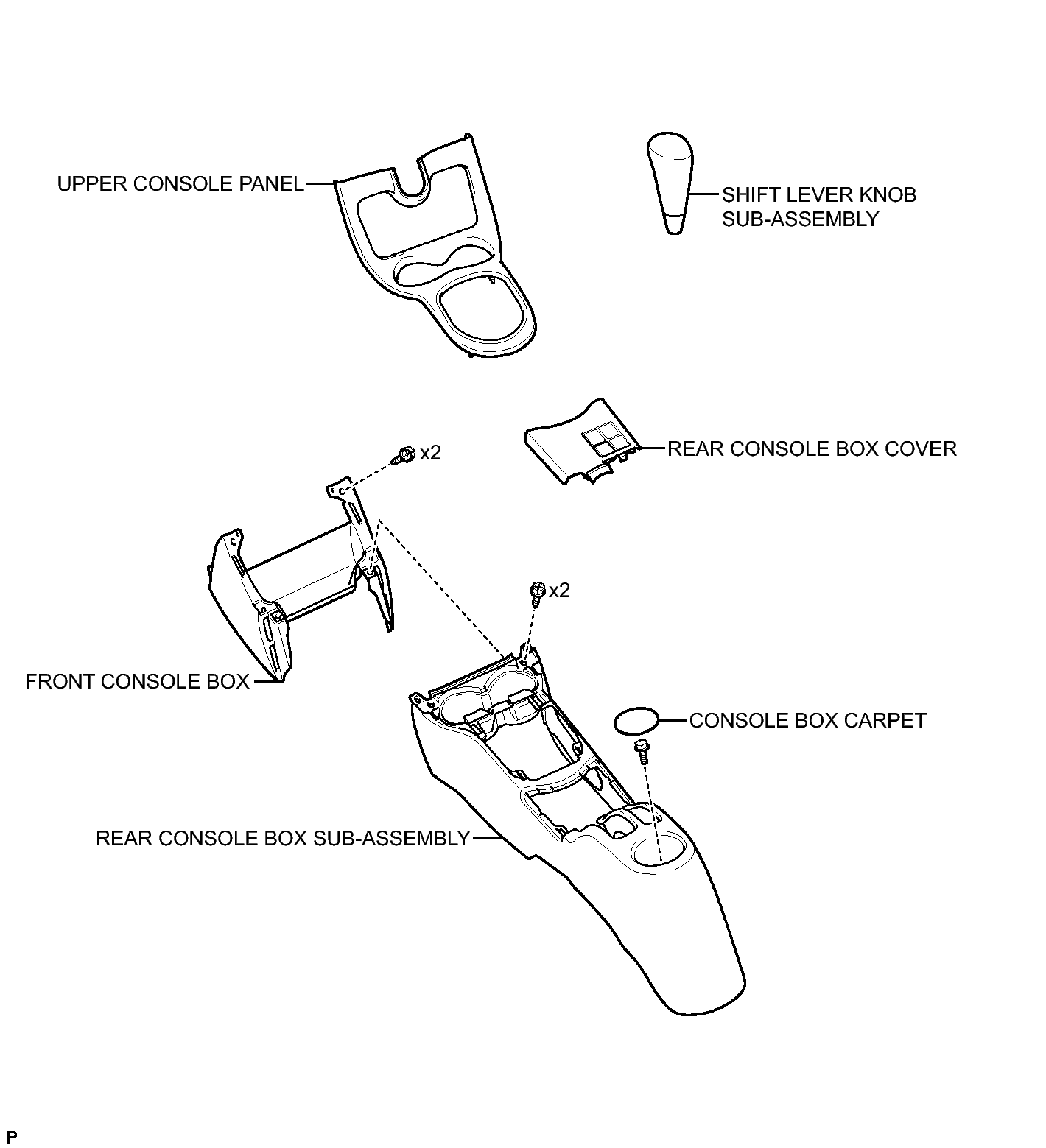

Fig 1: Identifying Transmission Control Cable Assembly Replacement Components (1 Of 2)
GTY157971Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


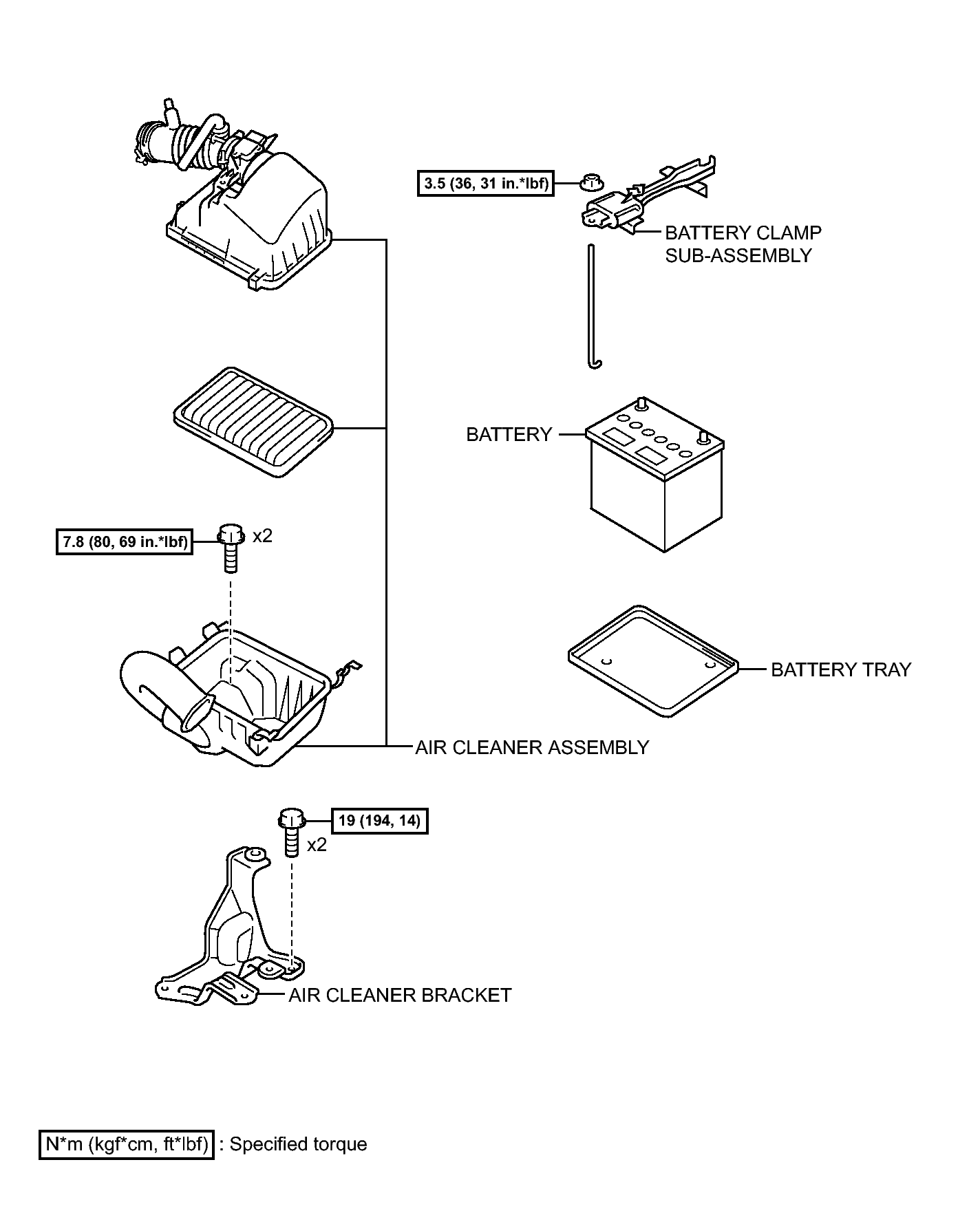

Fig 1: Identifying Transmission Control Cable Assembly Replacement Components With Torque Specifications (2 Of 3)
GTY157973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

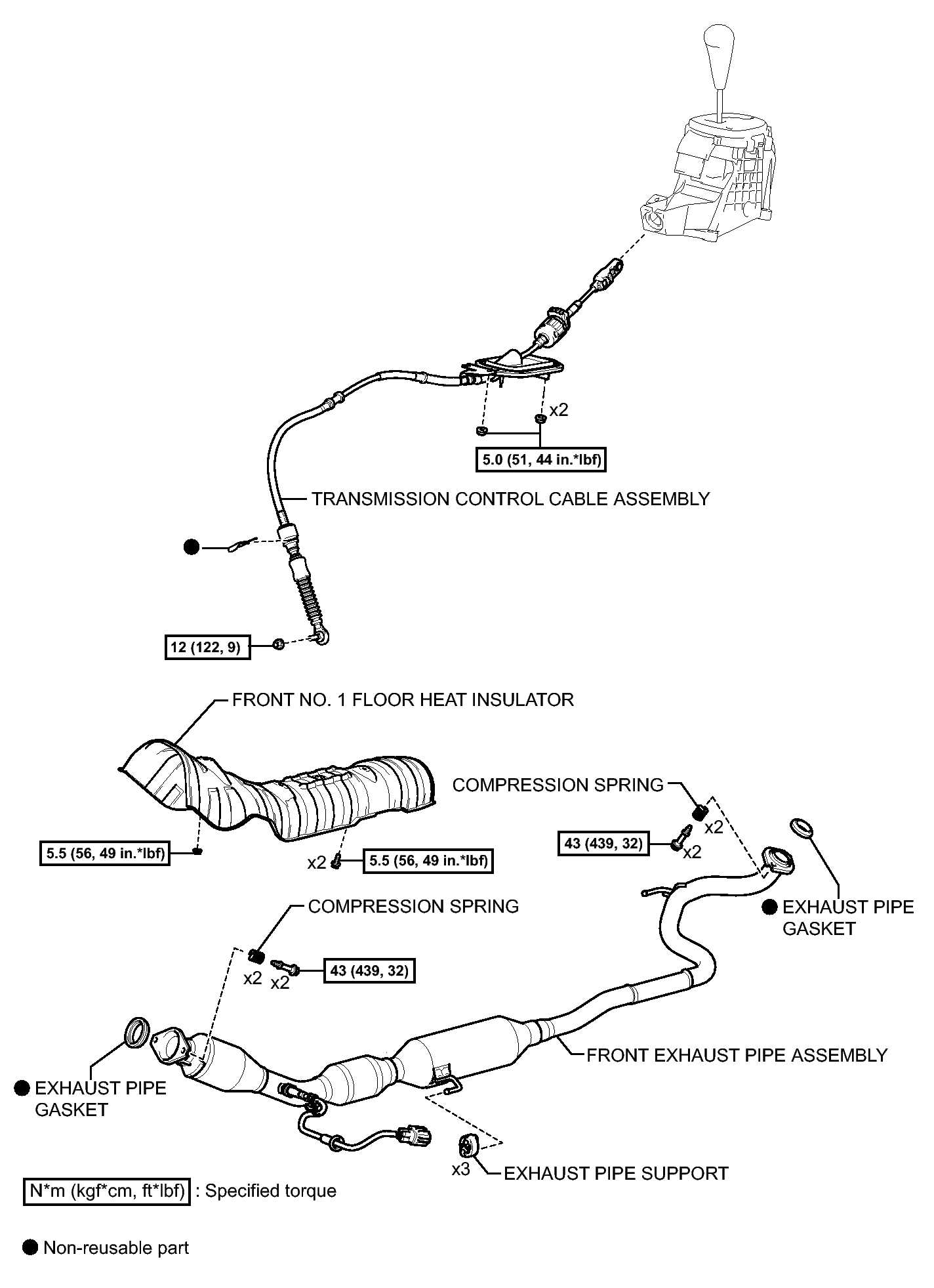

Fig 1: Identifying Transmission Control Cable Assembly Replacement Components With Torque Specifications (3 Of 3)
GTY157974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
