Removal

2ZR-FE ENGINE CONTROL SYSTEM: CAMSHAFT POSITION SENSOR: REMOVAL

1. REMOVE NO. 2 CYLINDER HEAD COVER Removal

2. REMOVE CAMSHAFT POSITION SENSOR

(a) Disconnect the duty vacuum switching valve connector and 3 engine wire harness clamps (for exhaust camshaft side).

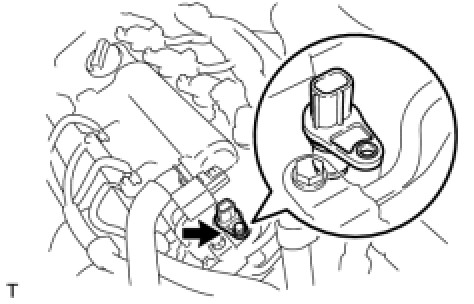

(b) Remove the bolt and remove the camshaft position sensor (for exhaust camshaft side).

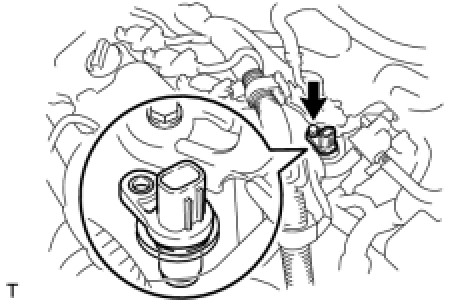

(c) Remove the bolt and remove the camshaft position sensor (for intake camshaft side).
