Air Bag Control Module
>>
Locations
>>
In Occupant Classification System
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
In Occupant Classification System

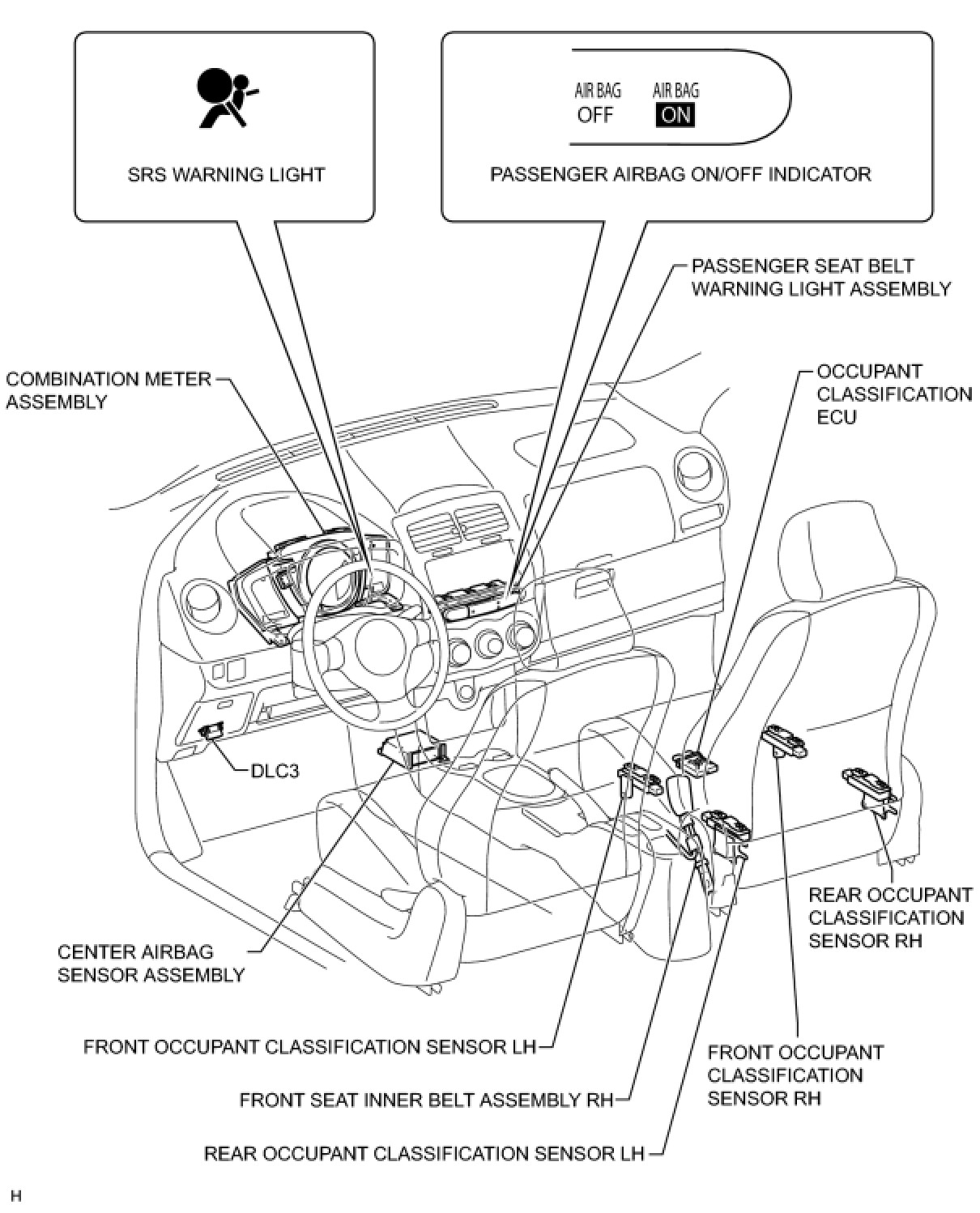

SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION SYSTEM: PARTS LOCATION
