Manual Transaxle Unit: Disassembly: Disassembly

  1. REMOVE MANUAL TRANSMISSION FILLER PLUG
    Fig 1: Identifying Manual Transmission Filler Plug
    GTY159240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the manual transmission filler plug and gasket from the manual transmission case.
  2. REMOVE DRAIN PLUG SUB-ASSEMBLY
    Fig 2: Identifying Drain Plug Sub-Assembly
    GTY159241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the drain plug sub-assembly and gasket from the manual transmission case.
  3. REMOVE SPEEDOMETER DRIVEN HOLE COVER SUB-ASSEMBLY
    1. Remove the bolt and speedometer driven hole cover sub-assembly from the transaxle case.
    2. Remove the O-ring from the speedometer driven hole cover sub-assembly.
  4. REMOVE BACK-UP LIGHT SWITCH ASSEMBLY
    Fig 3: Locating Back-Up Light Switch With SST
    GTY165698Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Separate the back-up light switch wire harness from the 2 clamps.
    2. Using SST, remove the back-up light switch assembly and gasket from the manual transmission case.
      • SST: 09817-16011
  5. REMOVE SELECTING BELL CRANK ASSEMBLY
    Fig 4: Locating Selecting Bell Crank Assembly
    GTY162538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 bolts and nut and remove the selecting bell crank assembly from the manual transmission case.
    2. Remove the control shift lever bush.
  6. REMOVE FLOOR SHIFT CONTROL SHIFT LEVER
    Fig 5: Locating Floor Shift Control Shift Lever Nut
    GTY158813Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the nut and spring washer.
    2. Using a brass bar and a hammer, remove the lock pin.
      Fig 6: Identifying Brass Bar, Hammer & Lock Pin
      GTY158812Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the floor shift control shift lever.
  7. REMOVE SHIFT LEVER DAMPER
    Fig 7: Locating Spring Washer And Nut
    GTY158811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the nut and spring washer.
    2. Using a brass bar and a hammer, remove the lock pin.

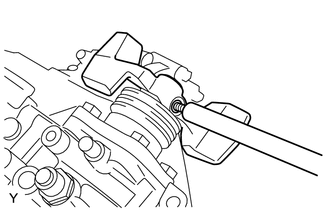

      Fig 8: Identifying Brass Bar, Hammer & Lock Pin
      GTY162973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the shift lever damper.
  8. FIX MANUAL TRANSAXLE ASSEMBLY
    Fig 9: Identifying Manual Transaxle Assembly
    GTY164156Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Place the manual transaxle assembly on wooden blocks.
  9. REMOVE NO. 1 LOCK BALL ASSEMBLY
    Fig 10: Locating No. 1 Lock Ball Assembly
    GTY158810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the No. 1 lock ball assembly from the manual transmission case.
  10. REMOVE SHIFT GUIDE PIN
    Fig 11: Locating Shift Gate Pin & Washer
    GTY165134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the shift guide pin and washer from the transmission case.
  11. REMOVE CONTROL SHAFT COVER
    Fig 12: Locating Control Shaft Cover Bolts
    GTY166015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 4 bolts, control shaft cover and gasket from the manual transmission case.

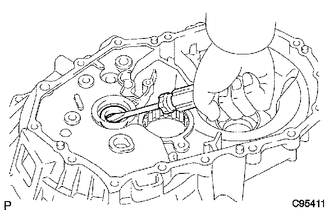

  12. REMOVE CONTROL SHAFT COVER OIL SEAL
    Fig 13: Identifying Screwdriver & Control Shaft Cover Oil Seal
    GTY158809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver, remove the control shaft cover oil seal from the control shaft cover.
  13. REMOVE SHIFT AND SELECT LEVER SHAFT ASSEMBLY
    Fig 14: Identifying Shift & Select Lever Shaft Assembly
    GTY164028Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the shift and select lever shaft assembly from the transmission case.
  14. REMOVE MANUAL TRANSMISSION CASE COVER SUB-ASSEMBLY
    Fig 15: Identifying Manual Transmission Case Cover Sub-Assembly
    GTY159242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 9 bolts.
    2. Using a plastic hammer, carefully tap the projections of the manual transmission case cover sub-assembly to remove the manual transmission case cover from the manual transmission case.
      Fig 16: Locating Manual Transmission Case
      GTY158424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the manual transmission case.

  15. REMOVE MANUAL TRANSMISSION OUTPUT SHAFT REAR SET NUT
    Fig 17: Loosening Staked Part Of Manual Transmission Output Shaft Rear Set Nut
    GTY159198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a chisel and a hammer, loosen the staked part of the manual transmission output shaft rear set nut.
    2. Engage 2 gears simultaneously to lock the transmission.

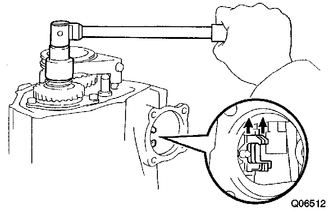

      Fig 18: Removing Manual Transmission Output Shaft Rear Set Nut
      GTY156562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the manual transmission output shaft rear set nut.
    4. Disengage the 2 gears.

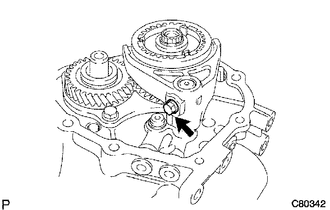

  16. REMOVE NO. 3 GEAR SHIFT FORK
    Fig 19: Locating Gear Shift Fork Lock Bolt
    GTY165942Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the gear shift fork lock bolt from the No. 3 gear shift fork.
    2. Remove the No. 3 transmission hub sleeve with the No. 3 gear shift fork from the No. 3 transmission clutch hub.
      Fig 20: Removing Transmission Hub Sleeve No. 3

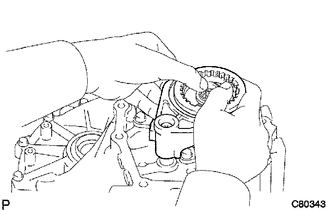

      GTY162268Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSPECT 5TH GEAR THRUST CLEARANCE
    Fig 21: Measuring 5Th Gear Thrust Clearance
    GTY167003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a dial indicator, measure the 5th gear thrust clearance.

      Standard clearance

      0.10 to 0.55 mm (0.0039 to 0.0217 in.)

      Maximum clearance

      0.55 mm (0.0217 in.)

      If the clearance exceeds the maximum, replace the No. 3 transmission clutch hub, 5th gear or input shaft rear radial ball bearing.

  18. INSPECT 5TH GEAR RADIAL CLEARANCE
    Fig 22: Measuring 5Th Gear Radial Clearance
    GTY162215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a dial indicator, measure the 5th gear radial clearance.

      Standard clearance

      JTEKT made

      0.015 to 0.058 mm (0.0006 to 0.0023 in.)

      NSK made

      0.015 to 0.056 mm (0.0006 to 0.0022 in.)

      Maximum clearance

      JTEKT made

      0.058 mm (0.0023 in.)

      NSK made

      0.056 mm (0.0022 in.)

      If the clearance exceeds the maximum, replace the 5th gear, 5th gear needle roller bearing or input shaft.

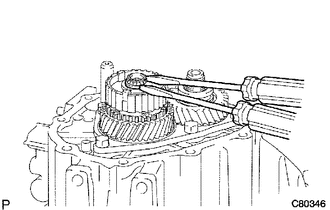

  19. REMOVE NO. 3 TRANSMISSION CLUTCH HUB
    1. Using 2 screwdrivers and a hammer, tap out the snap ring.
      Fig 23: Removing Snap Ring
      GTY159199Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use a piece of cloth to keep the snap ring from flying off.

    2. Using a screwdriver, remove the synchromesh shifting key spring from the No. 3 transmission clutch hub.

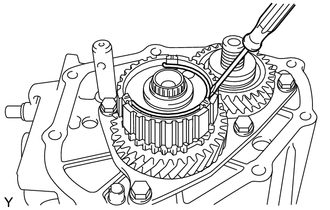

      Fig 24: Removing Synchromesh Shifting Key Spring From No. 3 Transmission Clutch Hub
      GTY158414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using SST, remove the No. 3 transmission clutch hub, 5th gear, and No. 3 synchronizer ring from the input shaft.
      Fig 25: Removing No. 3 Transmission Clutch Hub, 5th Gear, And No. 3 Synchronizer Ring
      GTY157688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-50013
        • 09951-05010
        • 09952-05010
        • 09953-05020
        • 09954-05031
        • 09957-04010
      • SST: 09950-60010
        • 09951-00200
    4. Remove the 3 synchromesh shifting keys and synchromesh shifting key spring from the No. 3 transmission clutch hub.
      Fig 26: Identifying Synchromesh Shifting Keys And Synchromesh Shifting Key Spring
      GTY157689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. REMOVE 5TH GEAR NEEDLE ROLLER BEARING
    Fig 27: Identifying 5Th Gear Needle Roller Bearing
    GTY162217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 5th gear needle roller bearing and 5th gear bearing spacer from the input shaft.
  21. REMOVE 5TH DRIVEN GEAR
    Fig 28: Identifying SST & 5th Driven Gear

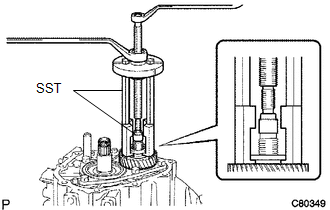

    GTY159200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using SST, remove the 5th driven gear from the output shaft.
      • SST: 09950-30012
        • 09951-03010
        • 09953-03010
        • 09954-03010
        • 09955-03021
      • SST: 09950-60010
        • 09951-00180
  22. REMOVE BEARING RETAINER REAR
    Fig 29: Identifying Bearing Retainer Rear Bolts
    GTY166916Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 5 bolts and bearing retainer rear from the manual transmission case.
  23. REMOVE OUTPUT SHAFT REAR BEARING HOLE SNAP RING
    Fig 30: Removing Output Shaft Rear Bearing Hole Snap Ring
    GTY159201Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a snap ring expander, remove the output shaft rear bearing hole snap ring from the output shaft.
  24. REMOVE INPUT SHAFT REAR BEARING HOLE SNAP RING
    Fig 31: Installing Input Shaft Rear Bearing Hole Snap Ring
    GTY159202Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a snap ring expander, remove the input shaft rear bearing hole snap ring from the input shaft.
  25. REMOVE REVERSE IDLER GEAR SHAFT BOLT
    Fig 32: Locating Reverse Idler Gear Shaft Bolt
    GTY159486Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the reverse idler gear shaft bolt and reverse idler gear shaft gasket from the manual transmission case.
  26. REMOVE SHIFT FORK SHAFT SHAFT SNAP RING
    Fig 33: Identifying No. 2 Gear Shift Fork Shaft

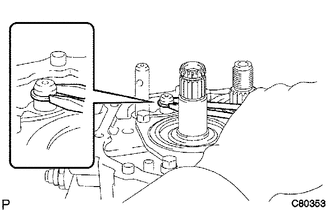

    GTY159203Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using 2 screwdrivers and a hammer, tap out the snap ring from the No. 2 gear shift fork shaft.

      HINT:

      Use a piece of cloth to keep the snap ring from flying off.

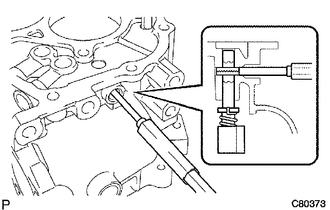

  27. REMOVE SHIFT DETENT BALL
    Fig 34: Identifying Shift Detent Ball Plugs
    GTY165097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a hexagon wrench, remove the 2 shift detent ball plugs from the manual transmission case.
    2. Using a magnetic finger, remove the 2 No. 1 shift detent ball spring seats, 2 shift detent ball springs and 2 shift detent balls from the manual transmission case.

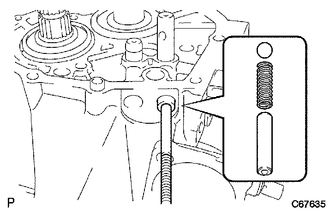

      Fig 35: Removing Seats, Springs And Shift Detent Balls From Manual Transmission Case
      GTY159485Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a hexagon wrench, remove the shift detent ball plug from the front transaxle case.
      Fig 36: Identifying Shift Detent Ball Plug
      GTY159204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a magnetic finger, remove the seat, spring and ball from the front transaxle case.
      Fig 37: Identifying Seat, Spring & Ball

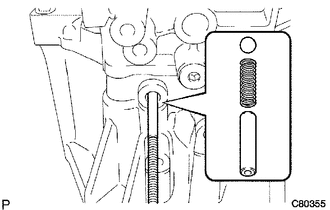

      GTY165950Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE NO. 2 LOCK BALL ASSEMBLY
    Fig 38: Identifying Lock Ball Assembly No. 1
    GTY166431Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a hexagon wrench, remove the No. 2 lock ball assembly from the manual transmission case.
  29. REMOVE MANUAL TRANSMISSION CASE
    Fig 39: Locating Transaxle Case Side Bolts
    GTY159205Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 3 bolts from the front transaxle case.
    2. Remove the 13 bolts from the manual transmission case.
      Fig 40: Locating Manual Transmission Side Bolts
      GTY166834Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a brass bar and a hammer, carefully tap the projections of the manual transmission case to remove the transmission case from the transaxle case.
      Fig 41: Tapping Projections Of Manual Transmission Case Using Brass Bar & Hammer

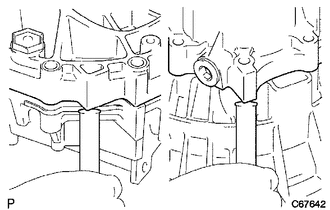

      GTY164403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      Do not damage the manual transmission case and transaxle case.

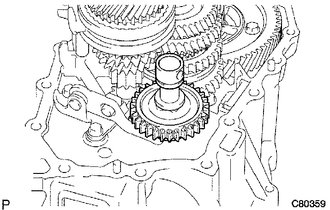

  30. REMOVE REVERSE IDLER GEAR SUB-ASSEMBLY
    Fig 42: Identifying Reverse Idler Gear Sub-Assembly
    GTY159206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the reverse idler gear sub-assembly, thrust washer and reverse idler gear shaft from the front transaxle case.
  31. REMOVE REVERSE SHIFT ARM BRACKET ASSEMBLY
    Fig 43: Locating Reverse Shift Arm Bracket Assembly Bolts
    GTY159207Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 bolts and reverse shift arm bracket assembly from the front transaxle case.
  32. REMOVE NO. 2 GEAR SHIFT FORK SHAFT
    Fig 44: Locating Shift Lock Bolts
    GTY163753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the 2 bolts from the No. 2 gear shift fork and No. 1 gear shift head.
    2. Remove the No. 2 gear shift fork shaft and No. 1 gear shift head from the front transaxle case.

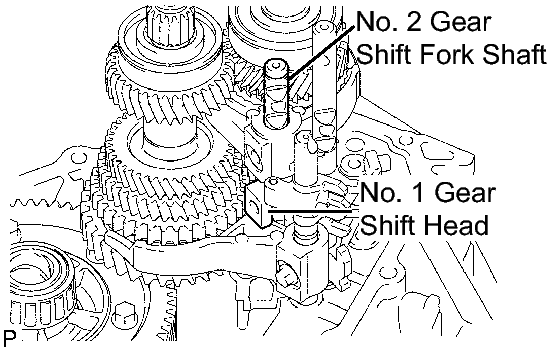

      Fig 45: Identifying No. 2 Gear Shift Fork Shaft And No. 1 Gear Shift Head
      GTY159208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

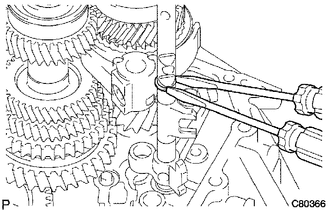

  33. REMOVE NO. 1 GEAR SHIFT FORK SHAFT

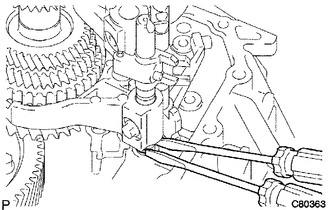

    Fig 46: Tapping Out Snap Ring
    GTY165694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using 2 screwdrivers and a hammer, tap out the snap ring.

      HINT:

      Use a piece of cloth to keep the snap ring from flying off.

    2. Remove the shift fork set bolt and No. 1 gear shift fork shaft from No. 1 gear shift fork.
      Fig 47: Identifying No. 1 Gear Shift Fork Shaft And No. 1 Gear Shift Fork
      GTY159209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the No. 1 gear shift fork.
      Fig 48: Identifying No. 1 Gear Shift Fork
      GTY159210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  34. REMOVE NO. 3 GEAR SHIFT FORK SHAFT
    Fig 49: Identifying Screwdrivers, Hammer & Snap Ring
    GTY159211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using 2 screwdrivers and a hammer, tap out the snap ring from the No. 3 gear shift fork shaft.

      HINT:

      Use a piece of cloth to keep the snap ring from flying off.

    2. Remove the No. 3 shift fork shaft together with the reverse shift fork and gear shift fork No. 2 from the manual transaxle case.

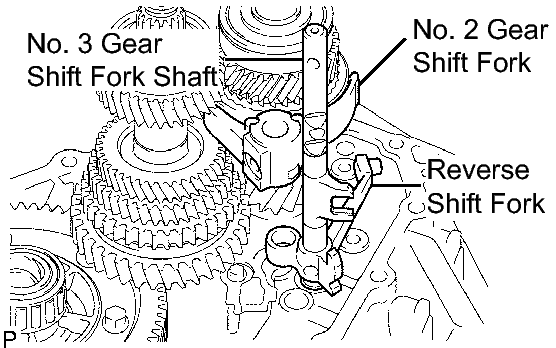

      Fig 50: Identifying No. 3 Shift Fork Shaft And Gear Shift Fork No. 2
      GTY159212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a magnetic finger, remove the 2 reverse shift fork balls from the reverse shift fork.
      Fig 51: Identifying Reverse Shift Fork
      GTY165697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using 2 screwdrivers and a hammer, tap the snap ring out of the No. 3 shift fork shaft.
      Fig 52: Identifying Snap Ring Out Of Shift Fork Shaft No. 3

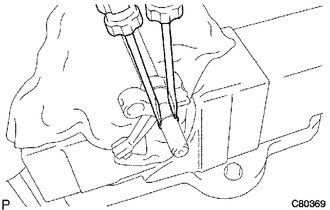

      GTY159213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use a piece of cloth to keep the snap ring from flying off.

    5. Remove the reverse shift fork from the No. 3 gear shift fork shaft.
  35. REMOVE INPUT SHAFT ASSEMBLY
    Fig 53: Identifying Input Shaft Assembly
    GTY164235Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the input shaft assembly and output shaft assembly from the front transaxle case.
  36. REMOVE DIFFERENTIAL CASE ASSEMBLY
    Fig 54: Identifying Differential Case Assembly
    GTY165423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the differential case assembly from the front transaxle case.
  37. REMOVE MANUAL TRANSAXLE CASE RECEIVER
    Fig 55: Identifying Manual Transaxle Case Receiver & Bolts
    GTY159488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt and manual transaxle case receiver from the front transaxle case.
  38. REMOVE REVERSE RESTRICT PIN ASSEMBLY

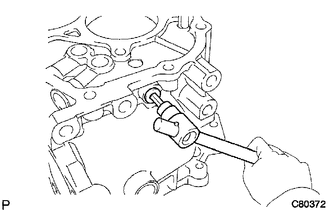

    Fig 56: Removing Reverse Restrict Pin Assembly
    GTY159214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a hexagon wrench, remove the reverse restrict pin plug from the manual transmission case.
    2. Using a pin punch (5 mm) and a hammer, drive out the slotted spring pin and remove the reverse restrict pin assembly from the manual transmission case.
      Fig 57: Identifying Pin Punch, Hammer & Reverse Restrict Pin Assembly
      GTY159215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  39. REMOVE NO. 1 OIL RECEIVER PIPE

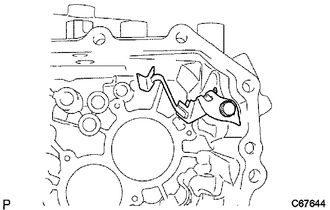

    Fig 58: Identifying Oil Receiver Pipe No. 1 & Bolts
    GTY159487Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt and No. 1 oil receiver pipe from the manual transmission case.
      NOTE:

      Do not damage the No. 1 oil receiver pipe.

  40. REMOVE NO. 2 OIL RECEIVER PIPE

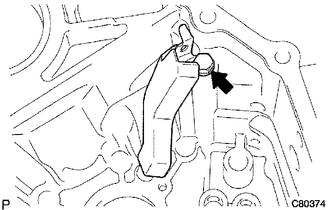

    Fig 59: Identifying Oil Receiver Pipe No. 2 & Bolts
    GTY165819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt and No. 2 oil receiver pipe from the manual transmission case.
      NOTE:

      Do not damage the No. 2 oil receiver pipe.

  41. REMOVE BEARING LOCK PLATE
    Fig 60: Locating Bearing Lock Plate Bolt
    GTY159489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the bolt and bearing lock plate from the front transaxle case.
  42. REMOVE TRANSMISSION MAGNET
    Fig 61: Locating Transmission Magnet
    GTY159490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the transmission magnet from the front transaxle case.
  43. REMOVE INPUT SHAFT FRONT BEARING

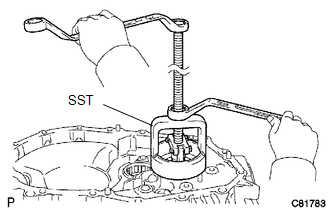

    Fig 62: Removing Input Shaft Front Bearing
    GTY163852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using SST, remove the input shaft front bearing from the front transaxle case.
      • SST: 09612-65014
        • 09612-01050
        • 09612-01060
  44. REMOVE FRONT TRANSAXLE CASE OIL SEAL
    Fig 63: Removing Front Transaxle Case Oil Seal
    GTY163879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver, remove the front transaxle case oil seal from the transaxle case.
  45. REMOVE OUTPUT SHAFT FRONT BEARING

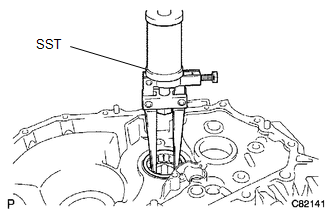

    Fig 64: Identifying SST & Output Shaft Front Bearing
    GTY167018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using SST, remove the output shaft front bearing from the front transaxle case.
      • SST: 09308-00010
      NOTE:

      Do not apply excessive force to the front transaxle case when installing SST.

  46. REMOVE OUTPUT SHAFT COVER

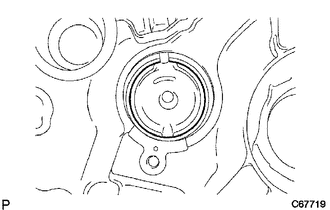

    Fig 65: Identifying Output Shaft Cover
    GTY164587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the output shaft cover from the front transaxle case.
  47. REMOVE FR DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING

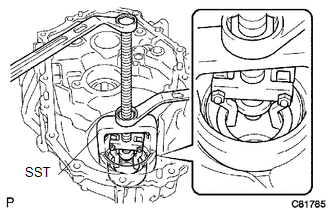

    Fig 66: Identifying SST & Front Differential Case Front Tapered Roller Bearing (Outer Race)
    GTY159167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using SST, remove the front differential case front tapered roller bearing (outer race) and plate washer from the front transaxle case.
      • SST: 09612-65014
        • 09612-01040
        • 09612-01050
    2. Using SST, remove the front differential case front tapered roller bearing (inner race) from the differential case assembly.
      Fig 67: Identifying SST & Front Differential Case Front Tapered Roller Bearing (Inner Race)
      GTY156962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-00020
      • SST: 09950-00030
      • SST: 09950-40011
        • 09957-04010
      • SST: 09950-60010
        • 09951-00360
      NOTE:

      Do not damage the bearing.

  48. REMOVE TRANSAXLE CASE OIL SEAL
    Fig 68: View Of Transaxle Case Oil Seal Removal Procedure
    GTY163071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using SST and a hammer, remove the transaxle case oil seal from the front transaxle case.
      • SST: 09950-60010
        • 09951-00530
      • SST: 09950-70010
        • 09951-07150
  49. REMOVE FR DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING

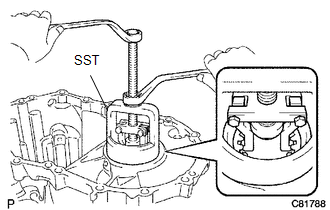

    Fig 69: Identifying SST & Front Differential Case Rear Tapered Roller Bearing (Outer Race)
    GTY159168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using SST, remove the front differential case rear tapered roller bearing (outer race) and plate washer from the transmission case.
      • SST: 09612-65014
        • 09612-01040
        • 09612-01050
    2. Using SST, remove the front differential case rear tapered roller bearing (inner race) from the front differential case.
      Fig 70: Identifying SST & Front Differential Case Rear Tapered Roller Bearing (Inner Race)
      GTY159174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09950-40011
        • 09951-04010
        • 09952-04010
        • 09953-04020
        • 09954-04010
        • 09955-04061
        • 09957-04010
        • 09958-04011
      • SST: 09950-60010
        • 09951-00360
  50. REMOVE TRANSMISSION CASE OIL SEAL

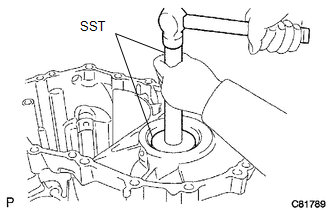

    Fig 71: Removing Transmission Case Oil Seal
    GTY159169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using SST and a hammer, drive out the transmission case oil seal from the manual transmission case.
      • SST: 09950-60010
        • 09951-00530
      • SST: 09950-70010
        • 09951-07150
  51. REMOVE SHIFT AND SELECT LEVER SHAFT OIL SEAL

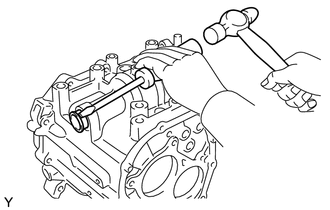

    Fig 72: Removing Shift And Select Lever Shaft Oil Seal
    GTY158816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a screwdriver and hammer, remove the shift and select lever shaft oil seal.
  52. REMOVE SHIFT AND SELECT LEVER SHAFT SLIDE BALL BEARING
    Fig 73: Removing Shift And Select Lever Shaft Slide Ball Bearing
    GTY162907Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using SST and a hammer, remove the shift and select lever shaft slide ball bearing.
      • SST: 09950-60010
        • 09951-00220
      • SST: 09950-70010
        • 09951-07200
scientia non olet · About LEMON Manuals
