Keyless Entry Receiver: Locations

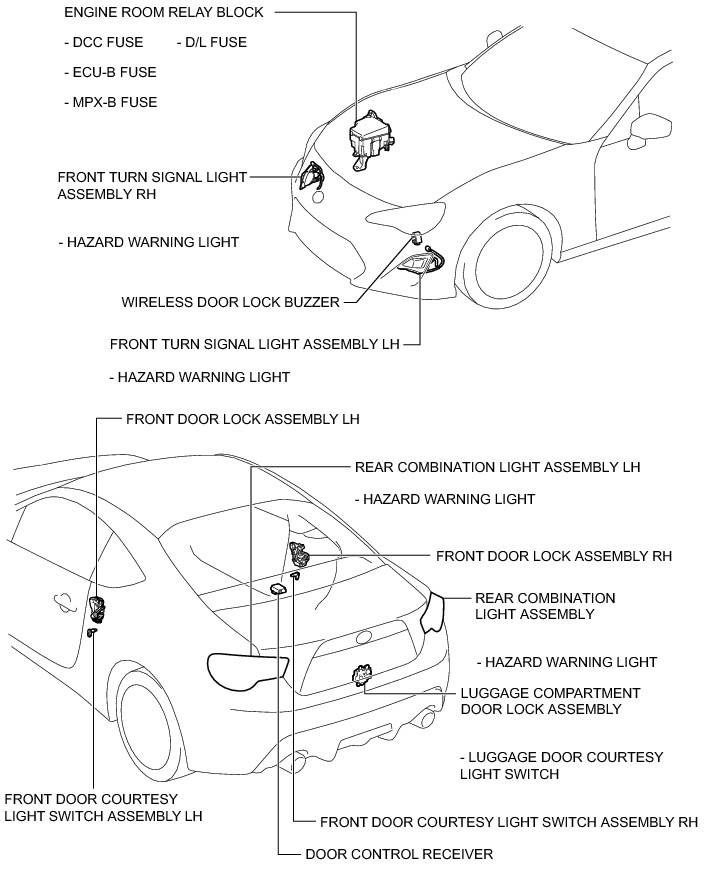

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM: PARTS LOCATION; 2013 MY FR-S [03/2012 -]
