Removal

FA20 FUEL: INJECTOR DRIVER: REMOVAL; 2013 MY FR-S [03/2012 -]

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL Removal

2. REMOVE INJECTOR DRIVER

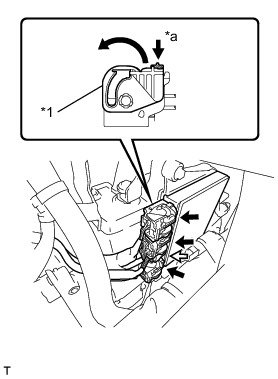

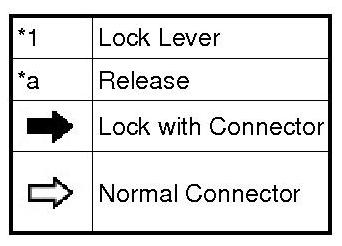

(a) Move the lock levers in the direction indicated by the arrow to release the 3 connector locks. Disconnect the 4 connectors from the injector driver.









(b) Remove the 3 bolts and injector driver.





NOTICE:
Be careful not to drop or strike the injector driver.
