Oil Temperature Sensor For ECM: Testing and Inspection

FA20 ENGINE CONTROL: ENGINE OIL TEMPERATURE SENSOR: INSPECTION; 2013 MY FR-S [03/2012 -]

1. INSPECT ENGINE OIL TEMPERATURE SENSOR

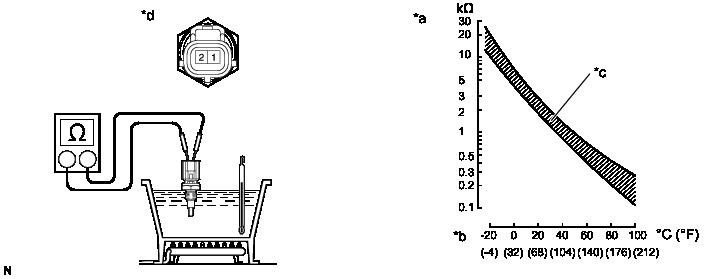

(a) Partially soak the sensor in the water and warm up the water.

(b) Measure the resistance according to the value(s) in the table below.

Standard Resistance:





NOTICE:
When checking the engine oil temperature sensor in water, keep the terminals dry. After the check, wipe the engine oil temperature sensor dry.

If the result is not as specified, replace the engine oil temperature sensor.
