FA20 ENGINE CONTROL: KNOCK SENSOR: INSTALLATION; 2013 MY FR-S [03/2012 -]

1. INSTALL KNOCK SENSOR

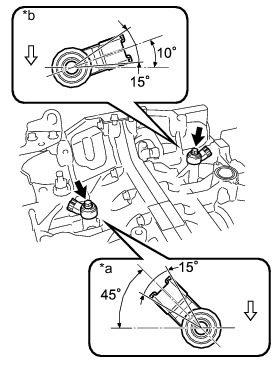

(a) Install the 2 knock sensors onto the cylinder block with the 2 bolts as shown in the illustration.









Torque : 24 Nm (245 kgf-cm, 18 ft-lbf)

(b) Connect the 2 knock sensors connectors.

2. INSTALL INTAKE MANIFOLD
