Removal

FA20 ENGINE CONTROL: KNOCK SENSOR: REMOVAL; 2013 MY FR-S [03/2012 -]

1. REMOVE INTAKE MANIFOLD

Removal

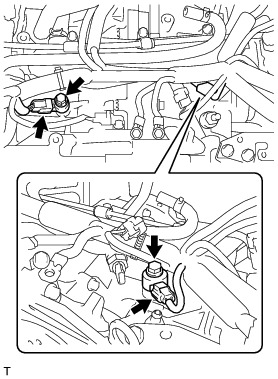

2. REMOVE KNOCK SENSOR

(a) Disconnect the 2 knock sensor connectors.





(b) Remove the 2 bolts and the 2 knock sensor.
