Torque Specifications

Connecting Rod Cap Bolts









Use new bolts

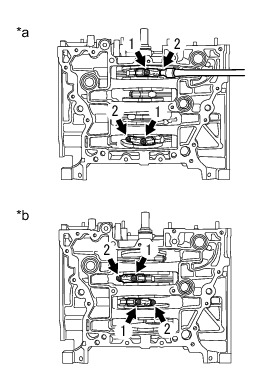

First step 10 Nm (102 kgf-cm, 7 ft-lbf) in order
Second step 25 Nm (255 kgf-cm, 18 ft-lbf) in same order
Third step Tighten an additional 92.5°
