Scion
>>
2013
>>
FR-S F4-2.0L (FA20)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Manual Transmission/Transaxle
>>
System Specifications
>>
Service Data
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Service Data

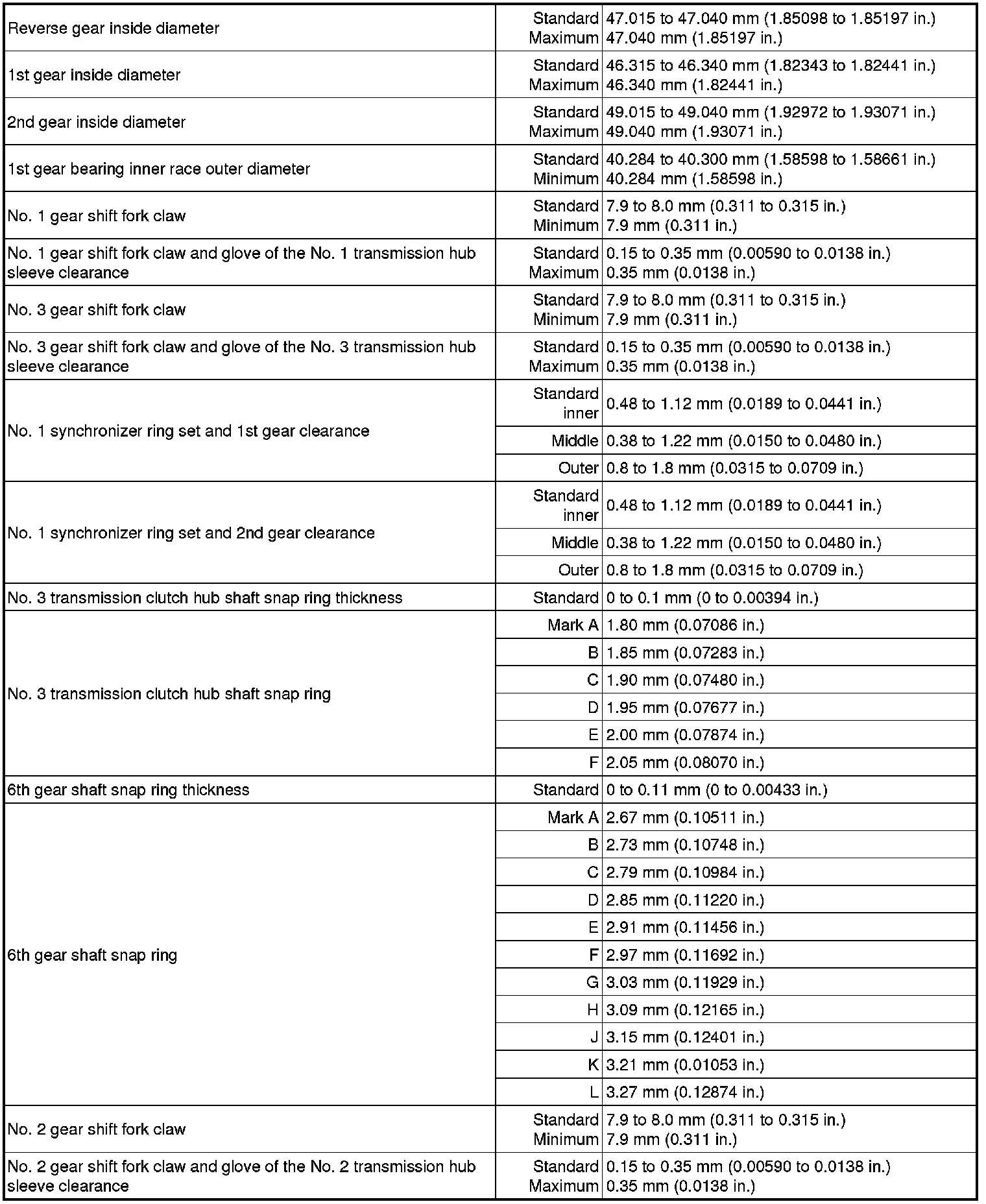

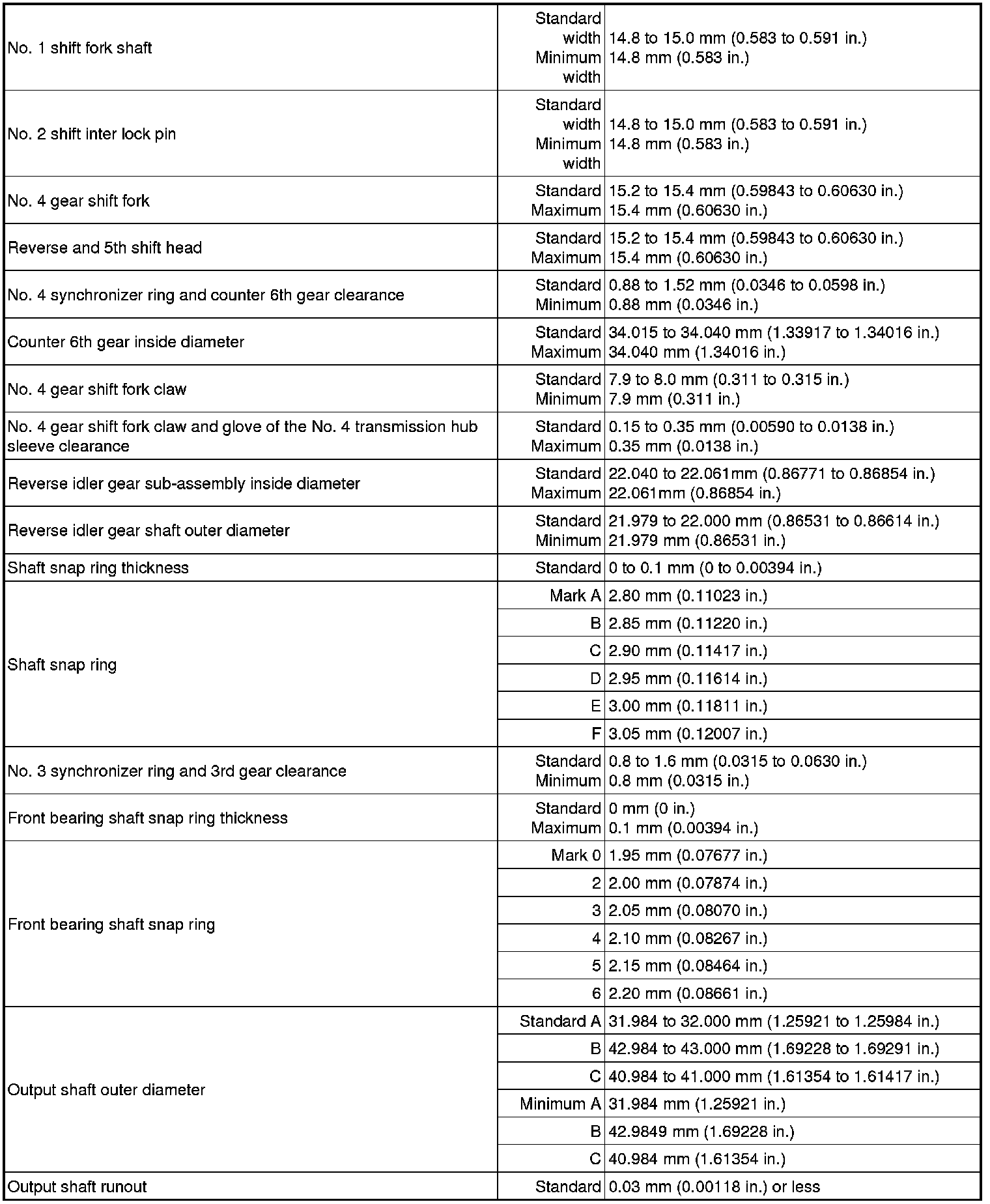

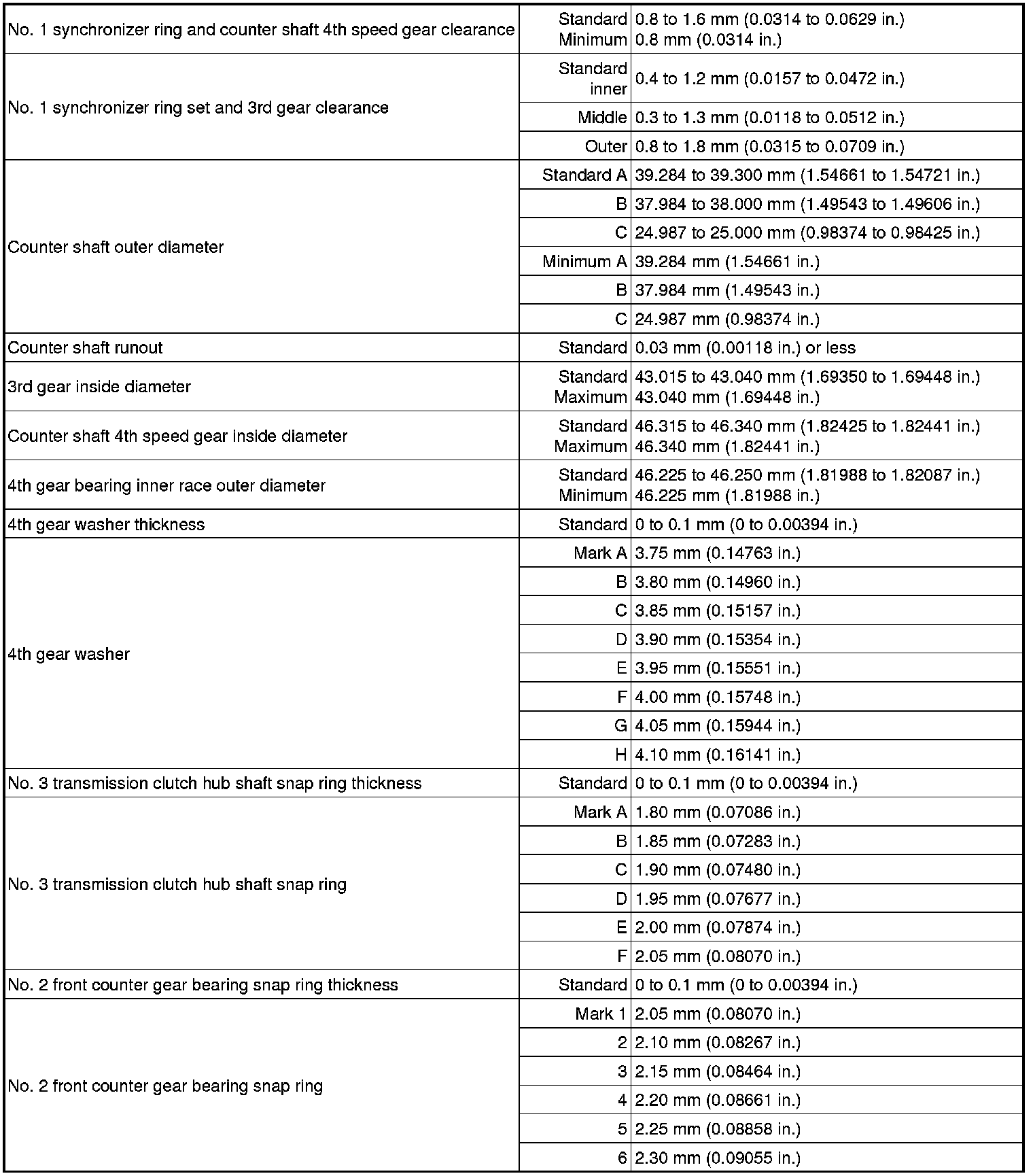

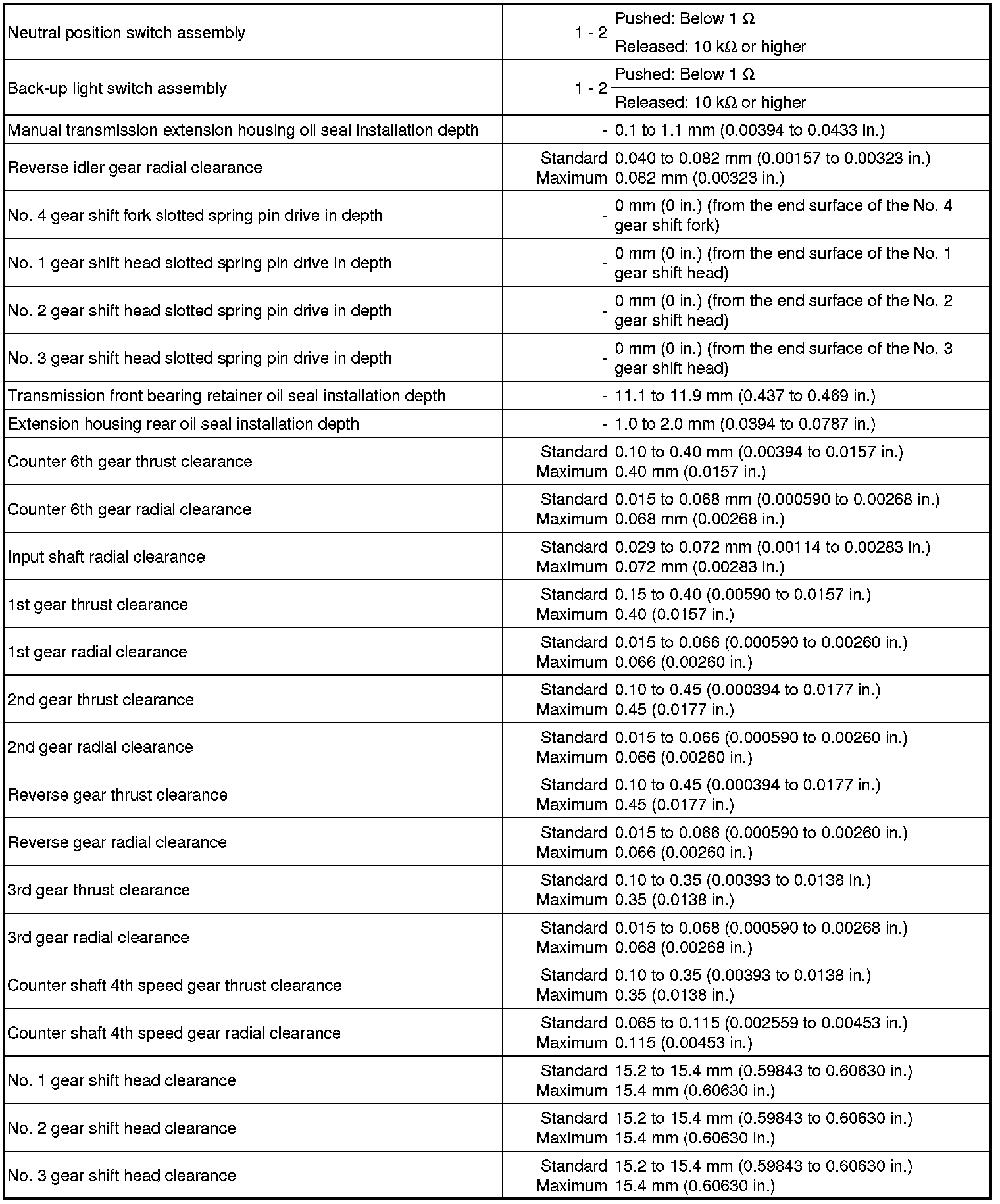

SPECIFICATIONS: TL70 MANUAL TRANSMISSION / TRANSAXLE: SERVICE DATA; 2013 MY FR-S [03/2012 -]
