System Diagram

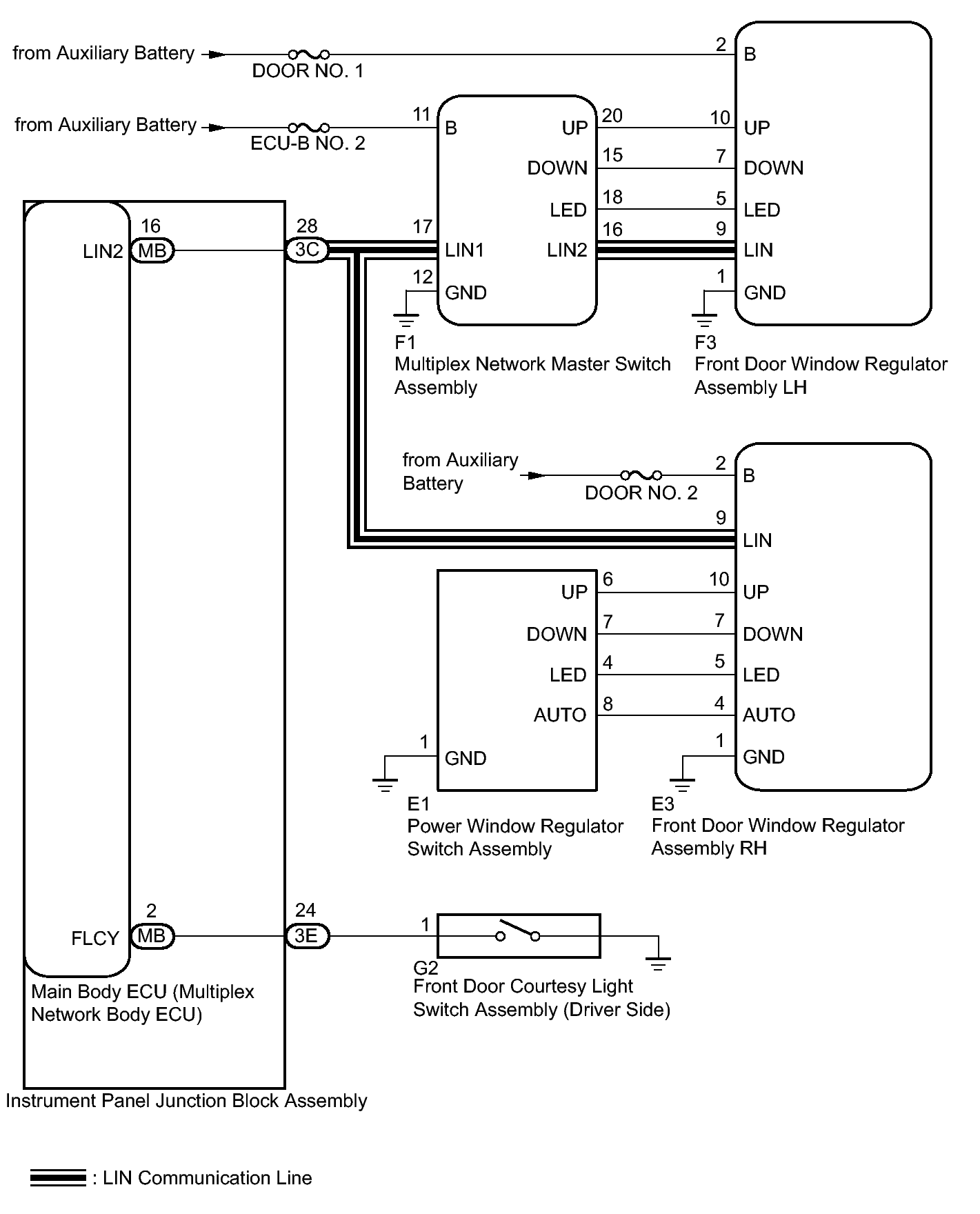

Fig 1: Power Window Control System Diagram
GTY386944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
Multiplex network master switch assembly Front door window regulator assembly LH Power window AUTO UP/DOWN signal LIN
Multiplex network master switch assembly Front door window regulator assembly RH Power window remote UP/DOWN signal LIN
Main Body ECU (Multiplex Network Body ECU)
  • Multiplex network master switch assembly
  • Front door window regulator assembly RH
 Power window operation permission signal LIN
