VSC Off Switch: Inspection: Inspection

  1. INSPECT VSC OFF SWITCH
    1. Measure the resistance according to the value(s) in the table below.
      STANDARD RESISTANCE

      Tester Connection Switch Condition Specified Condition
      3 - 6 Pressed Below 1 Ω
      Not pressed 10 kΩ or higher

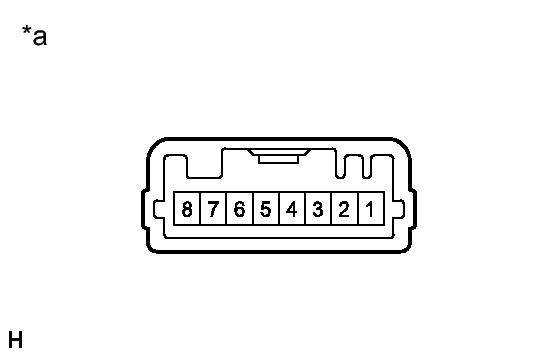

      Fig 1: Identifying VSC Off Switch Connector End View
      GTY312650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Component without harness connected
      (VSC OFF Switch)

      If the result is not as specified, replace the VSC OFF switch.
