Smart Key System (For Start Function) (Diagnostics - Introduction)
>>
SMART KEY SYSTEM (for Start Function)
>>
Parts Location
>>
Illustration
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Parts Location: Illustration

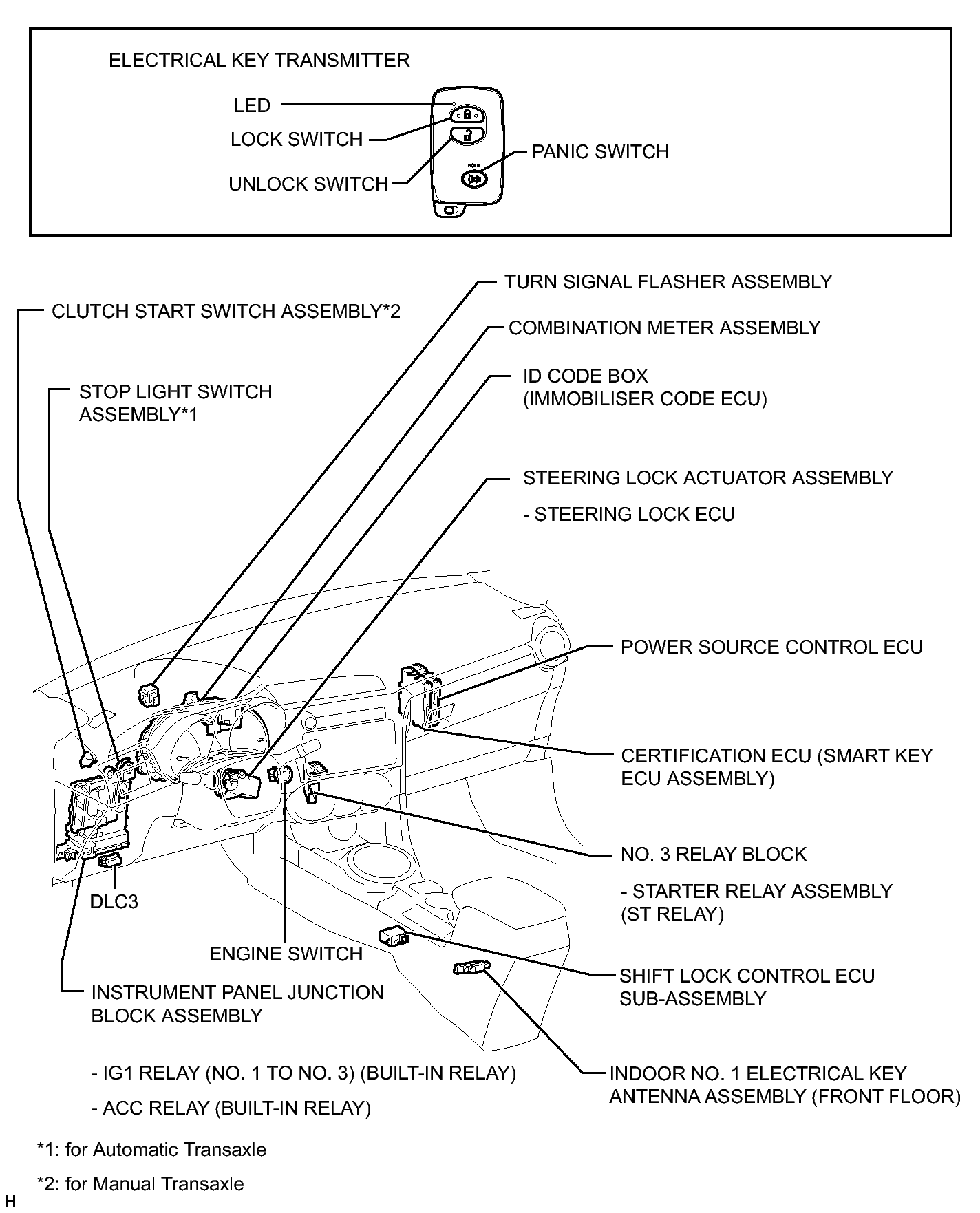

Fig 1: Identifying Smart Key System Components Location (For Start Function) (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

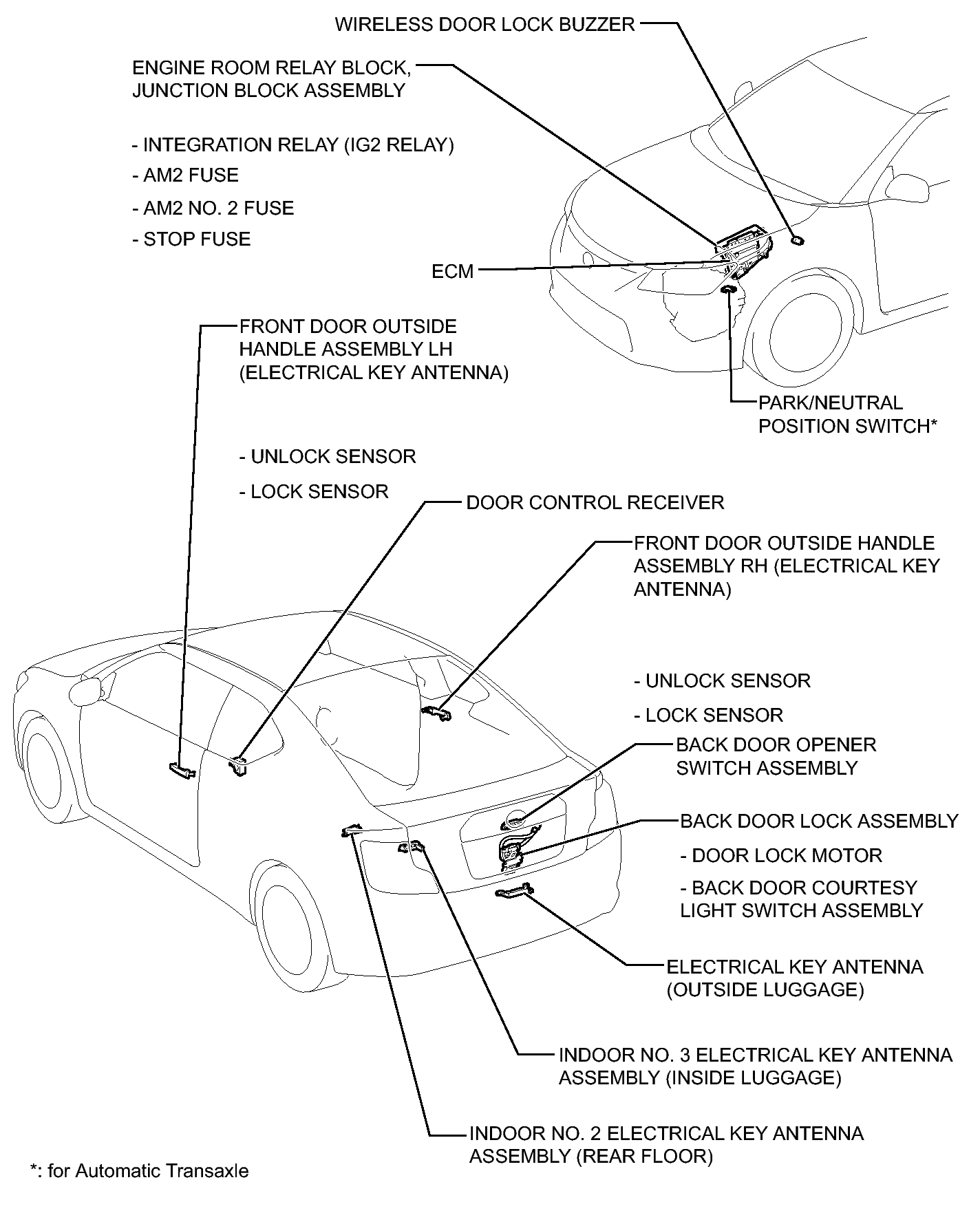

Fig 1: Identifying Smart Key System Components Location (For Start Function) (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 1: Identifying Smart Key System Components Location (For Start Function) (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
