Fuel Pump: Disassembly: Disassembly

NOTE: Do not try to remove the black nylon tube as it is welded to the fuel suction tube assembly. Refer to PRECAUTION .
  1. REMOVE FUEL SENDER GAUGE ASSEMBLY  See step  2
  2. REMOVE FUEL PUMP
    1. Detach the 2 harness clamps.

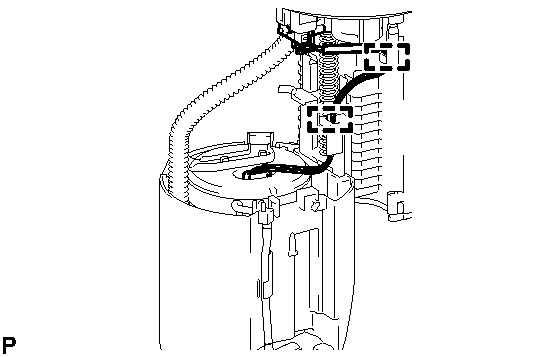

      Fig 1: Disconnecting Harness Clamps
      GTY310488Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector of the fuel pump harness.

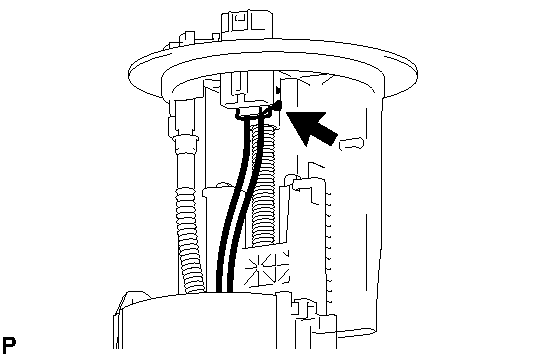

      Fig 2: Location Of Fuel Pump Harness Connector
      GTY311837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Disconnect the fuel pump filter hose.

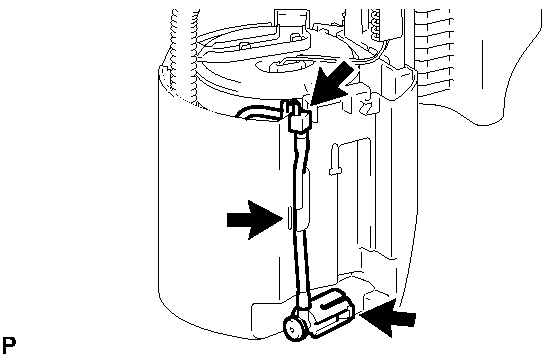

      Fig 3: Identifying Fuel Pump Filter Hose
      GTY311857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a screwdriver with its tip wrapped in protective tape, detach the 2 claws and remove the fuel filter and fuel pump from the fuel sub-tank.

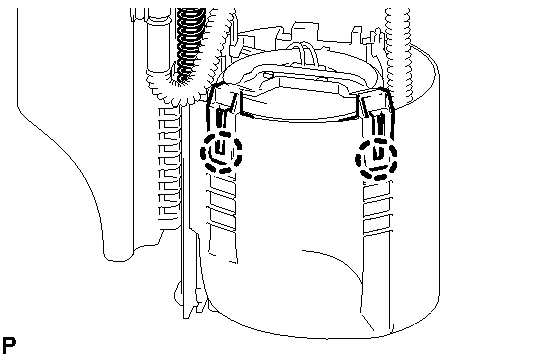

      Fig 4: Identifying Fuel Filter And Fuel Pump With Fuel Sub-Tank
      GTY311858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do not do anything which may separate the fuel tube from either the fuel suction plate or fuel filter assembly, such as applying excessive force to the tube. Refer to PRECAUTION .
    5. Using a screwdriver with its tip wrapped in protective tape, detach the 2 claws and remove the No. 1 fuel suction support.

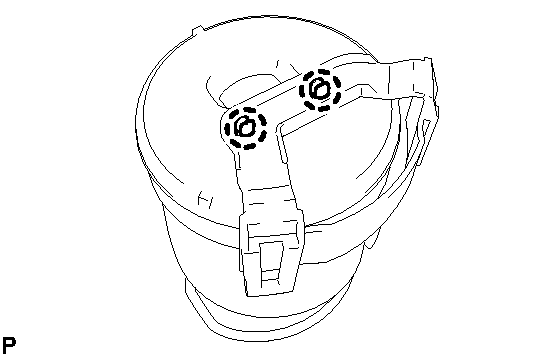

      Fig 5: Identifying No. 1 Fuel Suction Support
      GTY311856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Using a screwdriver with its tip wrapped in protective tape, detach the 5 claws and remove the fuel pump filter and fuel pump from the fuel filter.

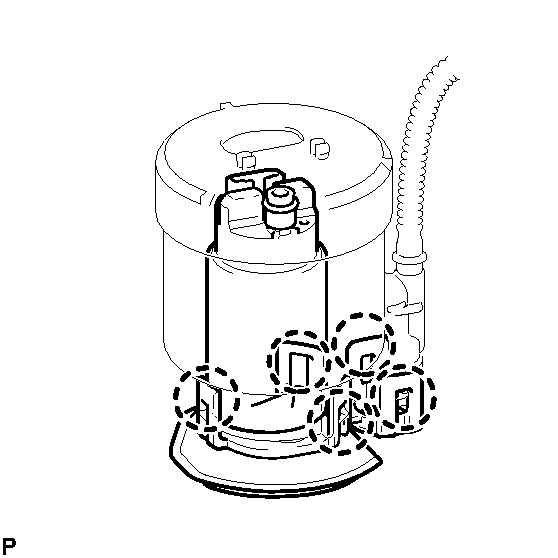

      Fig 6: Identifying Fuel Pump Filter And Fuel Pump With Fuel Filter
      GTY314155Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not damage the fuel pump filter.
      • Do not remove the suction filter.
      • Do not use either the fuel pump or the suction filter if the suction filter is removed from the fuel pump.
    7. Disconnect the fuel pump harness connector.

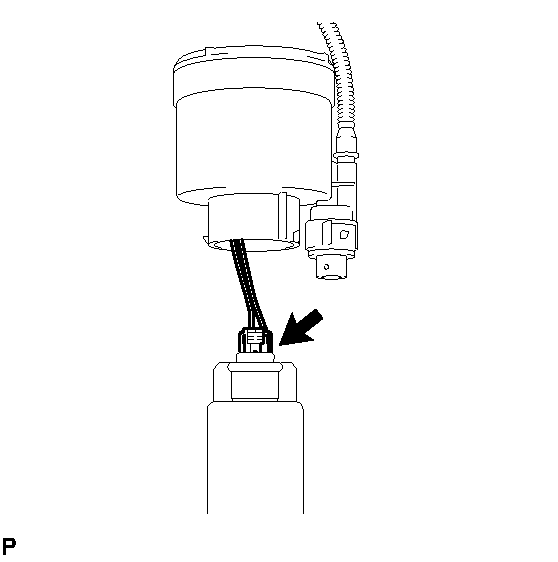

      Fig 7: Location Of Fuel Harness Connector
      GTY311855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Remove the O-ring and spacer from the fuel pump.

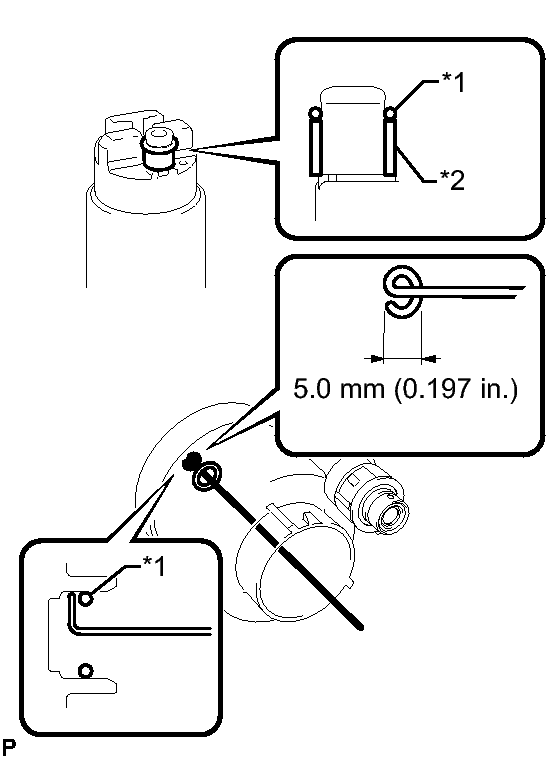

      Fig 8: Identifying O-Ring And Spacer With Fuel Pump
      GTY312587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 O-Ring
      *2 Spacer
      NOTE: Be careful not to damage the sealing surface.

      HINT:

      If the O-ring remains in the fuel filter, remove it using a wire (1.0 mm diameter) with its tip formed as shown.
