Operation Check

OPERATION DESCRIPTION
1. Entry ignition function:
  1. When the electrical key transmitter is in the detection area inside the vehicle and the brake pedal (for Automatic Transaxle) or clutch pedal (for Manual Transaxle) is depressed, the engine is started by pressing the engine switch.
  2. When the electrical key transmitter is in the detection area inside the vehicle and the brake pedal (for Automatic Transaxle) or clutch pedal (for Manual Transaxle) is not depressed, the power source mode is changed by pressing the engine switch. The power source mode changes in the following order every time the engine switch is pressed: off → on (ACC) → on (IG) → off.
  3. After getting into the vehicle while carrying the electrical key transmitter when the engine switch is off, if the engine switch is pressed while not depressing the brake pedal (for Automatic Transaxle) or clutch pedal (for Manual Transaxle), the power source mode changes to ACC and the engine switch indicator illuminates in amber.
  4. After getting into the vehicle while carrying the electrical key transmitter when the engine switch is off, if the brake pedal (for Automatic Transaxle) or clutch pedal (for Manual Transaxle) is depressed while the shift lever is in P or N (for Automatic Transaxle), the engine switch indicator illuminates in green.
  5. The engine starts if the engine switch is pressed when the engine switch indicator is illuminated in green.
2. Changing the power source mode when the electrical key transmitter does not operate correctly due to wave interference or electrical key transmitter battery depletion:
  1. Unlock the door using the built-in mechanical key and get into the vehicle while carrying the electrical key transmitter.
  2. While depressing the brake pedal (for Automatic Transaxle) or clutch pedal (for Manual Transaxle), hold the ornament side of the electrical key transmitter against the engine switch.
  3. When a buzzer sound is heard from the buzzer, release the brake pedal (for Automatic Transaxle) or clutch pedal (for Manual Transaxle) within 5 seconds. By pressing the engine switch while not depressing the brake pedal (for Automatic Transaxle) or clutch pedal (for Manual Transaxle), the power source mode changes in the following order every time the engine switch is pressed: off → on (ACC) → off.
3. Starting the engine when the electrical key transmitter does not operate correctly due to wave interference or electrical key transmitter battery depletion:
  1. Unlock the door using the built-in mechanical key and get into the vehicle while carrying the electrical key transmitter.
  2. While depressing the brake pedal (for Automatic Transaxle) or clutch pedal (for Manual Transaxle) with the shift lever in P or N (for Automatic Transaxle), hold the ornament side of the electrical key transmitter against the engine switch.
  3. When a buzzer sound is heard from the buzzer and the engine switch indicator illuminates in green, press the engine switch within 10 seconds while keeping the brake pedal (for Automatic Transaxle) or clutch pedal (for Manual Transaxle) depressed to start the engine.

CHECK ENTRY IGNITION FUNCTION

Check the entry ignition function.

With the engine switch off, move the shift lever to P, depress the brake pedal*1 or clutch pedal*2 while carrying the electrical key transmitter and check that the engine switch indicator illuminates in green. Then, with the engine switch indicator illuminated in green, press the engine switch and check that the engine starts.
- *1: for Automatic Transaxle
- *2: for Manual Transaxle
With the brake pedal released and the engine switch off, press the engine switch while carrying the electrical key transmitter and check that the power source mode changes as follows: off → on (ACC) → on (IG) → off. However, if the shift lever is in any position other than P while the engine switch is on (IG), the power source mode will not change to off, but to on (ACC).
Stop the vehicle, press the engine switch and check that the power source mode changes to off (the engine stops and all electrical systems are off). However, if the shift lever is in any position other than P, even if the engine switch is pressed while the vehicle is stationary, the power source mode will not change to off, but to on (ACC). Move the shift lever to P, open the door and check that the steering lock operates.

Inspect the entry ignition operating range (front). Place the electrical key transmitter on the front seat at either inspection point so that it is facing in the direction shown in the illustration and check that the engine can be started.

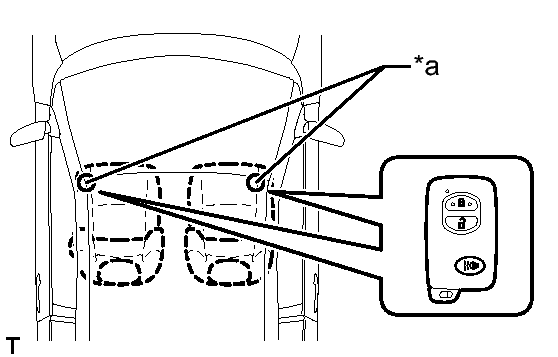

Fig 1: Electrical Key Transmitter Inspection Point

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	Inspection Point

NOTE:

Even if the electrical key transmitter is within the vehicle interior detection area, the electrical key transmitter may not be properly detected if it is on the instrument panel, in the glove box, in the rear seat cup holder or on the floor.
Communication may not be possible if the electrical key transmitter is within 0.2 m (0.66 ft.) of the shift lever.
The engine control system cannot be started when the electrical key transmitter is on the instrument panel or in the glove box.

HINT:

Perform the inspection for both inspection points.

Inspect the entry ignition operating range (rear). Place the electrical key transmitter on the rear seat at either inspection point so that it is facing in the direction shown in the illustration and check that the engine can be started.

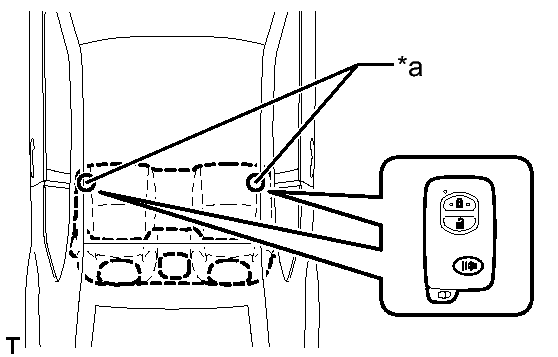

Fig 2: Electrical Key Transmitter Inspection Point

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	Inspection Point

NOTE:

Even if the electrical key transmitter is within the vehicle interior detection area, the electrical key transmitter may not be properly detected if it is on the instrument panel, in the glove box, in the rear seat cup holder or on the floor.
Communication may not be possible if the electrical key transmitter is within 0.2 m (0.66 ft.) of the center of the rear seat cushion.

HINT:

Perform the inspection for both inspection points.

Inspect the entry ignition operating range (luggage). Place the electrical key transmitter at either inspection point and check that the engine can be started.

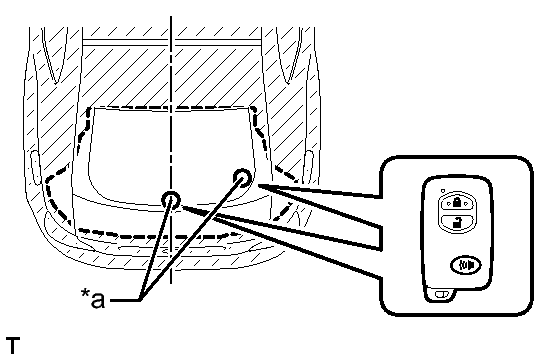

Fig 3: Electrical Key Transmitter Inspection Point

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	Inspection Point

NOTE:

Even if the electrical key transmitter is within the vehicle interior detection area, the electrical key transmitter may not be properly detected if it is on the instrument panel, in the glove box, in the rear seat cup holder or on the floor.
Communication may not be possible if the electrical key transmitter is within 0.2 m (0.66 ft.) of the center of the luggage compartment.

HINT:

Perform the inspection for both inspection points.

CHECK POWER SOURCE MODE CHANGING FUNCTION

Check the engine switch.

for Automatic Transaxle:

Check that the power source mode changes according to the chart below.

Shift Position	Brake Pedal	Power Source Mode when Engine Switch Pressed
P	Released	Off → on (ACC) → on (IG) → off
P	Released	Engine running → off
P	Released	On (ACC)* → off
P	Depressed	Off → engine starts
P	Depressed	On (ACC) → engine starts
P	Depressed	On (IG) → engine starts
P	Depressed	Engine running → off
P	Depressed	On (ACC)* → off
N	Released	Off → on (ACC) → on (IG) (after power source mode changes to on [IG], power source mode changes between on [IG] and on [ACC] every time engine switch is pressed)
N	Released	Engine running → on (ACC)
N	Depressed	Off → engine starts
N	Depressed	On (ACC) → engine starts
N	Depressed	On (IG) → engine starts
N	Depressed	Engine running → on (ACC)
Not P or N	Released	Off → on (ACC) → on (IG) (after power source mode changes to on [IG], power source mode changes between on [IG] and on [ACC] every time engine switch is pressed)
Not P or N	Released	Engine running → on (ACC)
Not P or N	Depressed	Off → on (IG)
Not P or N	Depressed	On (ACC) → on (IG)
Not P or N	Depressed	Engine running → on (ACC)

HINT:

*: This situation is only applicable when the power source mode has changed from on (IG) to on (ACC).

for Manual Transaxle:

Check that the power source mode changes according to the chart below.

Clutch pedal	Power Source Mode when Engine Switch Pressed
Released	Off → on (ACC) → on (IG) → off
Released	Engine running → off
Depressed	Off → engine starts
Depressed	On (ACC) → engine starts
Depressed	On (IG) → engine starts
Depressed	Engine running → off

CHECK POWER SOURCE MODE INDICATION

Fig 4: Checking Power Source Mode Indication Engine Switch

TEXT IN ILLUSTRATION

*1	Engine Switch
*2	Indicator Light

Check the engine switch indicator.

INDICATOR INSPECTION

Engine Switch	Indicator
Off (Excludes condition in which engine can be started)	Off
On (ACC) (Excludes condition in which engine can be started)	Illuminated in amber
On (IG) (Excludes condition in which engine can be started)	Illuminated in amber
Condition in which engine can be started*	Illuminated in green
Engine started	Off

HINT:

*: CONDITION IN WHICH ENGINE CAN BE STARTED IS AS FOLLOWS:

The engine can be started by pressing the engine switch when either of the following conditions is met.
Condition 1	All conditions are met: The key is verified* or the engine switch is on (ACC) or on (IG). The shift lever is in P or N (for Automatic Transaxle). The stop light switch (for Automatic Transaxle) or clutch pedal switch (for Manual Transaxle) is on.
Condition 2	All conditions are met: The power source mode has changed from on (IG) to on (ACC). The shift lever is in N (for Automatic Transaxle). The stop light switch (for Automatic Transaxle) or clutch pedal switch (for Manual Transaxle) is on.

*: When the electrical key transmitter is in the vehicle, the ID code sent as a result from communication between the electrical key transmitter and certification ECU (smart key ECU assembly) and the ID code calculated by the certification ECU (smart key ECU assembly) are compared. If the ID codes match each other, the vehicle recognizes that the electrical key transmitter is in the vehicle.

Indicator Condition Chart

Indicator	Vehicle State
Off	Either condition is met: The engine is running. The engine switch is off and the vehicle is in a state in which the engine does not start if the engine switch is pressed.
Illuminated in green	All conditions below are met and the vehicle is in a state in which the engine can be started if the engine switch is pressed: The electrical key transmitter is inside the vehicle, the stop light switch (for Automatic Transaxle) or clutch pedal switch (for Manual Transaxle) is on and the shift lever is in P or N (for Automatic Transaxle).
Illuminated in amber	The engine switch is on (ACC) or on (IG), and the vehicle is in a state in which the engine does not start if the engine switch is pressed.
Blinking in green (1 second intervals)	When the power is being turned on or the engine is being started, the steering fails to unlock (steering lock is stuck). The indicator starts blinking when the steering fails to unlock. The indicator stops blinking when 30 seconds elapse after blinking starts, or when the power is being turned on or the engine is being started again.
Blinking in amber (2 second intervals)	The steering lock ECU or the power source control ECU has an internal malfunction. The indicator starts blinking when the steering lock ECU or power source control ECU is determined to have an internal malfunction. The indicator stops blinking when the ECU returns to normal or 15 seconds elapse after blinking starts.
