Steering Angle Sensor: Installation: Installation
WARNING:
Some of these service operations affect the SRS airbag system. Read the precautionary notices concerning the SRS airbag system before servicing. Refer to PRECAUTION .
- INSTALL STEERING ANGLE SENSOR
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

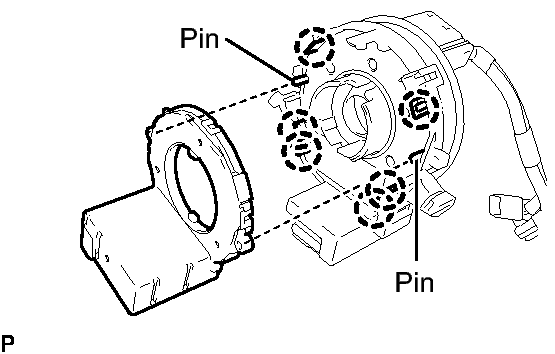

- Engage the 6 claws and insert the 2 pins into the holes to install the steering angle sensor onto the spiral cable.
- INSTALL SPIRAL CABLE . Refer to INSTALLATION - Step 2
- INSTALL STEERING COLUMN COVER . Refer to INSTALLATION - Step 11
- ADJUST SPIRAL CABLE . Refer to INSTALLATION - Step 4
- INSTALL STEERING WHEEL ASSEMBLY . Refer to INSTALLATION - Step 13
- INSTALL STEERING PAD . Refer to INSTALLATION - Step 1
- TURN FRONT WHEELS FACING STRAIGHT AHEAD
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)
- INSPECT SRS WARNING LIGHT
Refer to DIAGNOSIS SYSTEM
