Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER
1. The vehicle identification number is stamped on the vehicle body and on the certification label as shown in the illustrations.

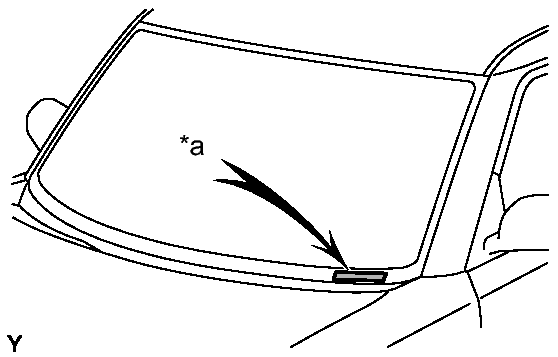

  Fig 1: Identifying Vehicle Identification Number (VIN) Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *a Vehicle Identification Number

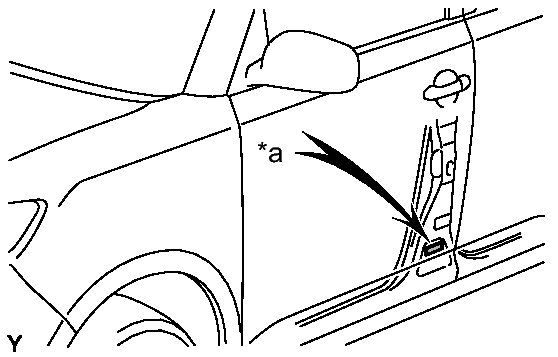

  Fig 2: Identifying Certification Label Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  TEXT IN ILLUSTRATION

  *a Certification Label

ENGINE SERIAL NUMBER AND TRANSAXLE SERIAL NUMBER

The engine serial number is stamped on the cylinder block of the engine and the transaxle serial number is stamped on the housing as shown in the illustrations.

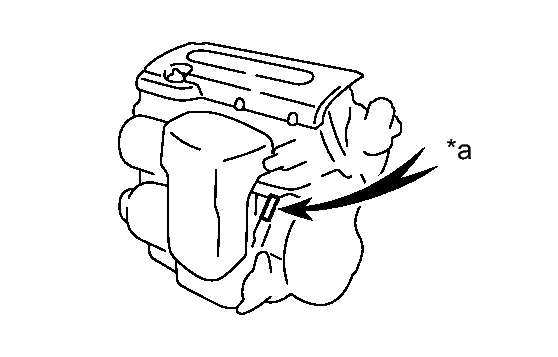

Fig 3: Identifying Engine Serial Number

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

TEXT IN ILLUSTRATION

*a	Engine Serial Number

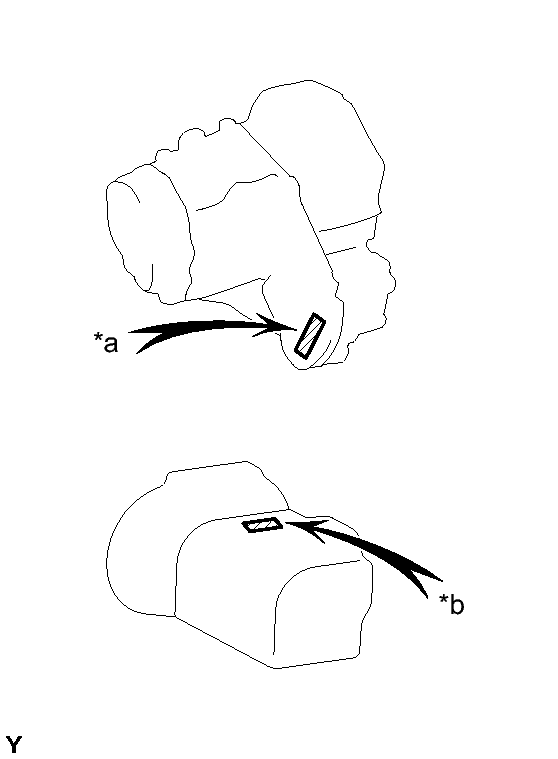

Fig 4: Identifying Transaxle Serial Number

TEXT IN ILLUSTRATION

*a	Transaxle Serial Number (E351)
*b	Transaxle Serial Number (U241E)
