Fuel Tank: Components: Illustration

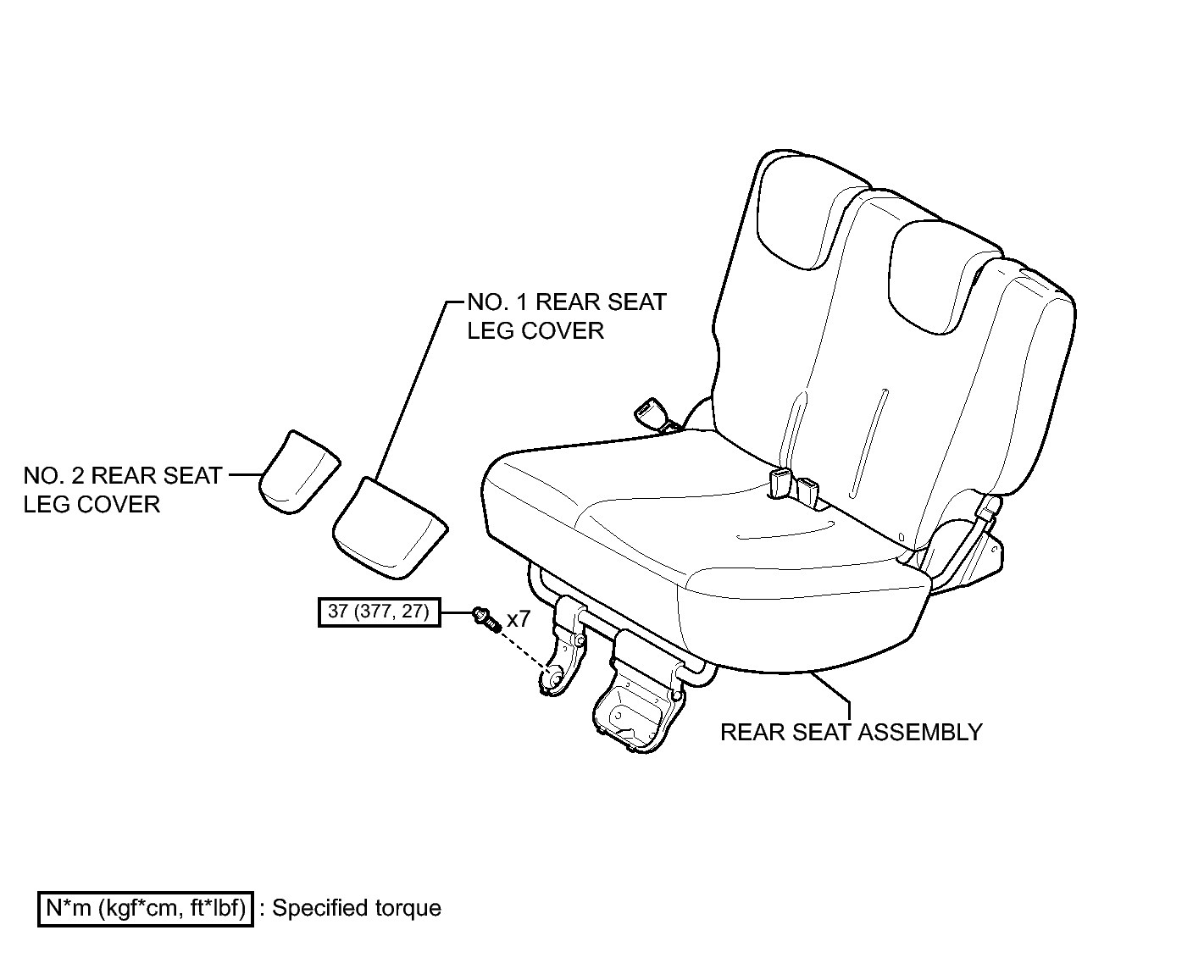

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (1 Of 3)
GTY384962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

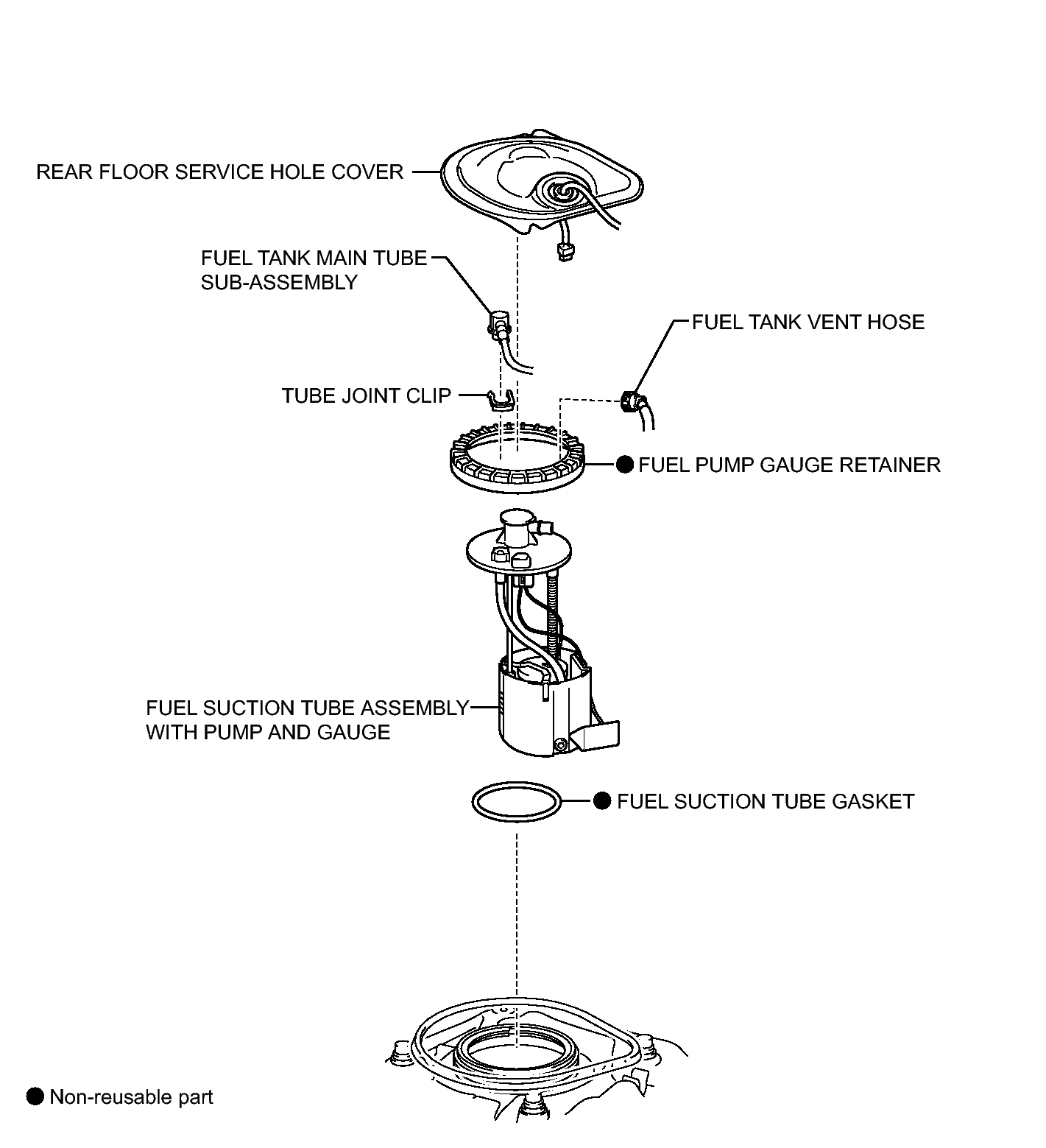

Fig 1: Identifying Fuel Tank Replacement Components (2 Of 3)
GTY385151Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

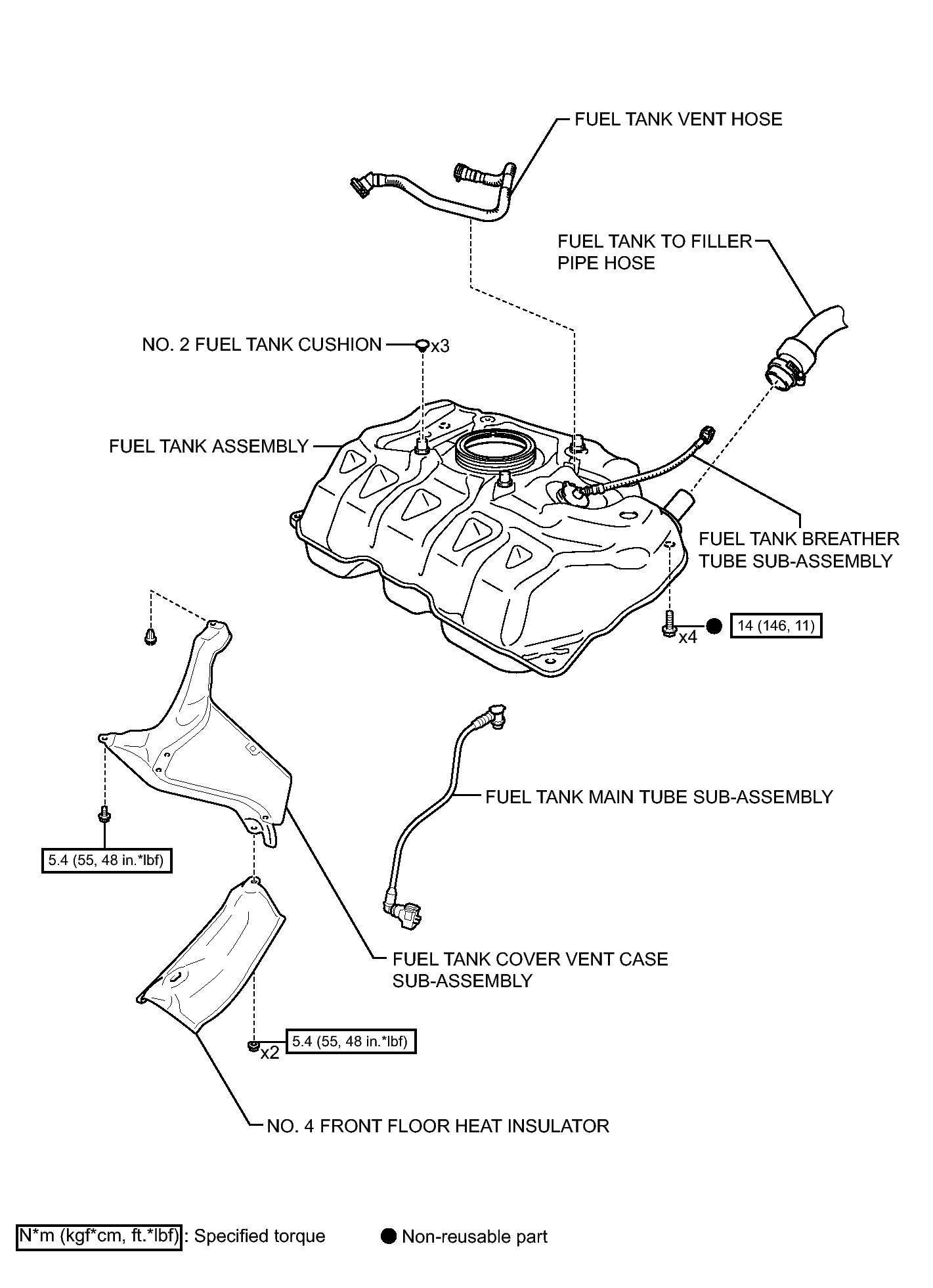

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (3 Of 3)
GTY385180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
