Components [07/2013 - 12/2013]: Illustration

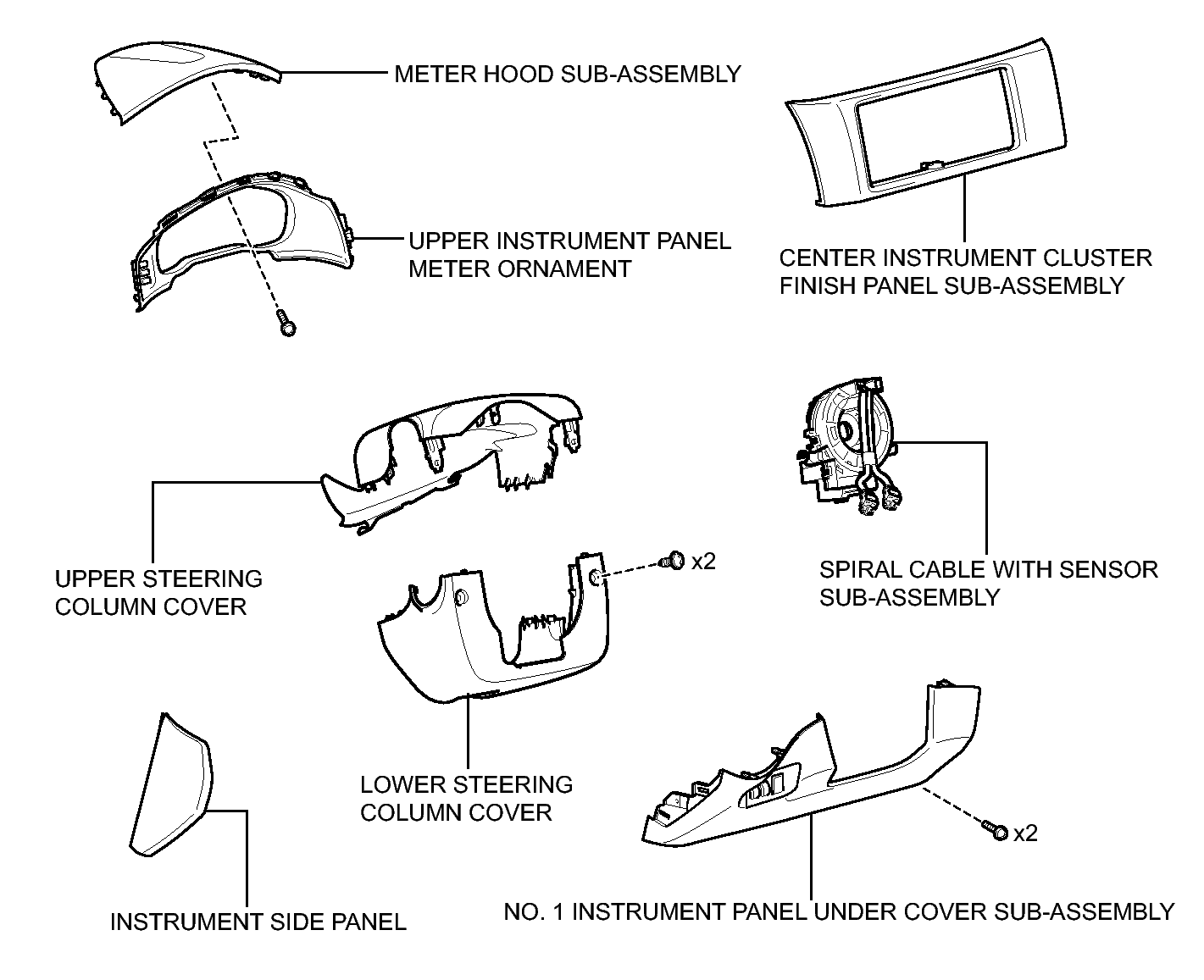

Fig 1: Identifying Steering Angle Sensor Replacement Components (1 Of 4)
GTY388688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Steering Angle Sensor Replacement Components (2 Of 4)
GTY392306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
