Heated rear window, function - GF67.29-P-0003MCC

MODEL 451.3 /4

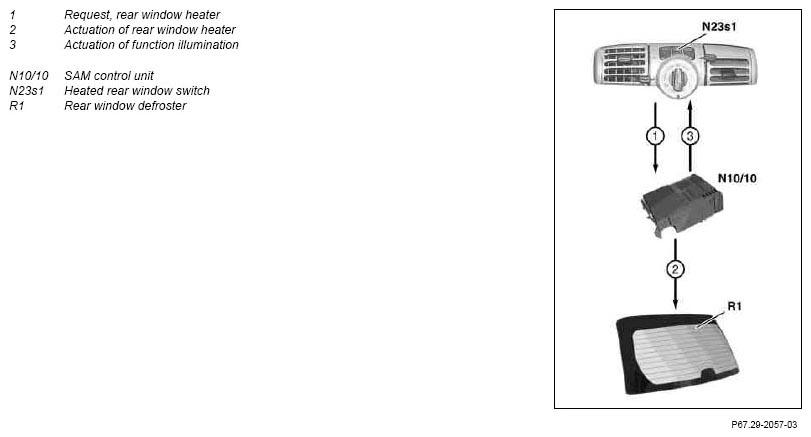

Fig 1: Heated Rear Window Function Diagram

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Function requirements:

Function

Actuation of the rear window heater switch is directly read in by the SAM control unit.

The SAM control module then supplies power to the heated rear window, for 10 min.

The integrated LED provides a status feedback message via the rear window heater switch.

Actuating the rear window heater switch again before expiration of the heating period deactivates the rear window heater.

Heated rear window (HRW), location of components		GF67.29-P-0003-01MCC
Electric wiring diagram for heated rear window	* not for USA	PE67.29-P-2000MCC
	* for USA only	PE67.29-P-2000MCU
SAM control unit, component description	N10/10 * not for USA	GF54.21-P-4157MCC
	* for USA only	GF54.21-P-4157MCU
Component description for the heater/air conditioning operating unit	N23 Vehicles without code (I01) Air conditioning Plus	GF83.40-P-3001MCC
	Vehicles with code (I01) Air conditioning Plus * not for USA	GF83.40-P-3001MCD
	Vehicles with code (I01) Air conditioning Plus * for USA only	GF83.40-P-3001MCU
