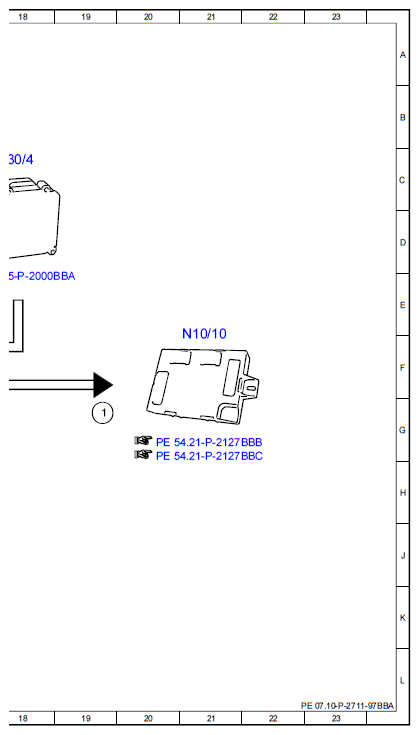

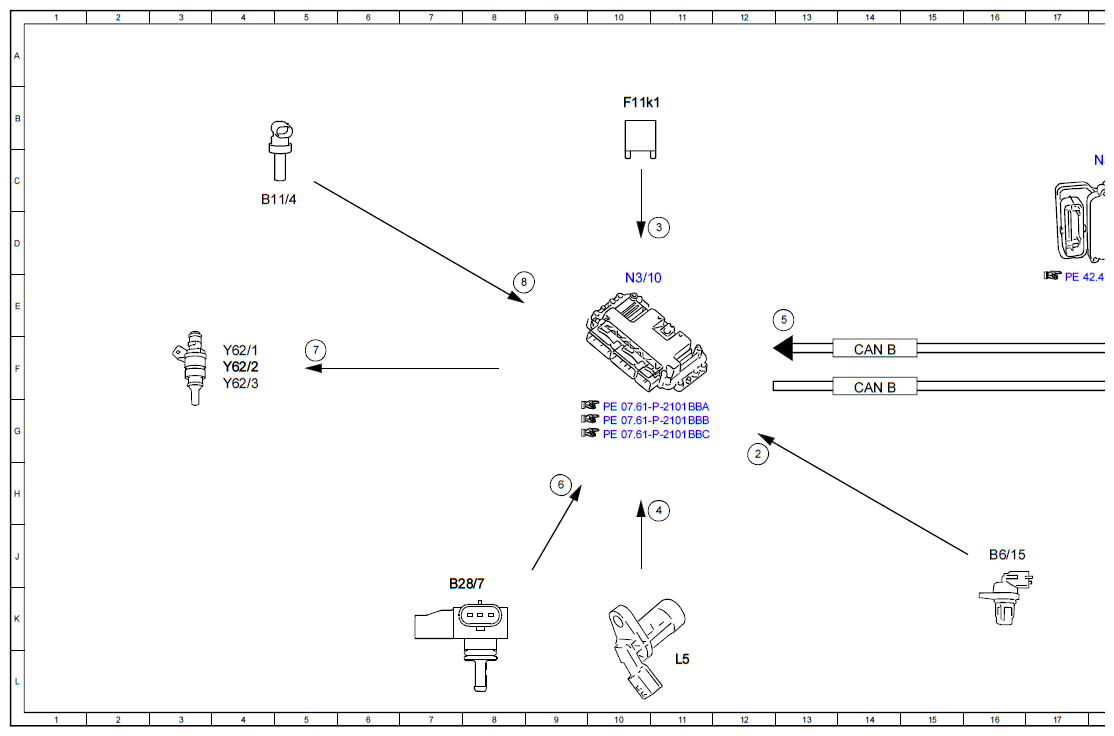

Electrical Function Schematic For Smooth Running Control - PE07.10-P-2711-97BBA
ENGINE 281.910 in MODEL 453.0/3/4
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Engine running, signal | 19G |
| 2 | Camshaft Hall sensor, signal | 12G |
| 3 | Circuit 87, status | 11D |
| 4 | Engine speed, signal | 11H |
| 5 | Wheel speed, signal | 13E |
| 6 | Engine load, signal | 9H |
| 7 | Injection valves, actuation | 5F |
| 8 | Coolant temperature sensor, signal | 9E |
| B11/4 | Coolant temperature sensor | 4C |
| B28/7 | Pressure sensor downstream of throttle valve | 7K |
| B6/15 | Intake camshaft Hall sensor | 16J |
| CAN B | Interior CAN | 14F |
| CAN B | Interior CAN | 14F |
| F11k1 | Engine function circuit 87 relay | 10B |
| L5 | Crankshaft position sensor | 11L |
| N10/10 | Center SAM control unit | 21F |
| N3/10 | ME-SFI [ME] control unit | 10E |
| N30/4 | Electronic Stability Program control unit | 18C |
| Y62/1 | Cylinder 1 injection valve | 4F |
| Y62/2 | Cylinder 2 injection valve | 4F |
| Y62/3 | Cylinder 3 injection valve | 4F |
