Overview Of System Components Of Comfort Heating Systems - GF91.30-P-9990KJ
MODEL 453.0 (except 453.091), 453.3 (except 453.391), 453.4 (except 453.491)
with CODE 873 (Seat heating for driver and front passenger)
MODEL 453.091/391/491
with CODE 873 (Seat heating for driver and front passenger) except code U14 (Climate package)

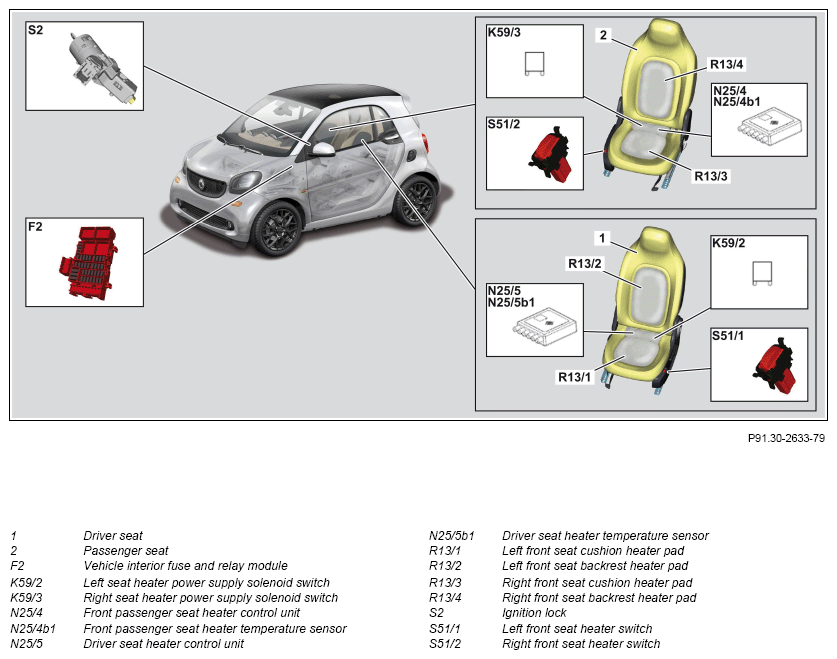

Shown on Model 453.3 left-hand drive vehicle
The respective seat heater control unit and the respective seat heater power supply solenoid switch are part of the respective front seat cushion heater pad or the respective wiring harness in the front seat cushion heater pad. The seat heater control unit and the seat heater power supply solenoid switch cannot be exchanged separately.
