Overview Of System Components Of Comfort Heating Systems - GF91.30-P-9990KJE
MODEL 453.091/391/491
with CODE U14 (Climate package)

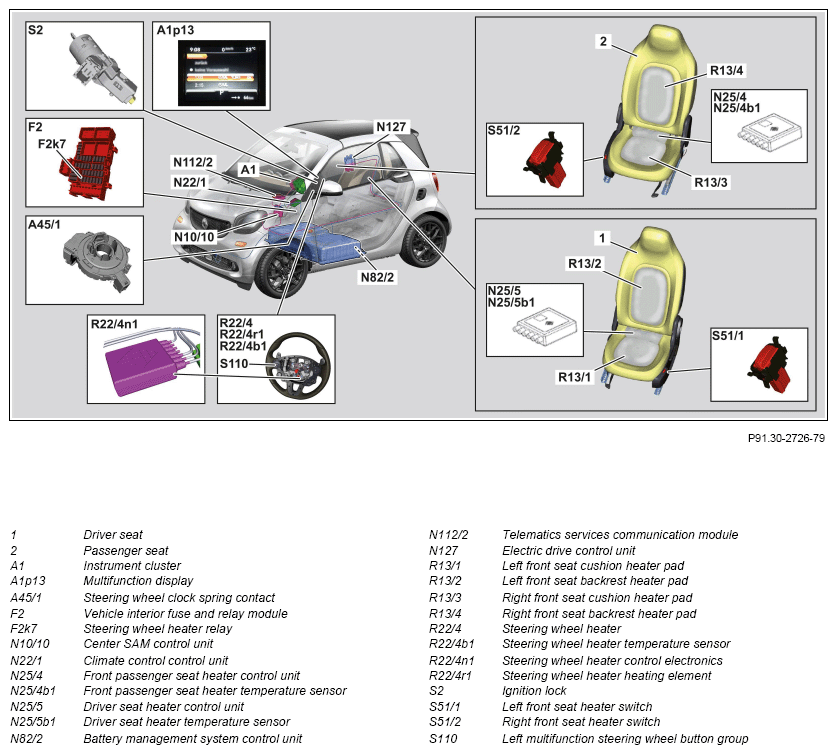

Front seat heater and steering wheel heater, shown on Model 453.4 Left-hand drive vehicle
The respective seat heater control unit is a constituent of the respective front seat cushion heater pad and the respective wiring harness in the front seat cushion heater pad. The seat heater control unit cannot be replaced separately. The steering wheel heater is a constituent of the steering wheel and cannot be replaced separately.

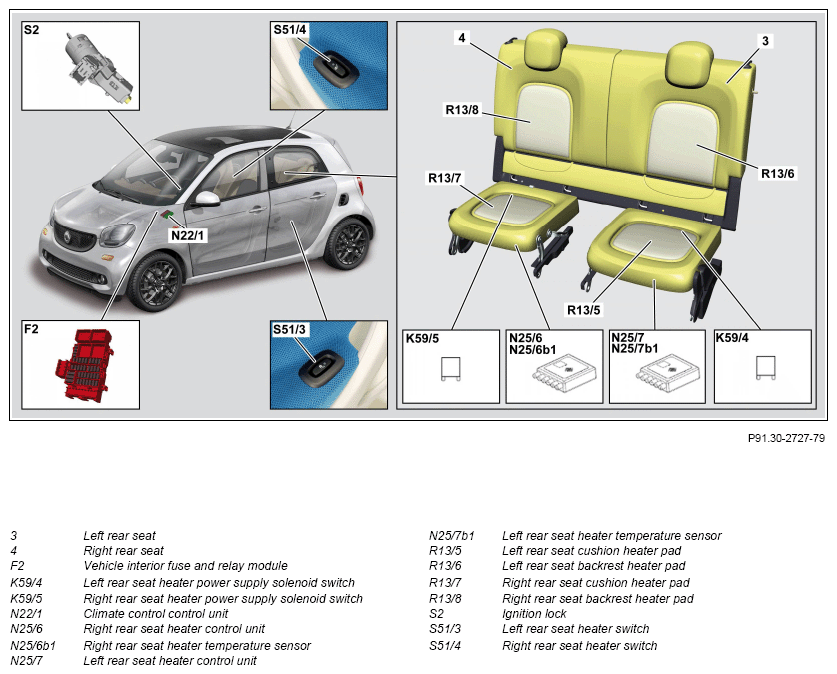

Rear seat heater (only Model 453.0 with code U14 (A/C package)
The respective seat heater control unit and the respective seat heater power supply solenoid switch are part of the respective rear seat cushion heater pad or the respective wiring harness in the rear seat cushion heater pad. The seat heater control unit and the seat heater power supply solenoid switch cannot be exchanged separately.
| Component description for instrument cluster | Model 453.091/391/491 with code K35 (Instrument cluster with monochrome display) or with code K36 (Instrument cluster with 8.9 cm (3.5") color display) A1, A1p13 |
GF54.30-P-6000KJE | |
| Climate control unit, component description | Model 453.091/391/491 with code I01 (Automatic air conditioning) N22/1 |
GF83.40-P-2250KJE | |
| Component description for battery management system control unit | Model 453.091/391/491 with engine 780 N82/2 | GF54.10-P-3012KJE | |
| Telematics services communications module, component description | Model 453.091/391/491 with code 535 (smart media system) N112/2 |
GF82.85-P-0220KJ | |
| Component description for electric drive control unit | Model 453.091/391/491 with engine 780 N127 | GF08.20-P-3001KJE | |
| Table of contents for function description of comfort heating systems | GF91.30-P-0999KJE |
