Remove/Install Electric Controller Unit For Distance Warning Function With Active Brake Intervention - AR30.30-P-0017SR
MODEL 453
with CODE 258 (Active Brake Assist System)
Shown on model 453.3
Shown on model 453.3
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on preventing damage to electronic components due to a magnetic tool | AH54.00-P-0002-01A | ||
| Remove | |||

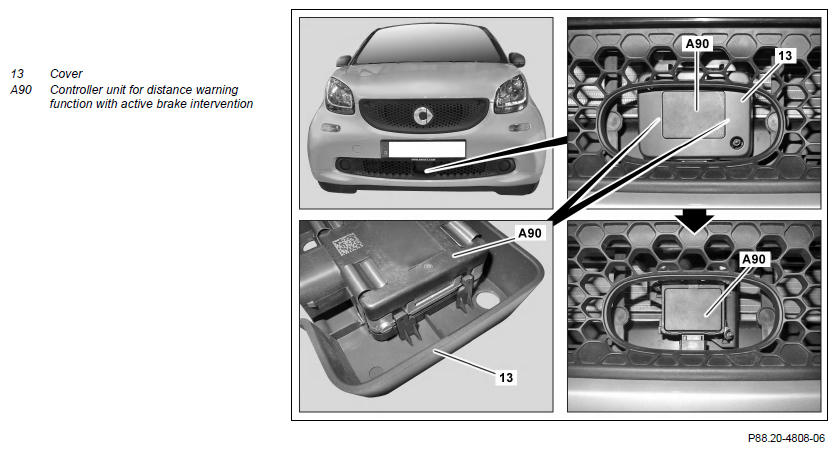

| 1 | Unclip the cover (13) and remove | with code 258 (Active Brake Assist System) Pull bumper above the cover (13) slightly forward. |
|

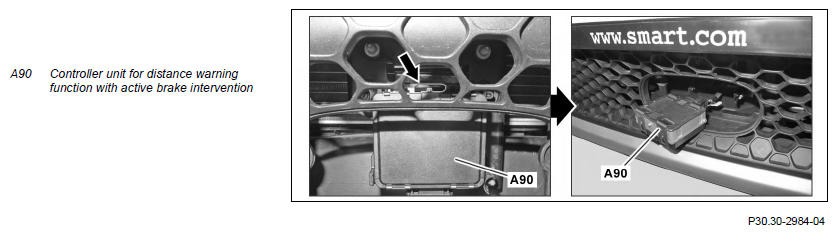

| 2 | Raise the notch lever (arrow) using a suitable screwdriver, fold the controller unit for distance warning function with active brake intervention (A90) forwards and remove from the guides | ||
| 3 | Separate electrical connector of controller unit for distance warning function with active brake intervention (A90) | ||
| Install | |||
| 4 | Clean contact surfaces of controller unit for distance warning function with active brake intervention (A90) and their mount | ||
| 5 | Connect electrical connector of controller unit for distance warning function with active brake intervention (A90) | ||
| 6 | Place controller unit for distance warning function with active brake intervention (A90) in lower guides, fold backwards and click into place | ||
| 7 | Check/adjust alignment of controller unit for distance warning function with active brake intervention (A90) | AR30.30-P-0017-01SR | |
| Fig 1 | |||
| 8 | Clip in cover (13) | with code 258 (Active Brake Assist System) Pull bumper above controller unit for distance warning function with active brake intervention (A90) forward slightly. |
|
| 9 |
Perform a commissioning of the controller unit for distance warning function with active brake intervention (A90) with diagnosis system | When replacing the controller unit for distance warning function with active brake intervention (A90). | AD00.00-P-2000-06SR |
| 10 |
Perform calibration drive with vehicle diagnosis system | If the controller unit for distance warning function with active brake intervention (A90) has been reused and readjusted. | AD00.00-P-2000-06SR |
