Remove/Install Seat Occupancy Recognition Sensor - AR91.60-P-0720SR

MODEL 453

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove seat cushion from front passenger seat		AR91.10-P-3310SR

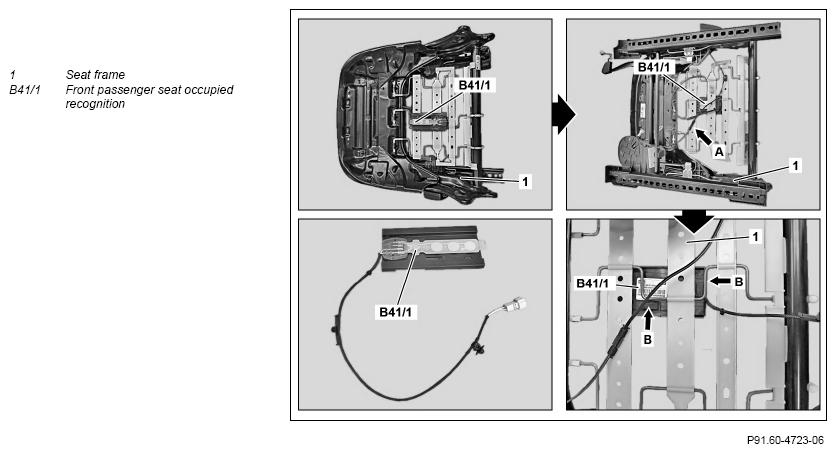

2	Unclip electric subharness for front passenger seat occupancy recognition (B41/1) from seat frame (1) (arrow A)	Clip remover	Figure
3	Unclip front passenger seat occupancy recognition (B41/1) from seat frame (1) (arrows B) and remove
4	Install in the reverse order

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
