HITACHI Regulator: Application

Model Hitachi No.
Datsun
  200SX & 710 TLIZ-82B
  B210 & 810 TLIZ-82C
  620 Pickup, 280Z & F10 TLIZ-85C
LUV TLIZ-87
Subaru TLIZ-94

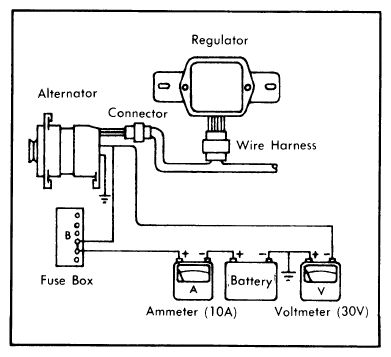

Fig 1: 1 Test Connections for Voltage Regulator
G09362783Courtesy of NOT AVAILABLE
